STR-DH510
1111

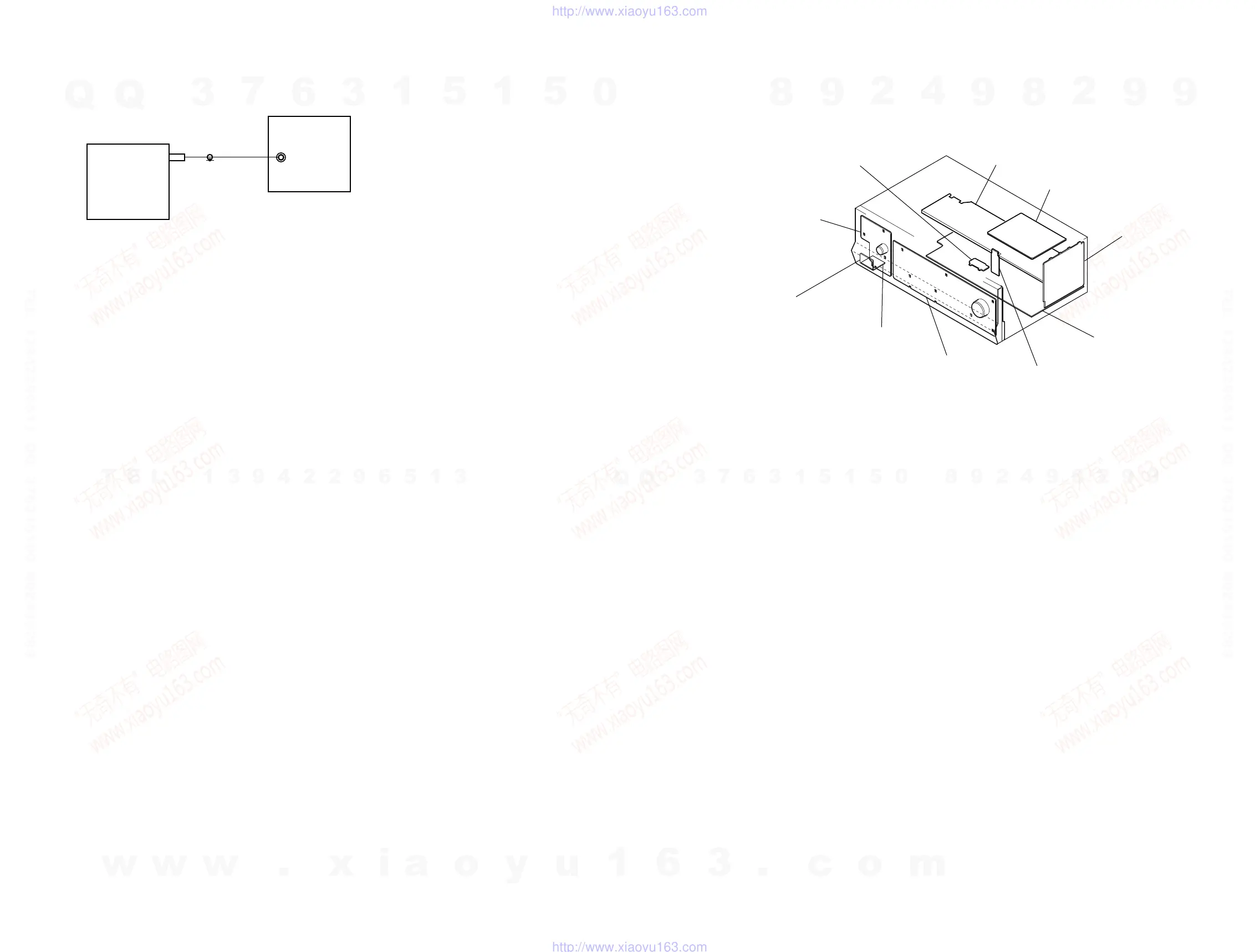

FM AUTO STOP CHECK
generator
OUT (75 Ω)
set
Procedure:
1. Turn on the set.
2. Input the following signal from Signal Generator to FM
antenna input directly.
* Carrier Frequency: A=87.5 MHz, B=98 MHz, C=108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note:
Please use 75 ohm “coaxial cable” to connect SG and the set. You
cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.
3. Set to FM tuner function and scan the input FM signal with
automatic scanning.
4. Confi rm that input Frequency of A, B and C are detected and
automatic scanning stops.
The stop of automatic scanning means “The station signal is
received in good condition.”
SECTION 3
FM TUNER CHECK
SECTION 4
DIAGRAMS
• Circuit Boards Location
CONNECTION board
MAIN board
HEADPHONE board
POWER KEY board
DISPLAY board
HDMI PC board
VIDEO STANDBY board
TEMP-SENSOR board
DIGITAL board
HP SUPPORT board
