STR-DH510
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• Abbreviation
CND : Canadian model
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.

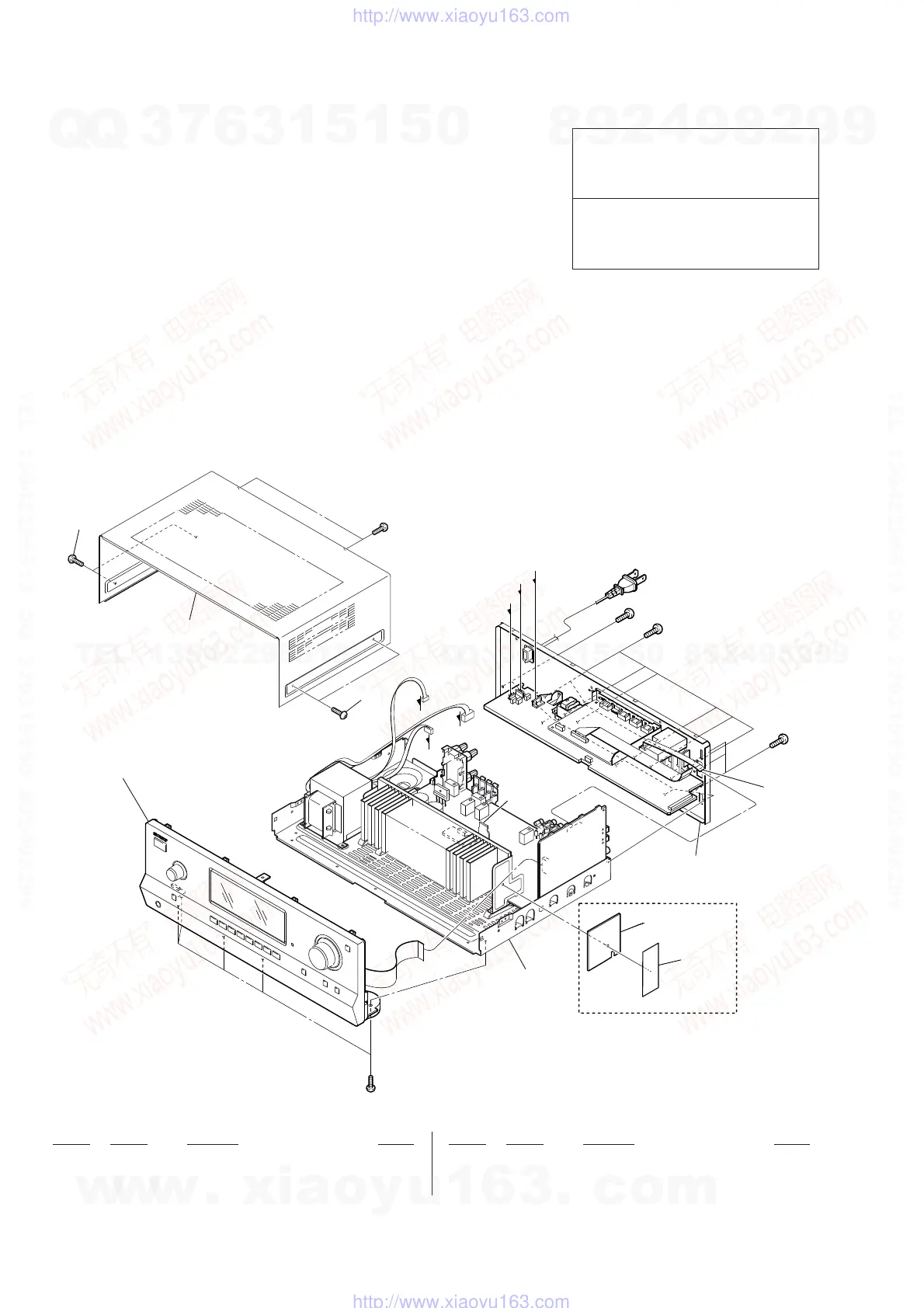

5-1. CASE SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
#1
A
B
C
#1
1
2
2
front panel section
chassis section
back panel section
#1
#1
#1
3
not supplied
(for Canadian model only)
A
B
C
not supplied
CONNECTION
board
4
1 4-160-845-31 CASE
2 2-580-630-01 SCREW, +BVST 4X8
3 1-828-954-51 WIRE (FLAT TYPE) (9 CORE)
4 3-831-441-11 CUSHION, SARANET (CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
