STR-DH510
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

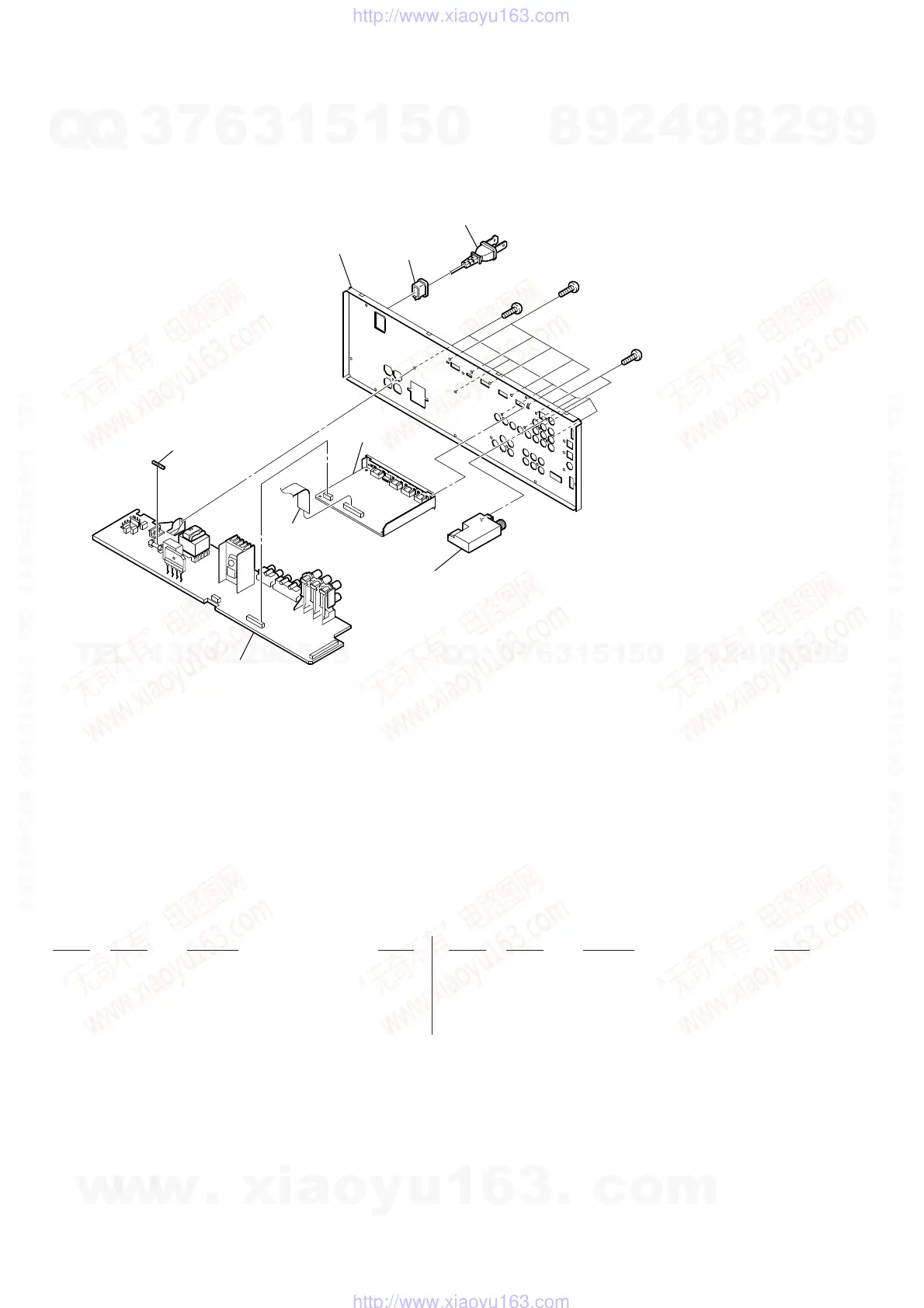

5-3. BACK PANEL SECTION
#1
#1
not supplied
103
#1
105
102
101
104
TN1
F901
101 1-828-621-51 WIRE (FLAT TYPE) (19 CORE)
102 4-966-267-12 BUSHING (FBS001), CORD
0
103 1-834-270-11 CORD, POWER
104 A-1747-308-A VIDEO STANDBY BOARD, COMPLETE
9
105 A-1745-656-A HDMI PC BOARD, COMPLETE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
0
F901 1-533-311-12 FUSE, GLASS (DIA.5) 8A 125V
TN1 1-693-779-11 TUNER (FM/AM)
