Sony STR-DH510 Service Manual

STR-DH510
5
SECTION 1
DISASSEMBLY
Note: This set can be disassemble according to the following sequence.
1-4. DIGITAL BOARD
(Page 7)
1-5. MAIN BOARD SECTION
(Page 7)
1-1. CASE
(Page 5)
1-2. BACK PANEL SECTION
(Page 6)
1-3. FRONT PANEL SECTION
(Page 6)
SET
Note: Follow the disassembly procedure in the numerical order given.

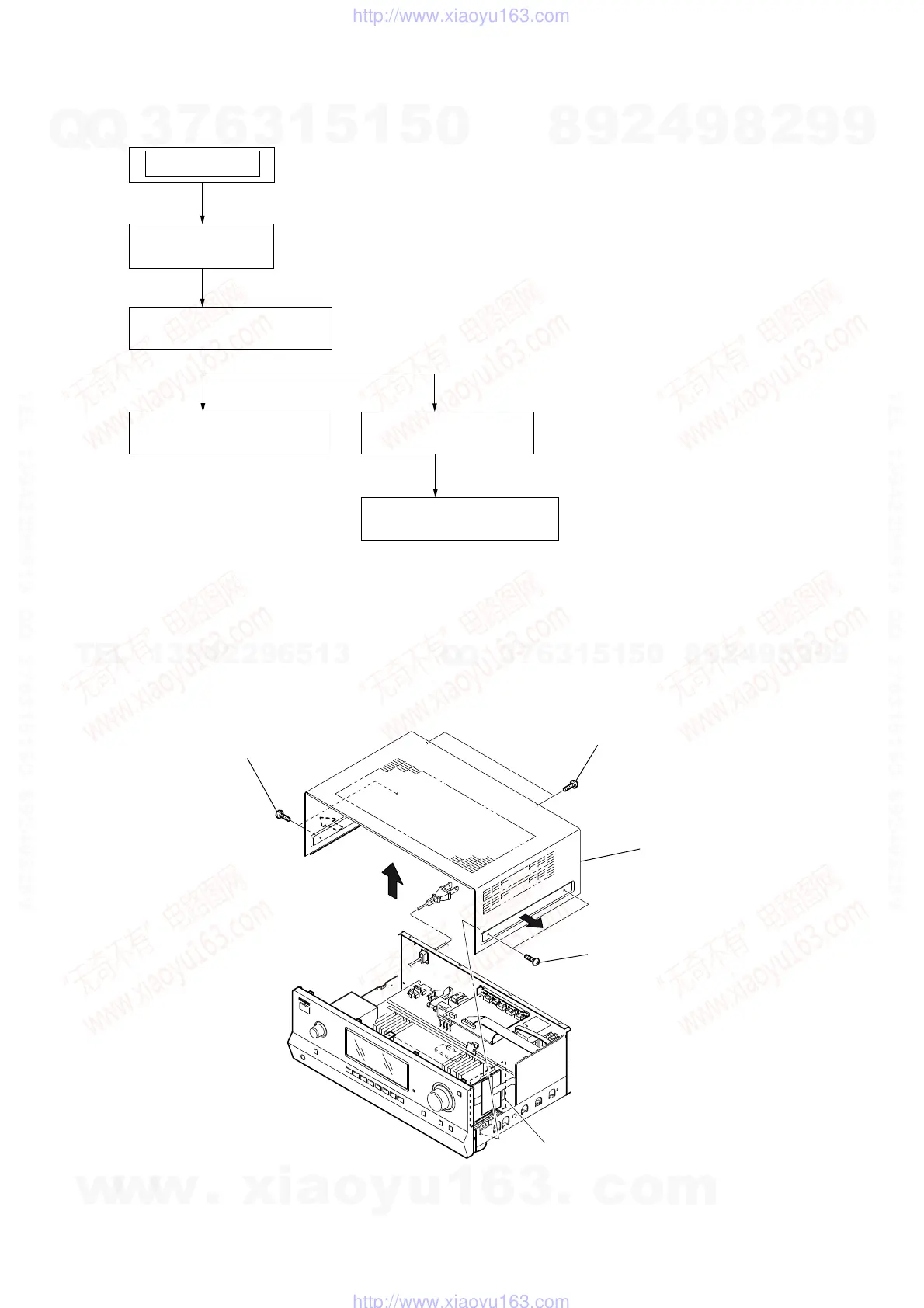

1-1. CASE
1 two screws
3 two screws
(+BVTP 3 u 8)
4 case
2 two screws
(for Canadian model only)
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony STR-DH510 Specifications

General

AirPlay	No
Display	VFL
Equalizer	Yes
Product color	Black
Audio decoders	Dolby Digital, Dolby Pro Logic II, dts
Apple docking compatibility	Not supported
Impedance	8 Ω
Receiver type	Surround
Frequency range	20 - 20000 Hz
RMS rated power	500 W
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	3
Digital audio optical in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
Headphone connectivity	3.5 mm
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Power consumption (standby)	0.3 W
Power consumption (typical)	230 W

Weight and Dimensions

Depth	322 mm
Width	430 mm
Height	157.5 mm
Weight	7400 g
