This is a control expansion terminal for custom installation.
[125] Parts and Controls Receiver

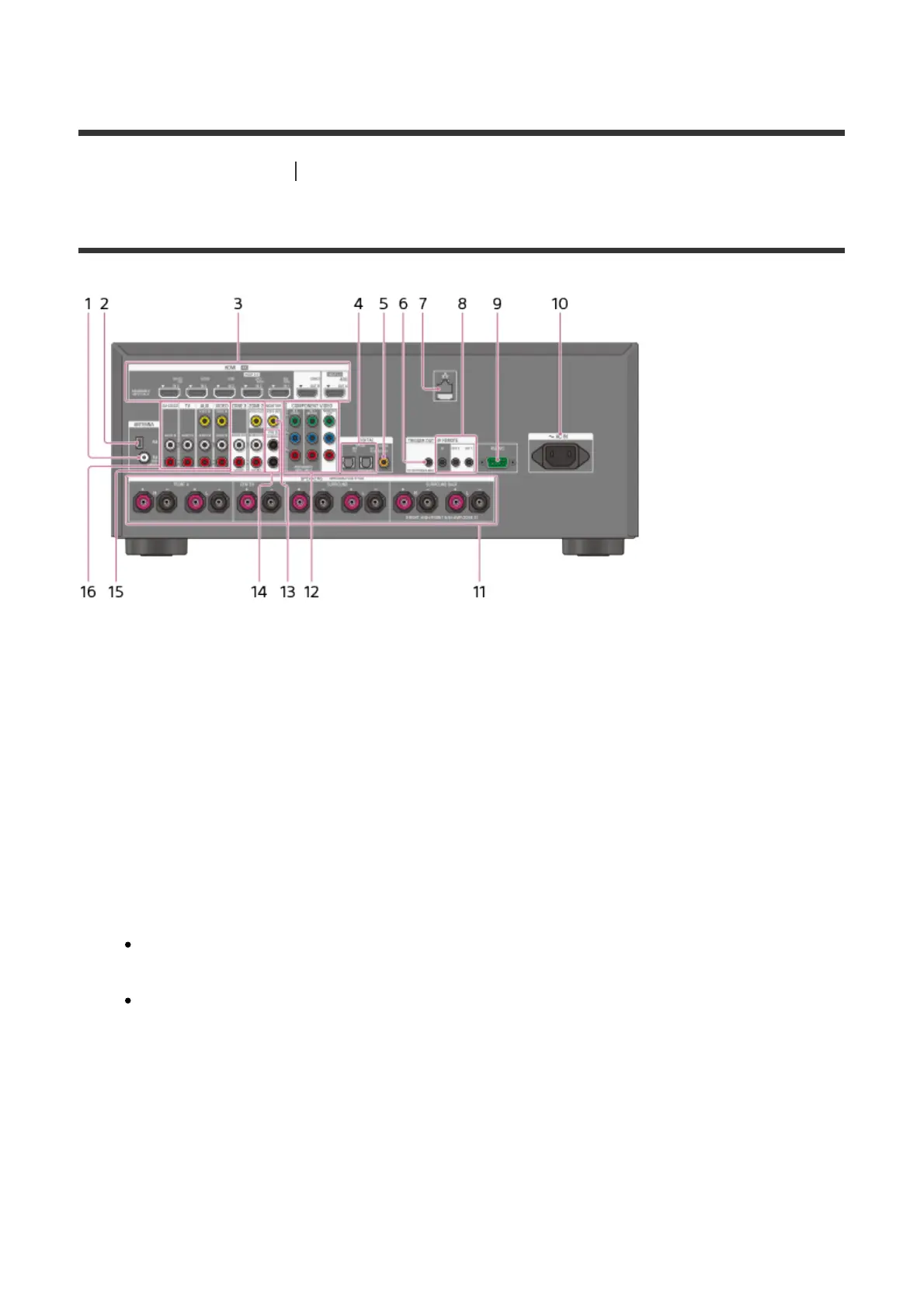

Rear panel (STR-ZA2000ES/STR-ZA1000ES)
1. FM ANTENNA terminal
2. AM ANTENNA terminal
3. HDMI IN/OUT (*1) jacks
4. DIGITAL OPTICAL IN jacks
5. DIGITAL COAXIAL IN jack
6. TRIGGER OUT jacks
Connect to interlock on/off of the power supply of other 12V TRIGGER compliant
equipment, or the amplifier/receiver of zone 2 or zone 3.
7. LAN port (*2)
8. IR REMOTE IN/OUT jacks
You can control the receiver from a distance by connecting an IR repeater (not
supplied) to the IR REMOTE IN jack.
You can start or stop playback of devices such as a CD player connected to the
receiver by connecting an IR Blaster (not supplied) to the IR REMOTE OUT jack.
9. RS232C port (*2)
10. AC IN terminal
Connect the supplied AC power cord (mains lead).
11. SPEAKERS terminals
12. COMPONENT VIDEO IN/OUT (*1) jacks
13. MONITOR VIDEO OUT (*1) jack
14. PRE OUT SUBWOOFER OUT jacks
