Configuring the System Board
The system board contains a CMOS Clear configuration jumper, and two
sets of reserved jumper blocks (do not change).
The CMOS and Non-Volatile RAM (NVRAM) settings are only cleared if
the checksum test returns false. Access to specific setup fields is
controlled by a supervisor password or user password.
The Clear CMOS mode removes the password that is stored in CMOS. No
other parameters are cleared.
1
Remove the cover (see “Removing the Cover” on page 22).
2
Set the jumpers as directed by a service technician (also see
“Configuration Jumper” on page 69).
3
Reinstall the cover (see “Replacing the Cover” on page 27).
4
Reinstall the front panel (see “Replacing the Front Panel” on page 26).
✍
The configuration jumpers should never need changing unless otherwise directed by a
technical support or service technician.
!
Before opening the system, save any open files, exit the Microsoft
®
Windows
®
operating system, turn off the power of the computer and all
attached peripherals, and unplug the power cord.
OM04588.VSD

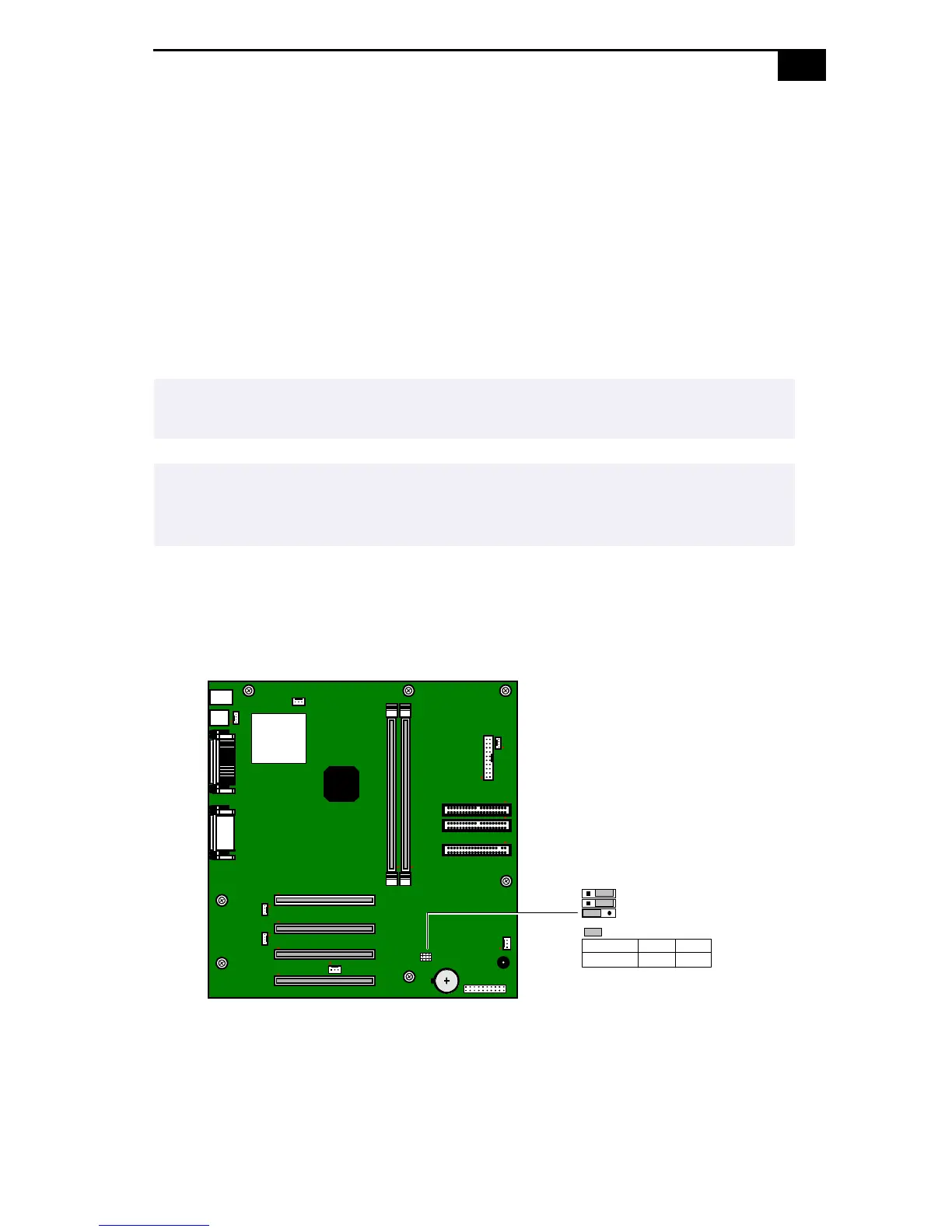

CMOS Clear
Clear
2-3
Normal
1-2
= default jumper
13
CMOS CLR
2
Reserved (do not change)
Reserved (do not change)

Sony VAIO PCV-R553DS Specifications

Processor and Memory

processor type	Intel Pentium III
processor speed	650 MHz
cache memory	128 KB
standard RAM	128 MB
maximum RAM	256 MB

Storage

hard drive capacity	30 GB
DVD-ROM speed	16X max.
CD-ROM speed	40X max.
CD-R write speed	8X max.
CD-RW write speed	4X max.

Power

power requirements	100-120V -3A (50/60Hz)
power management standard	ACPI 1.0 Compliant
advanced power management	APM version 1.2

Dimensions and Weight

width	8.6 inches
height	14 inches
depth	15.5 inches
weight	27.5 lbs
