Sony VAIO PCV-R553DS User Manual

Removing, Installing, and Replacing Components
29
Installing an Add-In Card
1
Remove the cover (see “Removing the Cover” on page 22).
2
Locate an available expansion slot connector.
3
Remove the slot cover adjacent to the selected slot connector (see
“Removing a Slot Cover” on page 40).
4
Insert the add-in card into the PCI slot connector. Use a gentle
rocking motion, pressing down until the card is fully seated.
5
Replace the screw that secures the card.
6
Attach any necessary cables to the card (see the instructions that came
with the add-in card).
7
Replace the cover (see “Replacing the Cover” on page 27).
8
Turn on the computer and follow any instructions that came with the
add-in card.
!
Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.
✍

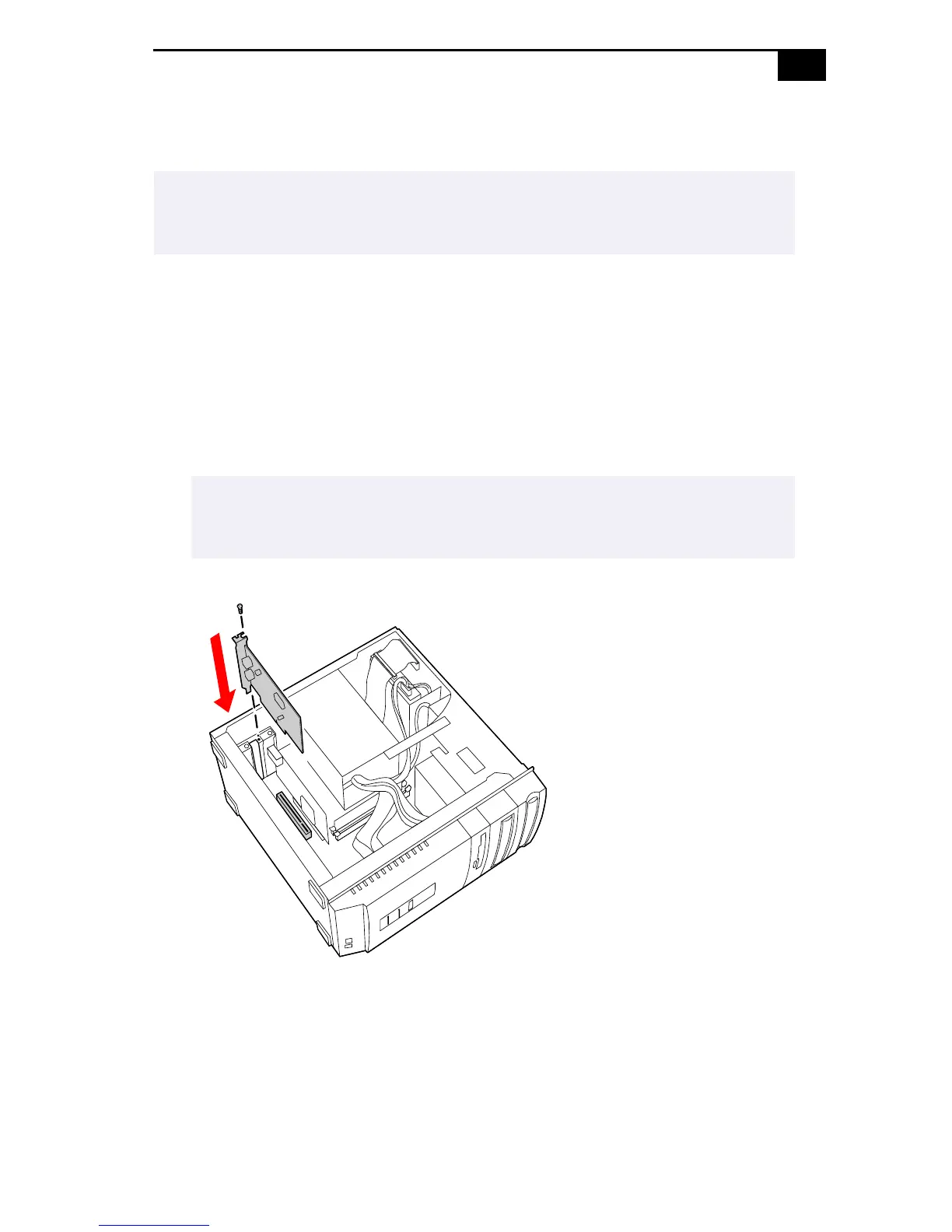

Align the card's bracket so that the bottom of the bracket fits into the slot at the
bottom of the chassis. Ensure that the top of the bracket fits snugly against the
chassis lip after the card is fully inserted.
KY0070.VSD

Sony VAIO PCV-R553DS Specifications

Processor and Memory

processor type	Intel Pentium III
processor speed	650 MHz
cache memory	128 KB
standard RAM	128 MB
maximum RAM	256 MB

Storage

hard drive capacity	30 GB
DVD-ROM speed	16X max.
CD-ROM speed	40X max.
CD-R write speed	8X max.
CD-RW write speed	4X max.

Power

power requirements	100-120V -3A (50/60Hz)
power management standard	ACPI 1.0 Compliant
advanced power management	APM version 1.2

Dimensions and Weight

width	8.6 inches
height	14 inches
depth	15.5 inches
weight	27.5 lbs
