Sony VAIO PCV-R553DS User Manual

VAIO Digital Studio™ Reference Manual
52
Connectors
Front Panel Header (J25)
The front panel header is a 20-pin header (1 pin is removed for the key)
that provides connections to various front panel functions. A 20-pin
connector with only eight wires is used to interface the system board to
the front panel.
Name Description
SPEAKER (not used)
PWR LED Connects to the power-on indicator light on the front panel
HD LED Connects to the hard disk drive access light on the front panel
SLEEP (not used)
PWR Connects to the power-on switch on the front panel
RESET (not used)
MSG LED Connects to the standby indicator light on the front panel.
KY0031.VSD

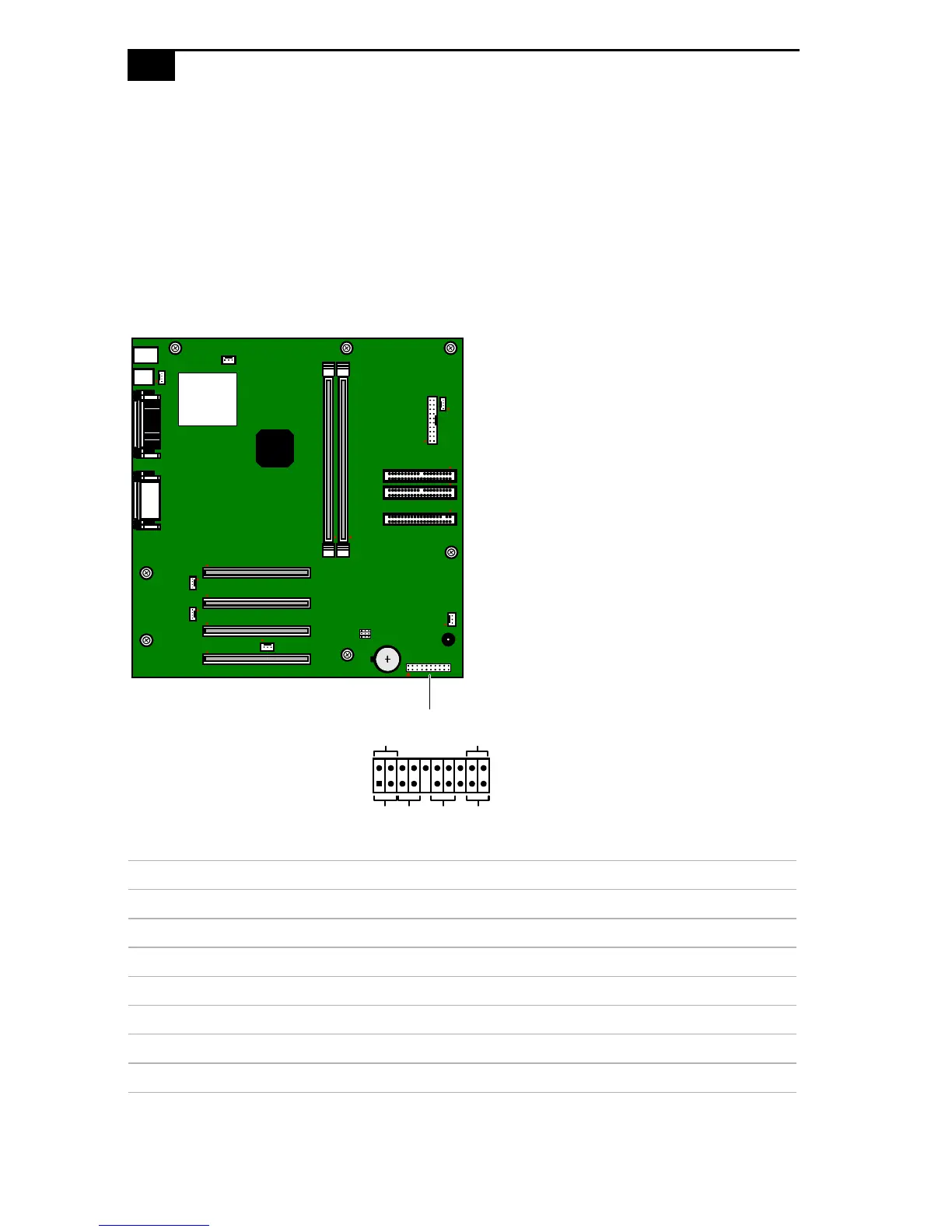

Front panel header
PWR
HD
LED
RESET
MSG
LED
SPKR
(not used)
PWR
LED

Sony VAIO PCV-R553DS Specifications

Processor and Memory

processor type	Intel Pentium III
processor speed	650 MHz
cache memory	128 KB
standard RAM	128 MB
maximum RAM	256 MB

Storage

hard drive capacity	30 GB
DVD-ROM speed	16X max.
CD-ROM speed	40X max.
CD-R write speed	8X max.
CD-RW write speed	4X max.

Power

power requirements	100-120V -3A (50/60Hz)
power management standard	ACPI 1.0 Compliant
advanced power management	APM version 1.2

Dimensions and Weight

width	8.6 inches
height	14 inches
depth	15.5 inches
weight	27.5 lbs
