Sony VAIO PCV-R553DS User Manual

VAIO Digital Studio™ Reference Manual
42
Installing a 3½” Internal Hard Disk Drive
Your system comes with an available bay to hold an additional 3½” IDE
hard disk drive. The drive you install must not require front panel access.
The hard disk drive access light blinks when either internal drive is
active.
1
Configure the jumpers on the new drive as a slave device (see your
drive’s documentation for configuration instructions).
2
Disconnect the power cord from the computer.
3
Remove the cover (see “Removing the Cover” on page 22).
4
Remove the four screws (A in next diagram) that secure the drive
holder to the top of the chassis.
!
Before opening the system unit, save any open files, exit Windows, turn off
the power of the computer and all attached peripherals, and then unplug the
power cord.

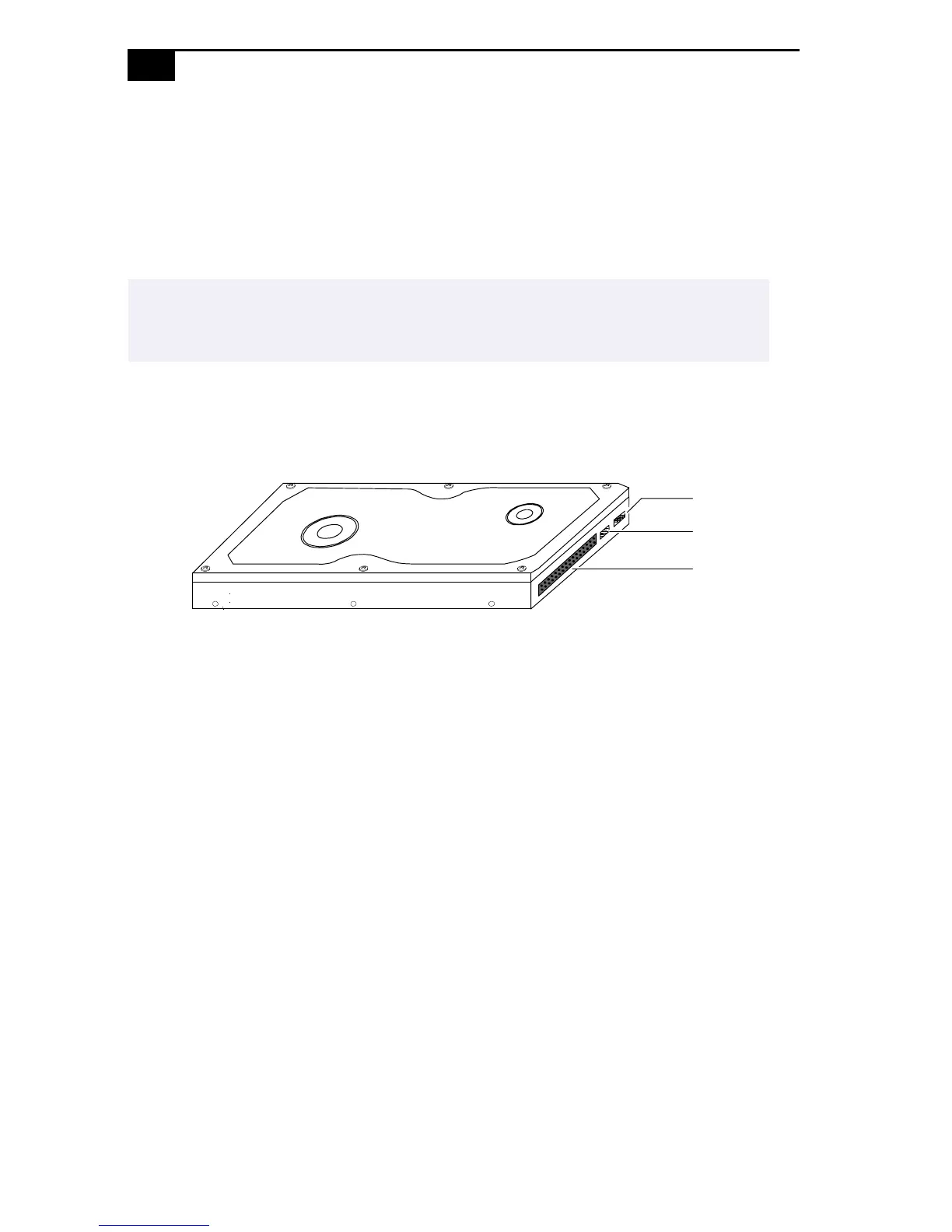

KY0084.VSD
Drive connector
Power connector
Jumpers

Sony VAIO PCV-R553DS Specifications

Processor and Memory

processor type	Intel Pentium III
processor speed	650 MHz
cache memory	128 KB
standard RAM	128 MB
maximum RAM	256 MB

Storage

hard drive capacity	30 GB
DVD-ROM speed	16X max.
CD-ROM speed	40X max.
CD-R write speed	8X max.
CD-RW write speed	4X max.

Power

power requirements	100-120V -3A (50/60Hz)
power management standard	ACPI 1.0 Compliant
advanced power management	APM version 1.2

Dimensions and Weight

width	8.6 inches
height	14 inches
depth	15.5 inches
weight	27.5 lbs
