Sony VAIO PCV-R553DS User Manual

System Board
59

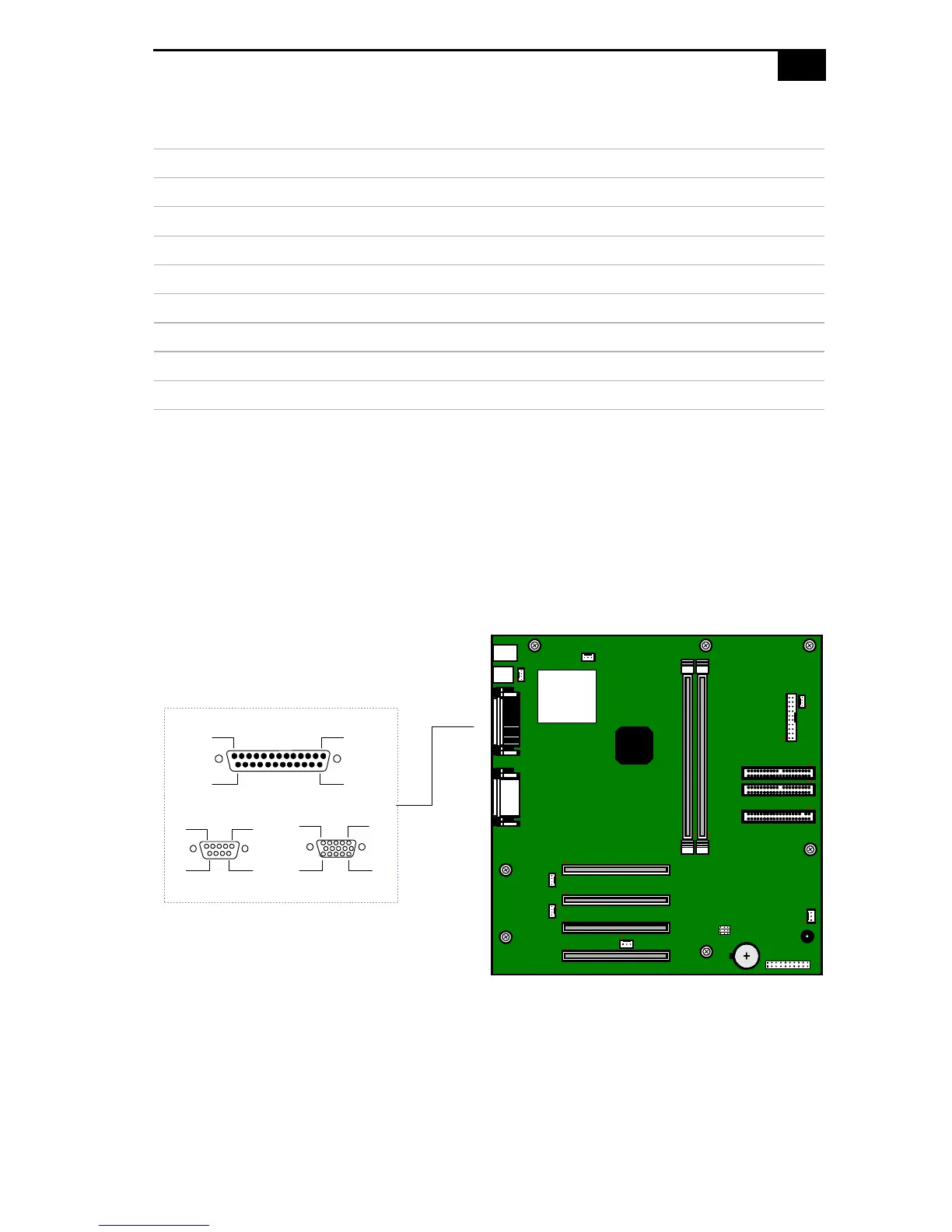

SERIAL 1, PRINTER, and MONITOR Connectors
The SERIAL 1, PRINTER, and MONITOR connectors are mounted in a
single bracket on the system board. The SERIAL 1 connector is a DB-9
male connector. The PRINTER connector is a DB-25 female connector. The
MONITOR connector is a standard 15-pin female high-density VGA-type
connector.
USB2
Pin Signal Name
1 USBVCC1
*
2USBP0#
3USBP0
4Ground
5 USBVCC2
*
6USBP1#
7USBP1
8Ground
* Uses over-current protector.
OM04701D.VSD
SERIAL 1 MONITOR
PRINTER
15
69
13 1
25 14
15
11 15

Sony VAIO PCV-R553DS Specifications

Processor and Memory

processor type	Intel Pentium III
processor speed	650 MHz
cache memory	128 KB
standard RAM	128 MB
maximum RAM	256 MB

Storage

hard drive capacity	30 GB
DVD-ROM speed	16X max.
CD-ROM speed	40X max.
CD-R write speed	8X max.
CD-RW write speed	4X max.

Power

power requirements	100-120V -3A (50/60Hz)
power management standard	ACPI 1.0 Compliant
advanced power management	APM version 1.2

Dimensions and Weight

width	8.6 inches
height	14 inches
depth	15.5 inches
weight	27.5 lbs
