Sony VAIO PCV-R553DS User Manual

51

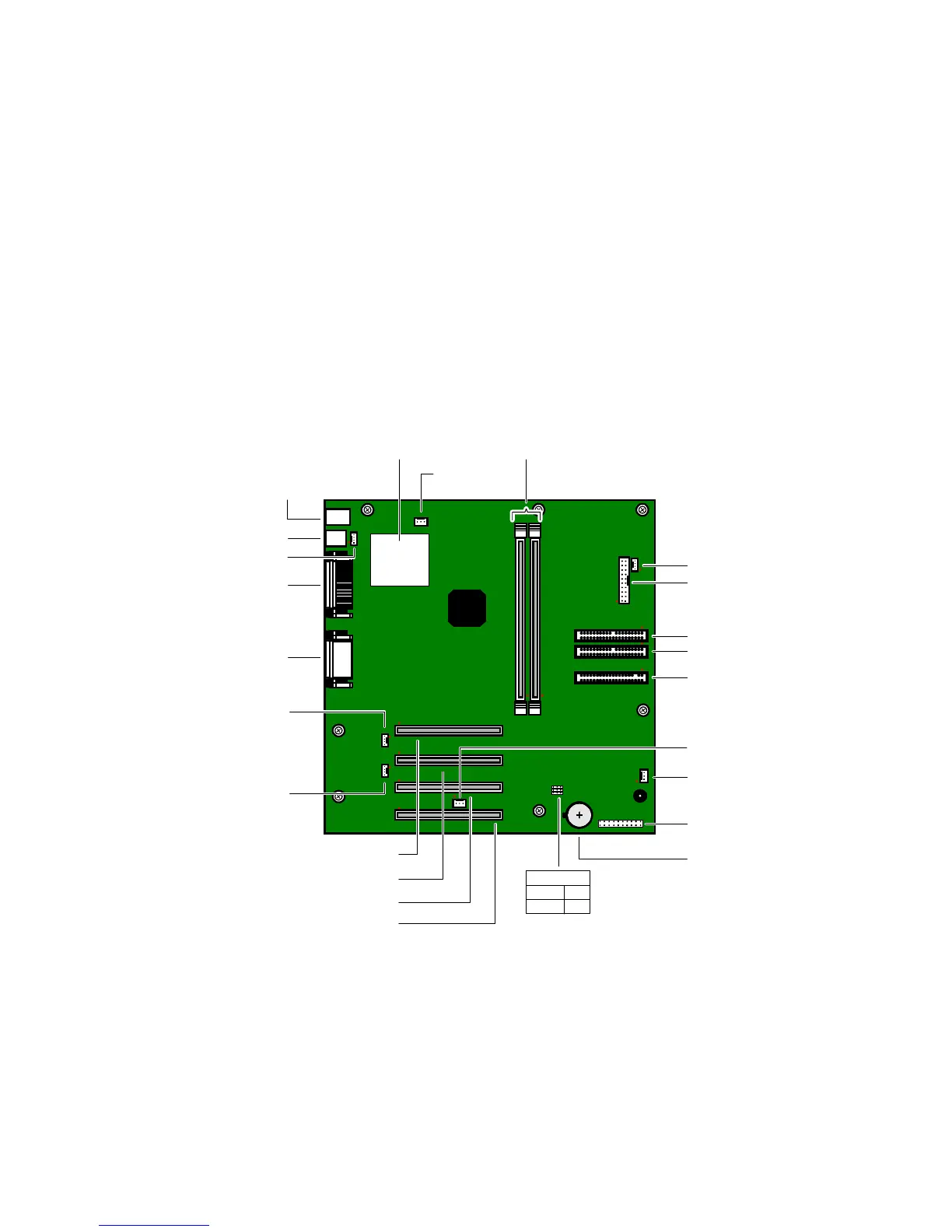

Chapter 4
System Board
This chapter identifies each component on the system board and provides
a detailed description of each connector, jumper, and switch on the
system board.
Processor Memory
Secondary IDE
Primary IDE
Battery
OM04581.VSD
Diskette
Front panel header
Mic In, Line In,
Line Out, Game
COM1, Monitor,
Printer
USB1
USB Header
CPU Fan
Keyboard, Mouse
Aux-In
(to CD-RW drive)
CD-In
(to DVD-ROM drive)
Power Supply
Slot 3 (PCI)
Slot 4 (PCI)
Slot 2 (PCI)
CMOS Clear
Clear
2-3
Normal 1-2
Slot 1 (PCI)
Power Supply Fan
WOL_CON
CHA FAN

Sony VAIO PCV-R553DS Specifications

Processor and Memory

processor type	Intel Pentium III
processor speed	650 MHz
cache memory	128 KB
standard RAM	128 MB
maximum RAM	256 MB

Storage

hard drive capacity	30 GB
DVD-ROM speed	16X max.
CD-ROM speed	40X max.
CD-R write speed	8X max.
CD-RW write speed	4X max.

Power

power requirements	100-120V -3A (50/60Hz)
power management standard	ACPI 1.0 Compliant
advanced power management	APM version 1.2

Dimensions and Weight

width	8.6 inches
height	14 inches
depth	15.5 inches
weight	27.5 lbs
