1-7
VPL-CX61/CX63

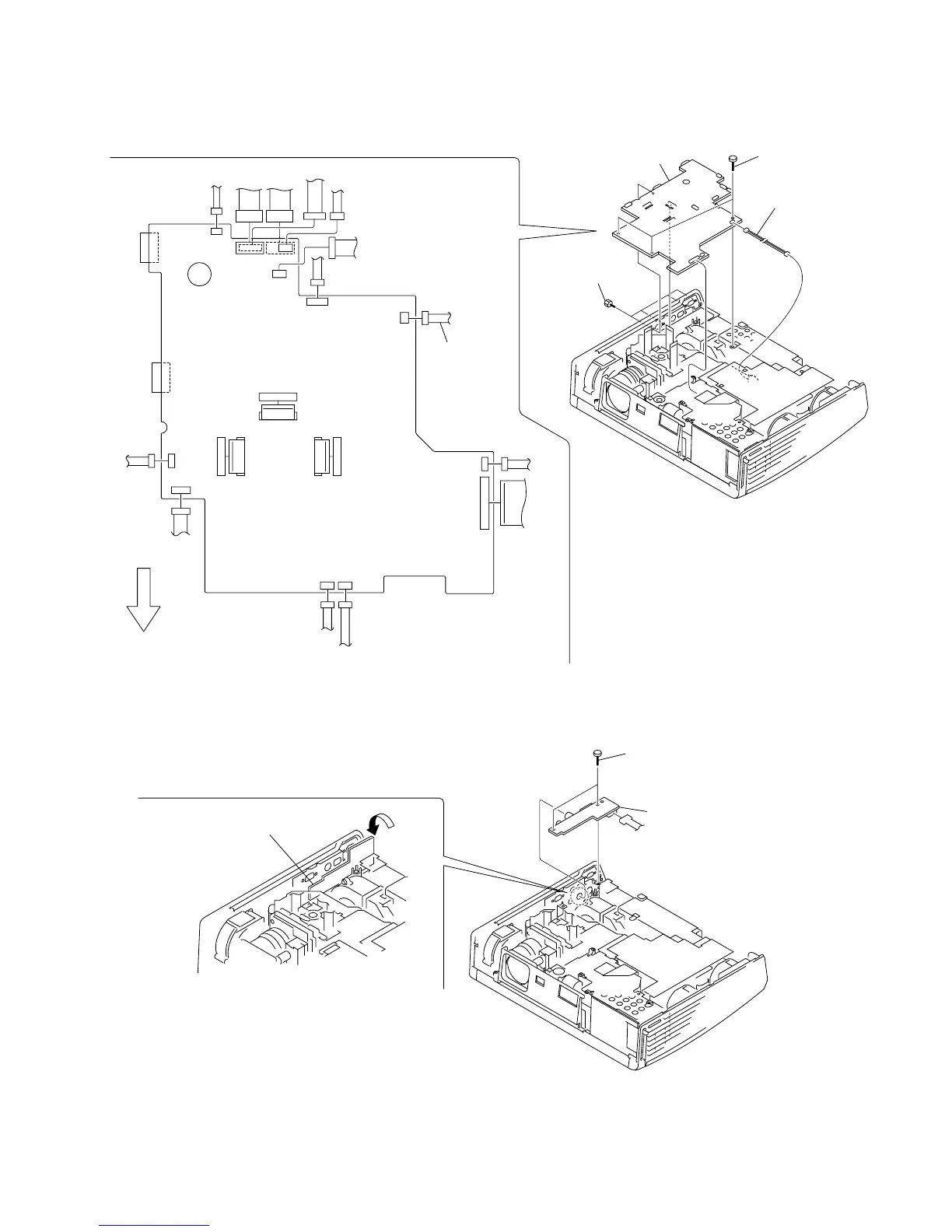

1-3-7. C Board
2 Three screws
(+PSW M3 x 6)
3 Fuse connector
assembly
4 C board
1 Four hexagon
screws
Front Side
of Unit
CN202
CN206
CN210
CN204
CN600
CN601CN301
CN203
CN502
CN211
CN205
CN205
CN200
CN201
C board
Fuse connector
assembly
CN1600
CN1800
CN1700
CN402
1-3-8. QA Board
1 Two screws
(+PSW M3 x 6)
3 QA board
2 Remove the QA board
in the direction of the arrow.
CN11

Sony VPL-CX61 Specifications

General

Display diagonal	0.79 \
Lamp type	UHP
Lamp power	190 W
Light source type	Lamp
Heat dissipation	921.3 BTU/h
Projection technology	LCD
Contrast ratio (typical)	350:1
Projector native resolution	XGA (1024x768)
Dimensions (WxDxH)	328 x 283.8 x 92.6 mm
Power requirements	AC 100 to 240 V, 50/60 Hz
Noise level	28 dB
Power consumption (standby)	5 W
Power consumption (typical)	280 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Market positioning	Home cinema

Weight and Dimensions

Weight	3700 g
