1-12
VPL-CX61/CX63

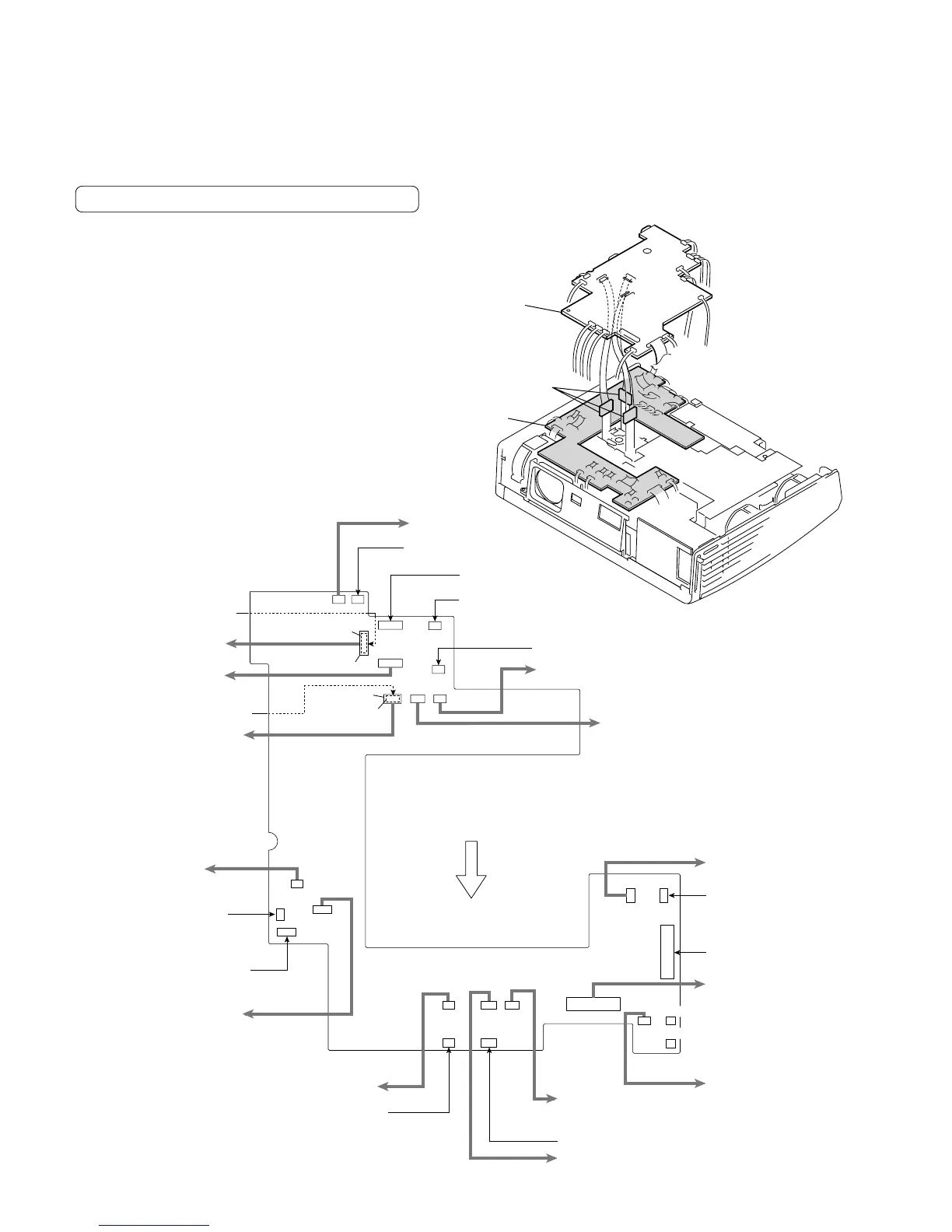

1-3-16. Extension Boards and Extension Connectors
X kit assembly (Part No. A-1066-122-A)
1-3-17. Extension Boards and Extension
Connectors Connection
1. C board extension with using XC and XF32
extension boards.
XC board x1 XF32 board x 3 Harness x 14 Flat cable x5
FRONT SIDE
OF UNIT
C board
XC board
XC board
Three XF32 boards
To C board
CN202 (4P)
To C board
CN201 (24P)
To C board CN206 (5P)
From Lamp power supply (5P)
To C board CN204 (6P)
From U board CN20 (3P),
NR board CN10 (3P)
From QB board
CN51 (7P)
To C board
CN601 (7P)
From QA board CN11 (11P)
To C board
CN301 (11P)
From QB board
CN53 (12P)
To C board
CN600 (12P)
To C board
CN402 (2P)
To C board CN506 (6P)
To C board
CN505 (5P)
From speaker
(2P)
To C board
CN502 (4P)
From lens (4P)
To C board
CN211 (8P)
From H2 board
CN70 (8P)
To C board CN203 (7P)
From V board CN30 (7P)
To C board
CN200 (6P)
From GA board
CN102 (4P)
From GB board
CN401 (6P)
From GB board
CN203 (24P)
CN5201
CN5505
CN5209
CN5200 CN200
CN201
CN209
CN5506
CN5203
CN5502
CN5211
CN211
CN402
CN5402
CN5601
CN5204
CN206
CN204CN301
CN5301
CN5600
CN5202
CN202
CN5206
CN502 CN203
CN601
CN600

Sony VPL-CX61 Specifications

General

Display diagonal	0.79 \
Lamp type	UHP
Lamp power	190 W
Light source type	Lamp
Heat dissipation	921.3 BTU/h
Projection technology	LCD
Contrast ratio (typical)	350:1
Projector native resolution	XGA (1024x768)
Dimensions (WxDxH)	328 x 283.8 x 92.6 mm
Power requirements	AC 100 to 240 V, 50/60 Hz
Noise level	28 dB
Power consumption (standby)	5 W
Power consumption (typical)	280 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Market positioning	Home cinema

Weight and Dimensions

Weight	3700 g
