4-2
VPL-CX61/CX63
Top Cover

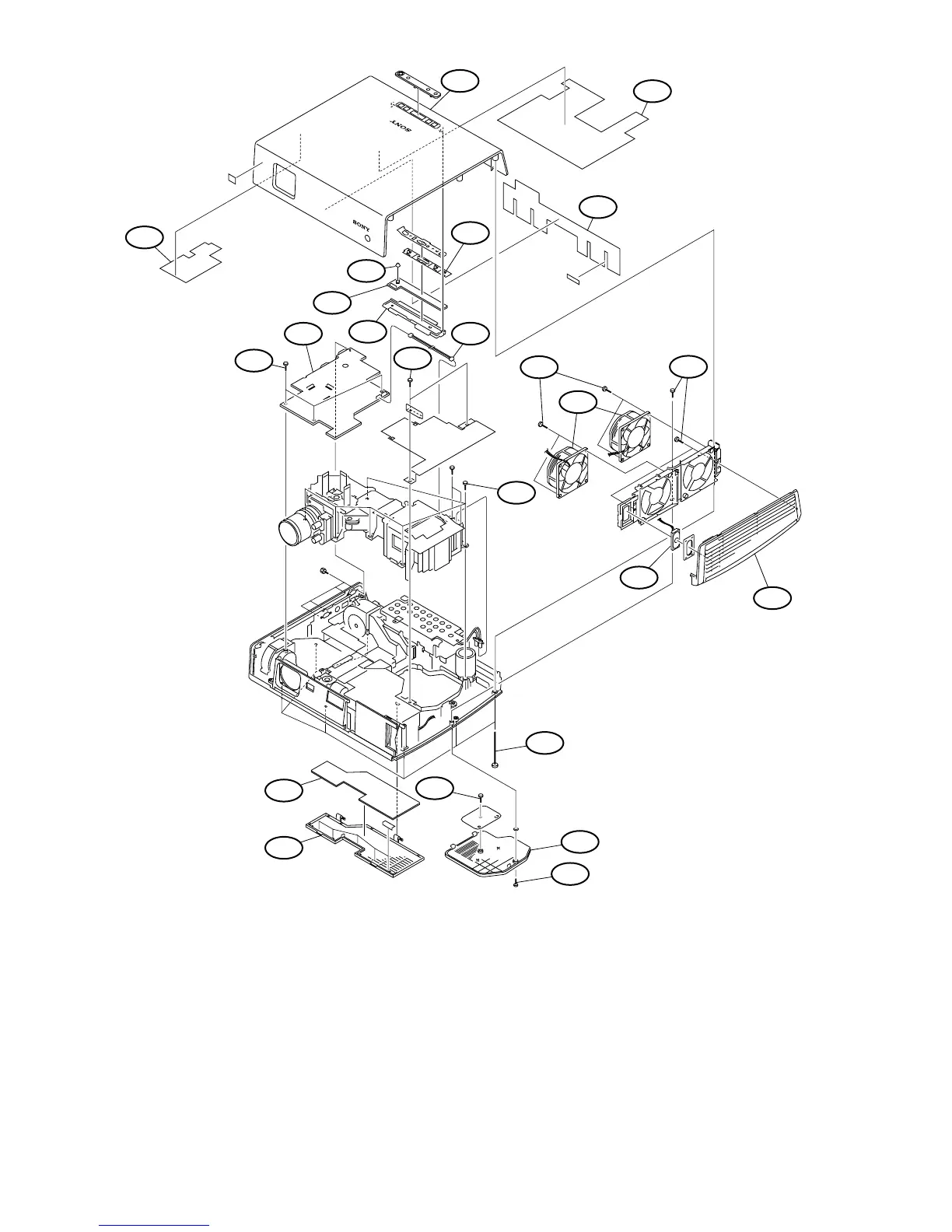

4-2. Exploded Views
11
8
2
13
1
6
18
3
17
17
17
17
16
7
19
12
4
14
9
10
5
+ PWHTP 3x10
16
15
17
No. Part No. SP Description
1 A-1184-866-A s MOUNTED CIRCUIT BOARD, C
2 A-1198-983-A s MOUNTED CIRCUIT BOARD, H1
3 A-1603-156-B s SPEAKER ASSY
4 X-2109-720-1 s ASSY, COVER TOP
5 1-787-404-11 s D.C. FAN
6 1-910-014-00 s CONNECTOR ASSY, FUSE
7 2-109-440-02 s SHEET (TP)
8 4-103-366-02 s +PSW M3X70
9 4-103-368-01 s FILTER
10 4-103-369-11 s COVER, FILTER
No. Part No. SP Description
11 4-103-372-11 s DOOR, LAMP
12 4-103-394-11 s KEY (H1A)
13 4-103-395-01 s KEY (H1B)
14 4-103-396-21 s PANEL, SIDE (L)
15 4-103-402-02 s BRACKET (H1)
16 4-382-854-11 s SCREW (M3X10), P, SW (+)
17 4-382-854-51 s SCREW (M3X6), P, SW (+)
18 2-109-441-11 s SHIELD (TPA)
19 2-109-442-11 s SHIELD (TPB)
7-685-903-31 s SCREW +PTPWH 3X10 (TYPE2)

Sony VPL-CX61 Specifications

General

Display diagonal	0.79 \
Lamp type	UHP
Lamp power	190 W
Light source type	Lamp
Heat dissipation	921.3 BTU/h
Projection technology	LCD
Contrast ratio (typical)	350:1
Projector native resolution	XGA (1024x768)
Dimensions (WxDxH)	328 x 283.8 x 92.6 mm
Power requirements	AC 100 to 240 V, 50/60 Hz
Noise level	28 dB
Power consumption (standby)	5 W
Power consumption (typical)	280 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Market positioning	Home cinema

Weight and Dimensions

Weight	3700 g
