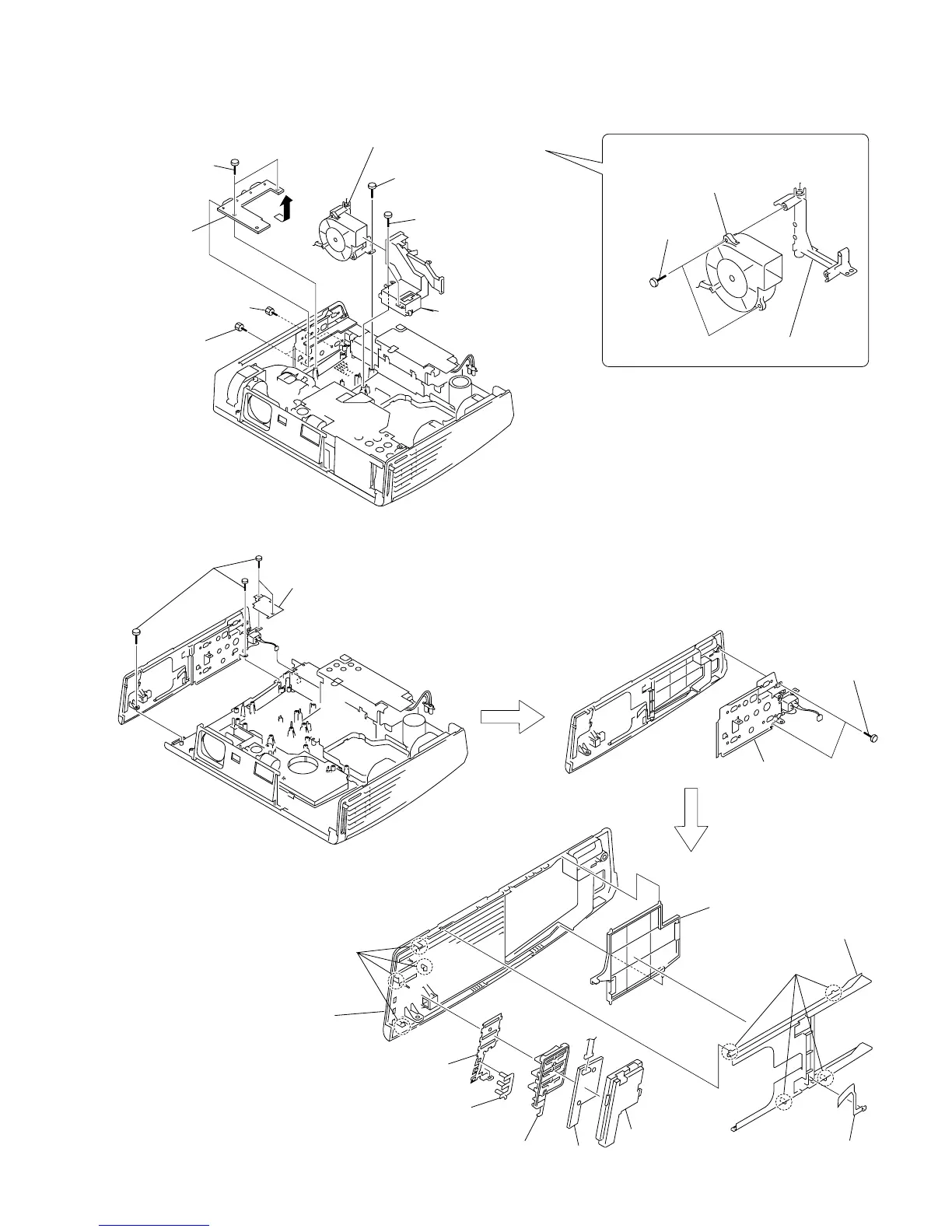

Sony VPL-CX61 - QB Board; H2 Board and Door (Side)

1-11
VPL-CX61/CX63
7 Two screws
(+PSW M3 x 6)
9 Two screws
(+PSW M3 x 10)
0 Lamp fan holder (A)
4 D.C. fan (Sirocco) (60 x 80),
Lamp fan holder (A)
!- D.C. fan (Sirocco)
(60 x 80)
2 Screw (+PSW M3 x 6)
3 Ballast (Cover) duct,
Ballast (Base) duct
1 Two screws
(+PSW M3 x 6)
8 QB board
5 Two hexagon
screws
6 Two hexagon
screws
1-3-14. QB Board
1-3-15. H2 Board and Door (Side)
1 Four screws
(+PSW M3 x 6)
2 Shield (Inlet)
3 Two s crews
(+PSW M3 x 6)
8 Door (Side)
6 Four claws
![ Key (H2C3)
!= Light guide (H2)
!- Shield (H2)
!\ Side (R) panel
4 Terminal A,
AC inlet assembly
9 Four claws
!] H2 board
0 Holder (H2)
7 Terminal board B
5 Spring plate
(Side)
CN70
CN101
