Sony VPL-CX61 User Manual

1-10
VPL-CX61/CX63

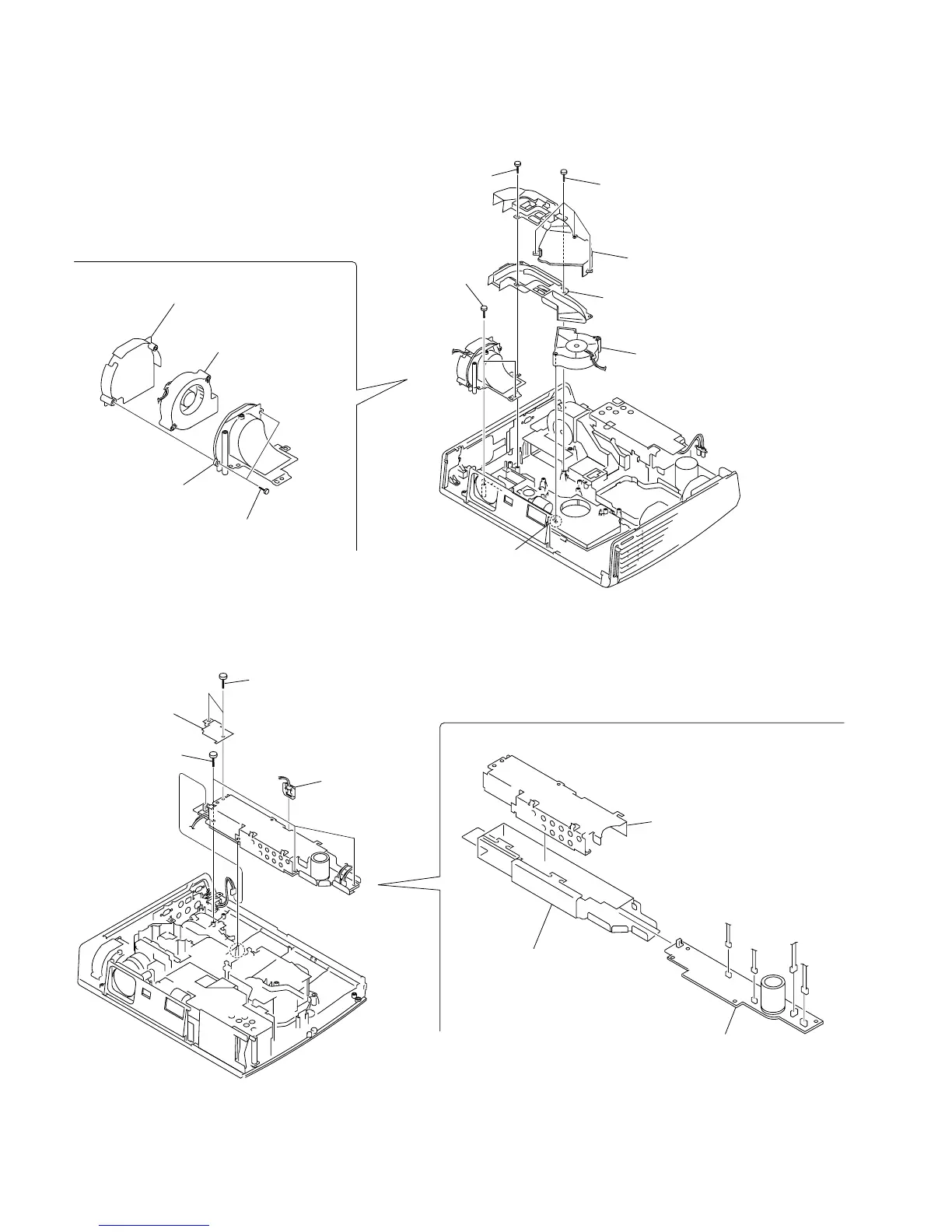

1-3-12. D.C Fan (Sirocco) (72
xx
xx
x 75)
1 Four screws
(+PSW M3 x 10)
7 Two screws
(+PSW M3 x 10)
8 Two screws
(+PSW M3 x 10)
0 Fan holder (PA)
9 Fan holder (PB)
!- D.C. fan (Sirocco)
(72 x 75)
3 Prism duct (Cover)
6 Prism duct (Base)
5 D.C. fan (Sirocco)
(72 x 75)
4 Claw
2 Screw
(+PSW M3 x 10)
1-3-13. GA Board
1 Two s crews
(+PSW M3 x 6)
3 NR board
Holder (NR)
2 Shield (Inlet)
4 Four screws
(+PSW M3 x 6)
5 Shield (GA)
6 Sheet (GA)
7 GA board
CN101
CN104
CN102
CN103
CN105

Sony VPL-CX61 Specifications

General

Display diagonal	0.79 \
Lamp type	UHP
Lamp power	190 W
Light source type	Lamp
Heat dissipation	921.3 BTU/h
Projection technology	LCD
Contrast ratio (typical)	350:1
Projector native resolution	XGA (1024x768)
Dimensions (WxDxH)	328 x 283.8 x 92.6 mm
Power requirements	AC 100 to 240 V, 50/60 Hz
Noise level	28 dB
Power consumption (standby)	5 W
Power consumption (typical)	280 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Market positioning	Home cinema

Weight and Dimensions

Weight	3700 g
