VPL-CX61/CX63

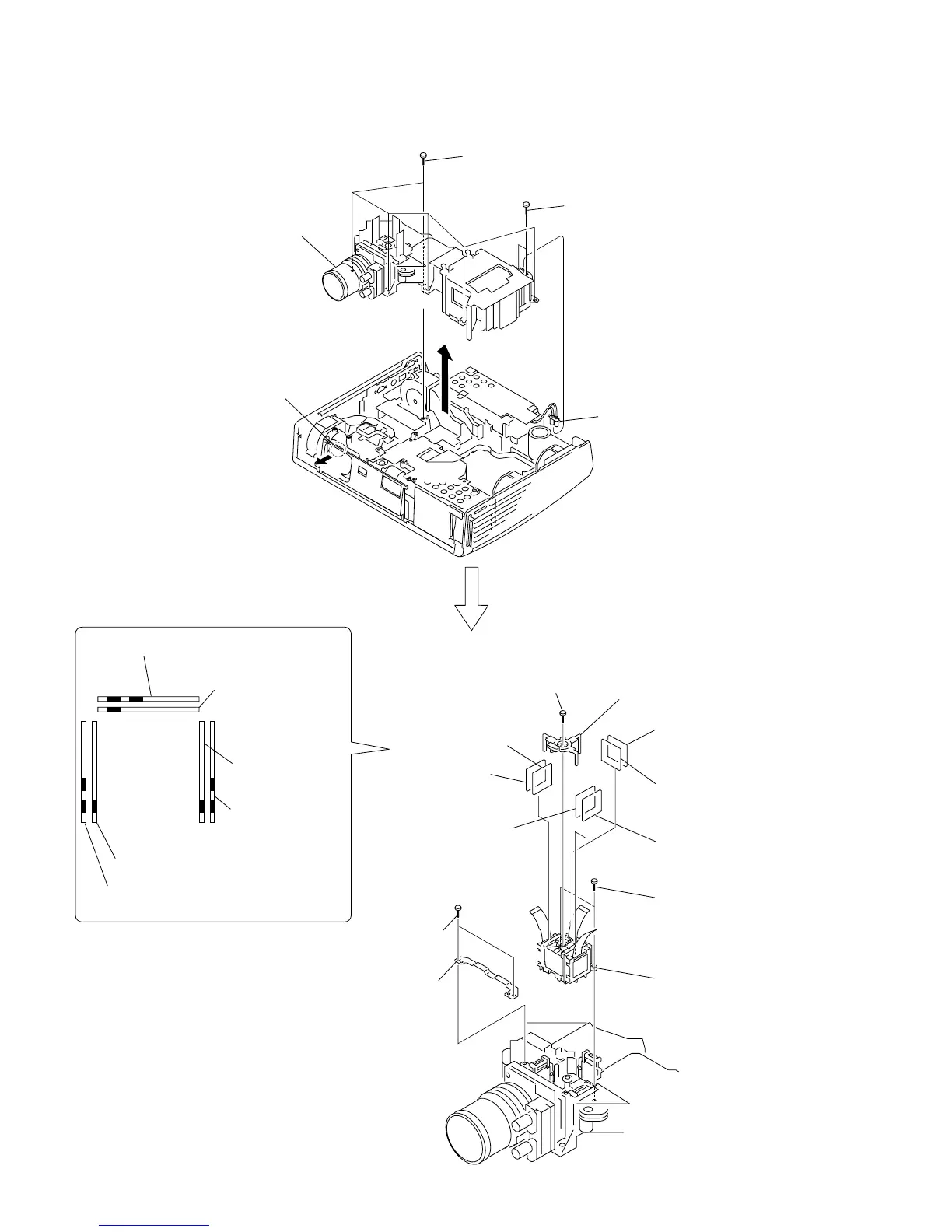

1-3-9. Optics Block Assembly
A
B
1 Two screws
(+PWHTP 3 x 10)
2 Six screws
(+PSW M3 x 10)
Lamp power supply
4 Remove the optics block assembly
in the direction of the arrow B.
3 Push this portion by arrow A.
9 Screw (+PTP 2.6 x 5)
7 Two screws
(+B 2 x 5)
5 Two screws
(+B 2 x 5)
!- S Polarization panel (B)
assembly (Pre)
!\ S Polarization panel (G)
assembly (Pre)
!; S Polarization panel
(G) assembly
!= S Polarization panel
(B) assembly
!] S Polarization panel
(R) assembly
![ S Polarization panel
(R) assembly (Pre)
0 Polarization retainer
8 Prism block assembly
6 Prism block holder
S Polarization panel (G) assembly (Pre)
S Polarization panel (G) assembly
Green
Blue
Red
S Polarization panel
(B) assembly (Pre)
S Polarization panel
(B) assembly
S Polarization panel (R) assembly
S Polarization panel (R) assembly (Pre)
(Top view)
Position of the S Polarization panel assembly (Pre),
S Polarization panel assembly
