Projecting an Image
B Projecting/Adjusting an Image
Projecting an Image
The size of a projected image depends on the distance between the projector and screen. Install
the projector so that the projected image fits the screen size. For details on projection distances
and projected image sizes, see
“Projection Distance and Lens Shift Range” (page 52).
1 Plug the AC power cord into a wall
outlet.
2 Connect all equipment to the projector
(page 8).
3 Turn on the projector.
Press the ?/1 key on the main unit or the
? key on the Remote Commander.
4 Turn on the connected equipment.
5 Select the input source.
Press the INPUT key on the projector to
display the input select window. Press
the INPUT key repeatedly or the V/v
key to select an image to be projected.
The signal icon appears on the right
side in the input select window when a
signal is input.
You can select the input source using
Direct input select keys on the Remote
Commander
(page 5).
6 Switch your computer to output to
external display by changing your
computer’s setting.
How to switch the computer to output to
the projector varies, depending on the
type of computer.
(Example)

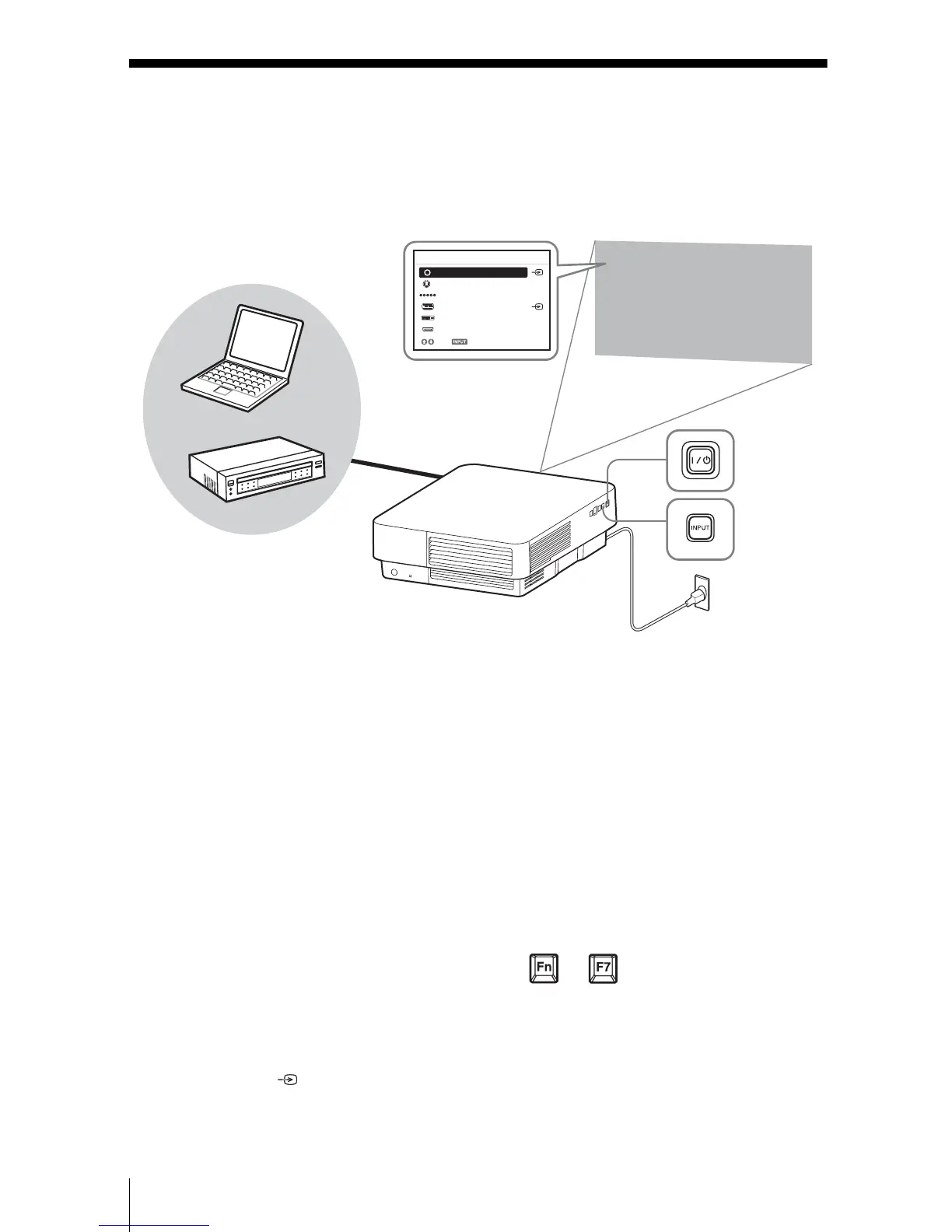

7 Adjust the focus, size, and position of
the projected image (page 13).
Video
S-Videoo
Input-A
Input-B
Input-C
Input-D
Sel Skip
Input
Computer
Video equipment
Projector
Wall outlet
1
2
3
5
4
5
6
Input select window
+

Sony VPL-FHZ55 Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	8000:1
Screen size compatibility	40 - 600 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	30 °
Focus	Manual
Throw ratio	1.4 - 2.3:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	- %
Service life of light source	20000 h
3D	No
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	40 dB
Noise level (economic mode)	35 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR, VIE
Placement	Desktop
Product type	Large venue projector
Product color	White
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Cables included	AC
Remote control type	IR

Weight and Dimensions

Depth	487 mm
Width	390 mm
Height	134 mm
Weight	11000 g
