Connecting the Projector
B Preparation
Connecting the Projector
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you are connecting.
• Use a no-resistance audio cable.
Connection with a computer is explained for each input signal.
INPUT A
For connection when there is a long distance between a computer and the projector.
INPUT B
For connecting a computer with an RGB output terminal.
It is recommended that you set the resolution of your computer to 1920 × 1200 pixels for the external
monitor.
Notes

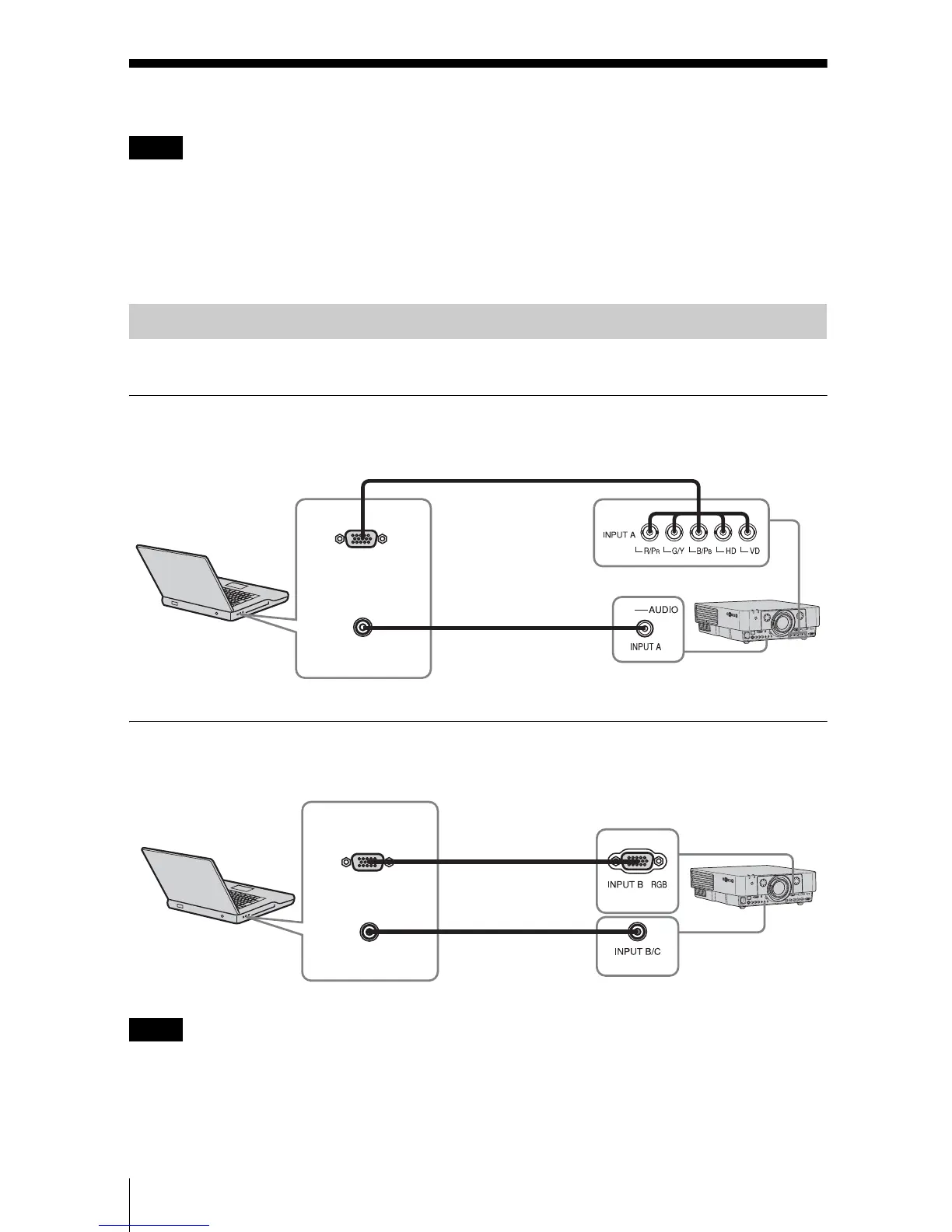

Connecting a Computer
Note
Mini D-sub 15-pin
– BNC cable
(not supplied)
Audio cable
(Stereo mini plug)
(not supplied)
RGB output
terminal
Audio output
terminal
Computer
Mini D-sub 15-pin
cable
(not supplied)
Audio cable
(Stereo mini plug)
(not supplied)
RGB output
terminal
Audio output
terminal
Computer

Sony VPL-FHZ55 Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	8000:1
Screen size compatibility	40 - 600 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	30 °
Focus	Manual
Throw ratio	1.4 - 2.3:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	- %
Service life of light source	20000 h
3D	No
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	40 dB
Noise level (economic mode)	35 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR, VIE
Placement	Desktop
Product type	Large venue projector
Product color	White
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Cables included	AC
Remote control type	IR

Weight and Dimensions

Depth	487 mm
Width	390 mm
Height	134 mm
Weight	11000 g
