Projecting an Image
Projecting/Adjusting an Image
Adjusting the tilt of the projector
with the front feet (adjustable)
When the projector is installed on an uneven
surface or the projected position is low, you
can adjust using the front feet (adjustable).
To correct any trapezoidal distortion of the
projected image, use the Keystone
correction feature (pages 13, 28).
• Be careful not to let the projector down on
your fingers.
• Do not push hard on the top of the projector
with the front feet (adjustable) extended.
• Keystone adjustment is an electronic
correction. Consequently the image quality
may deteriorate.
Displaying a pattern for adjusting
an image
You can display a pattern for adjusting the
projected image with the PATTERN key on
the Remote Commander. Press the
PATTERN key again to restore the previous
image.
Correcting for trapezoidal
distortion of the projected image
(Keystone adjustment)
If the screen is tilted, or you are projecting
from an oblique angle, perform keystone
adjustment.

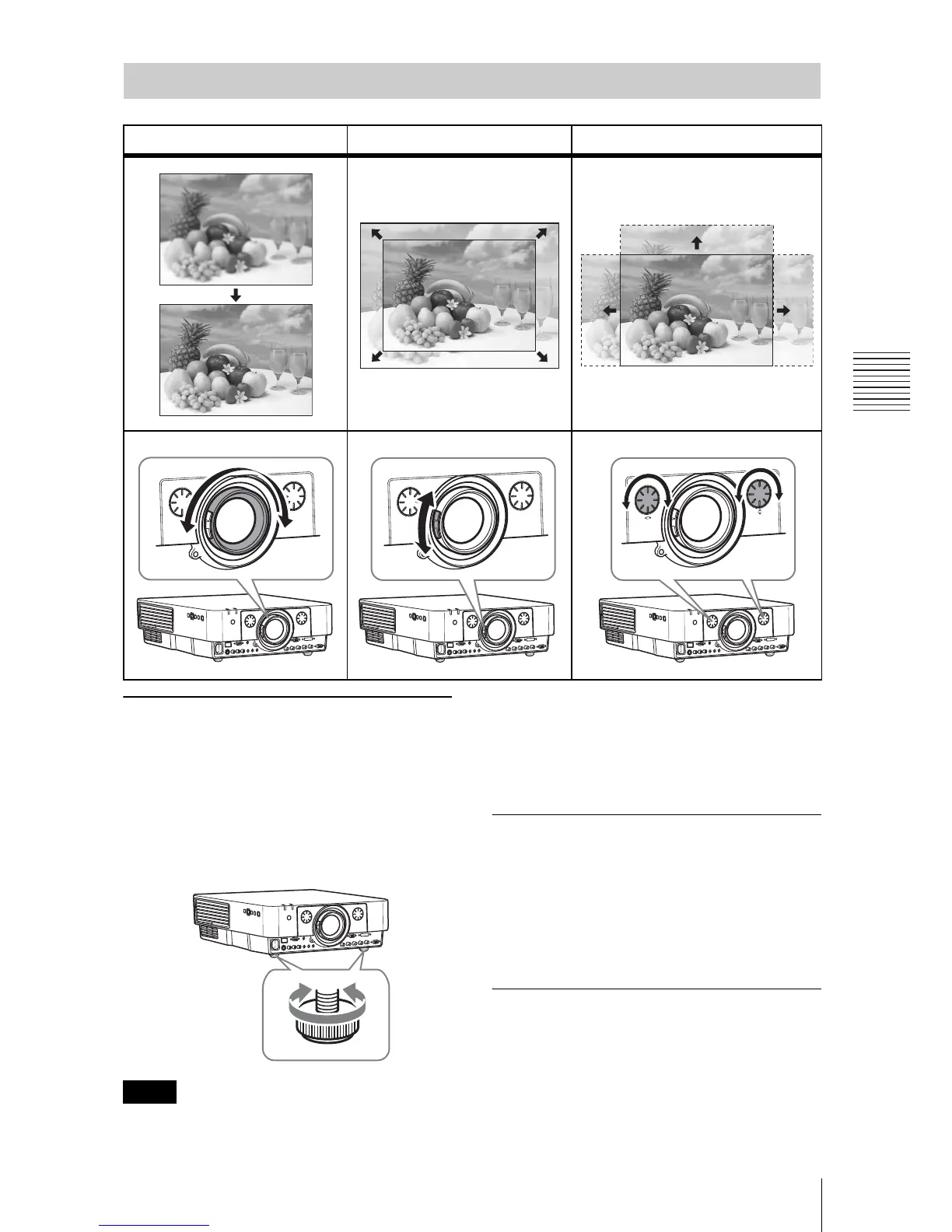

Adjusting the Focus, Size, and Position of the Projected image
Focus Size (Zoom) Position (Lens shift)
Notes

Sony VPL-FHZ55 Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	8000:1
Screen size compatibility	40 - 600 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	30 °
Focus	Manual
Throw ratio	1.4 - 2.3:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	- %
Service life of light source	20000 h
3D	No
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	40 dB
Noise level (economic mode)	35 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR, VIE
Placement	Desktop
Product type	Large venue projector
Product color	White
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Cables included	AC
Remote control type	IR

Weight and Dimensions

Depth	487 mm
Width	390 mm
Height	134 mm
Weight	11000 g
