Sony VPL-FHZ55 Operating Instructions

44

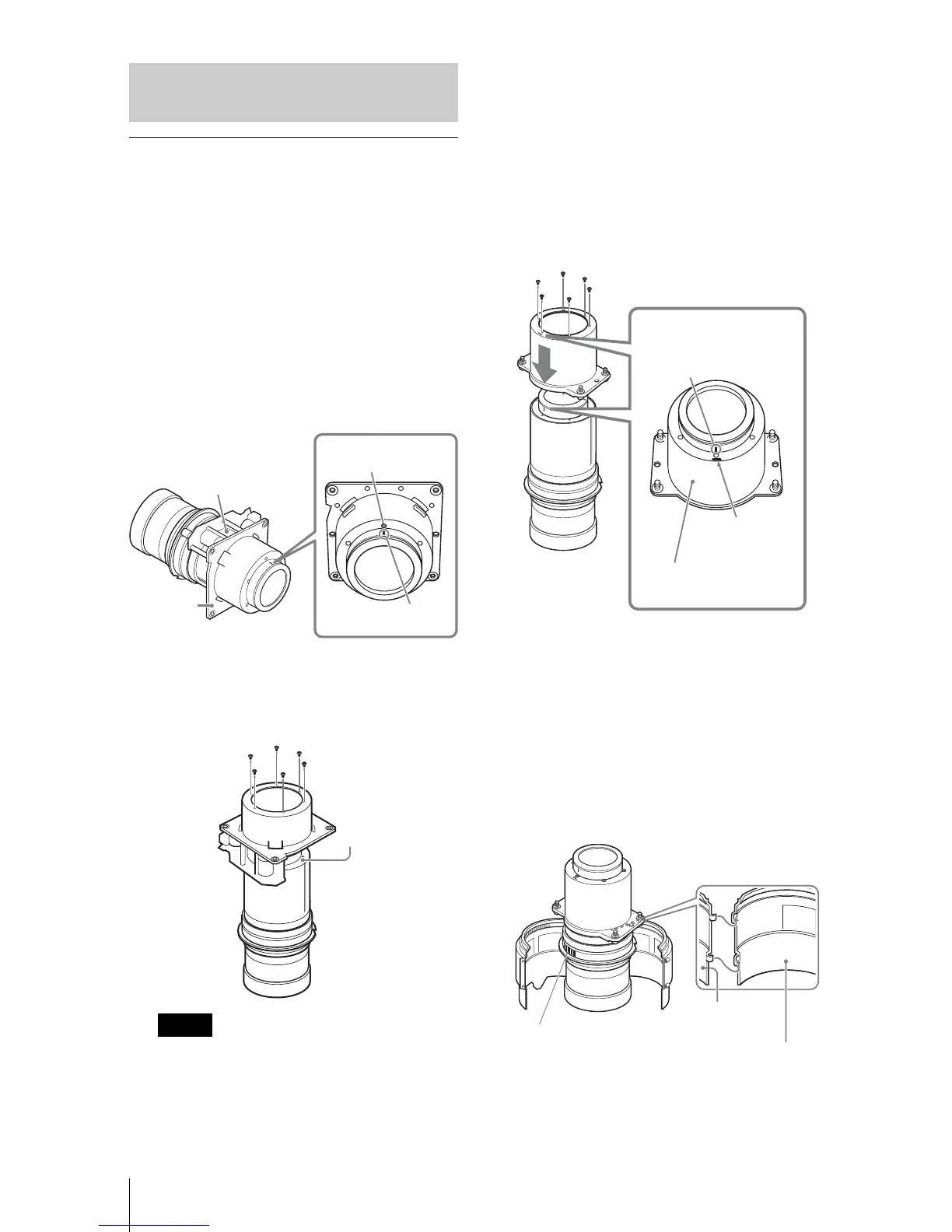

Removing/Attaching the Projection Lens
Attaching the projection lens
adapter to the projection lens
Before starting
Since you may not recognize the center
position of the projection lens after the
flange section of the lens (step
1) is removed,
place a mark on the projection lens with a
marking pen, etc.
1 Place the projection lens with the
motor section upward and place a
mark around the top screw hole on the
lens.
2 Remove the six screws that secure the
flange section then slide it straight to
remove.
• The screws that secure the flange section
are strongly tightened. When removing
the screws, be careful not to damage the
screw heads.
• When the flange section is removed, the
spacer section is also loosened. Be
careful that the spacer section is not
removed.
3 Insert Part C for the lens adapter all the
way until it is securely in place, align the
mark with the mark placed in step 1,
then tighten the six D screws supplied
with the lens adapter.
4 Attach Part A and Part B for the lens
adapter to the projection lens.
1 Remove the lens cap.
2 First, fit Part A to the zoom gear
section on the projection lens.
3 Fit the holes on Part B to the hooks
on Part A then hold the projection
lens between Part A and Part B for
the lens adapter.
Attaching/Removing VPLL-
Z1024/Z1032
Notes
Top screw
Motor section
Flange
section
Mark
Screws (6)
Spacer
Mark placed in step 1
Mark
Part C for the lens
adapter
D screws (6)
Zoom gear section
Part A for the
lens adapter
Part B for the
lens adapter
2
3

Sony VPL-FHZ55 Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	8000:1
Screen size compatibility	40 - 600 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	30 °
Focus	Manual
Throw ratio	1.4 - 2.3:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	- %
Service life of light source	20000 h
3D	No
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	40 dB
Noise level (economic mode)	35 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR, VIE
Placement	Desktop
Product type	Large venue projector
Product color	White
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Cables included	AC
Remote control type	IR

Weight and Dimensions

Depth	487 mm
Width	390 mm
Height	134 mm
Weight	11000 g
