24

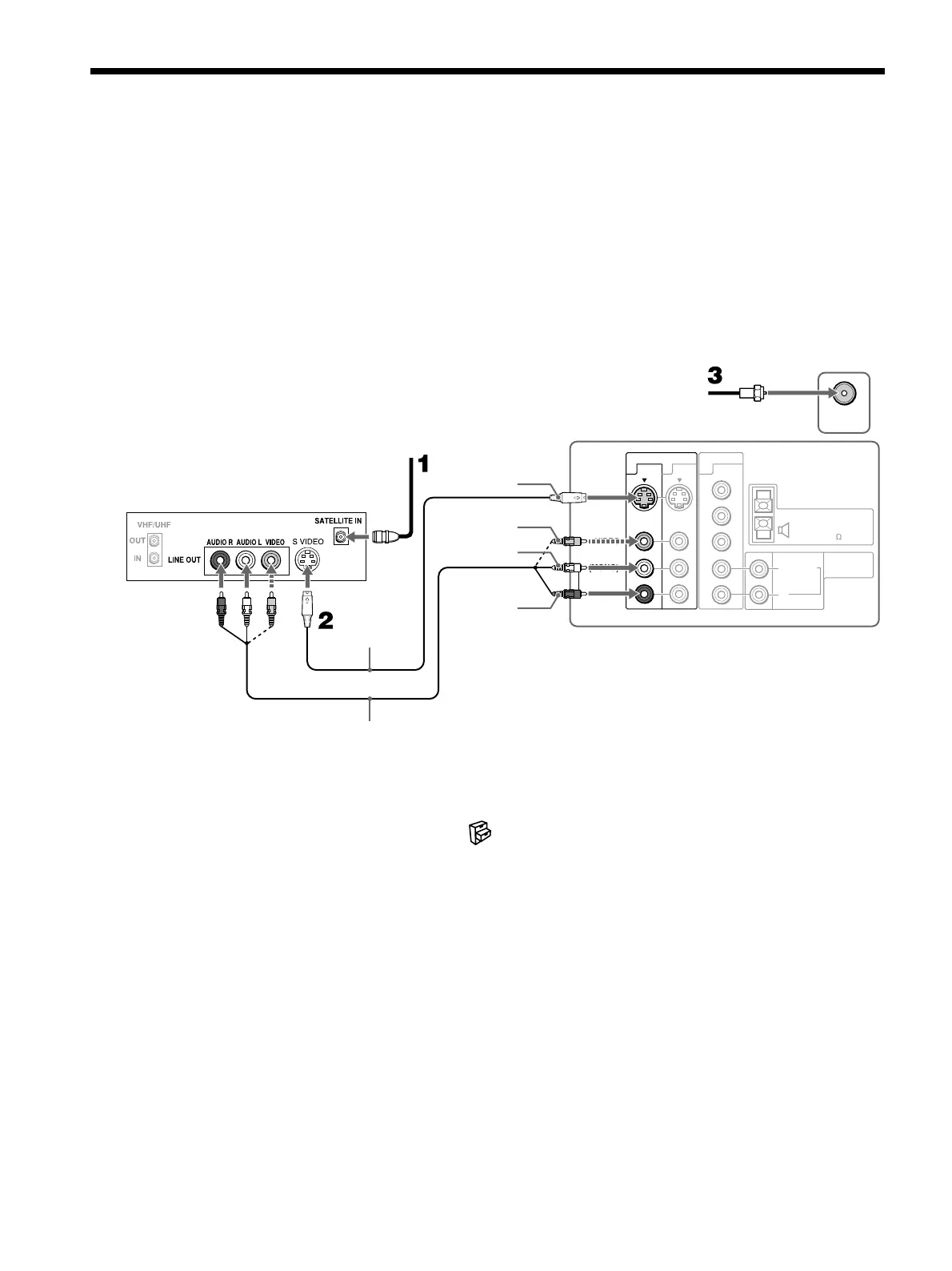

Connecting a Satellite Receiver
Disconnect all power sources before making any connections.
1 Connect the satellite antenna cable to the satellite receiver’s SATELLITE
IN jack.
2 Using AUDIO and S VIDEO cables, connect the satellite receiver’s AUDIO
and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks
(VIDEO IN 1 or 3).
3 Connect the supplied 75-ohm coaxial cable from your cable or antenna to the
TV’s VHF/UHF jack.
HD/DVD IN
AUDIO OUT
(VAR/FIX)
P
R
P
B
Y
CENTER SPEAKER
IN
180W (6 ) MAX
VIDEO IN
VHF/UHF
1
S VIDEO
VIDEO
AUDIO
L(MONO)
R
AUDIO
L
R
AUDIO
L(MONO)
R
3 4
VIDEO (yellow)
AUDIO-L (white)
AUDIO-R
(red)
S VIDEO
Rear of TV
75-ohm coaxial
cable (supplied)
Note
When you connect video equipment to both the VIDEO and the S VIDEO input jacks, make
sure “Auto YC” in the (Setup) menu is set to “On” to view the S VIDEO input (see page
23).
Tips
• You can also use the VIDEO IN 2 jacks located on the front of the TV to connect your
satellite receiver.
• If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
• Use VIDEO 1/2/3 on the remote control to select VIDEO IN 1 (or VIDEO IN 3 if you use
the VIDEO IN 3 jacks for this hookup) to watch satellite TV.
S VIDEO
cable
(not supplied)
AUDIO cable (not supplied)
Satellite
antenna
cable
Satellite receiver
To Next Page
