30

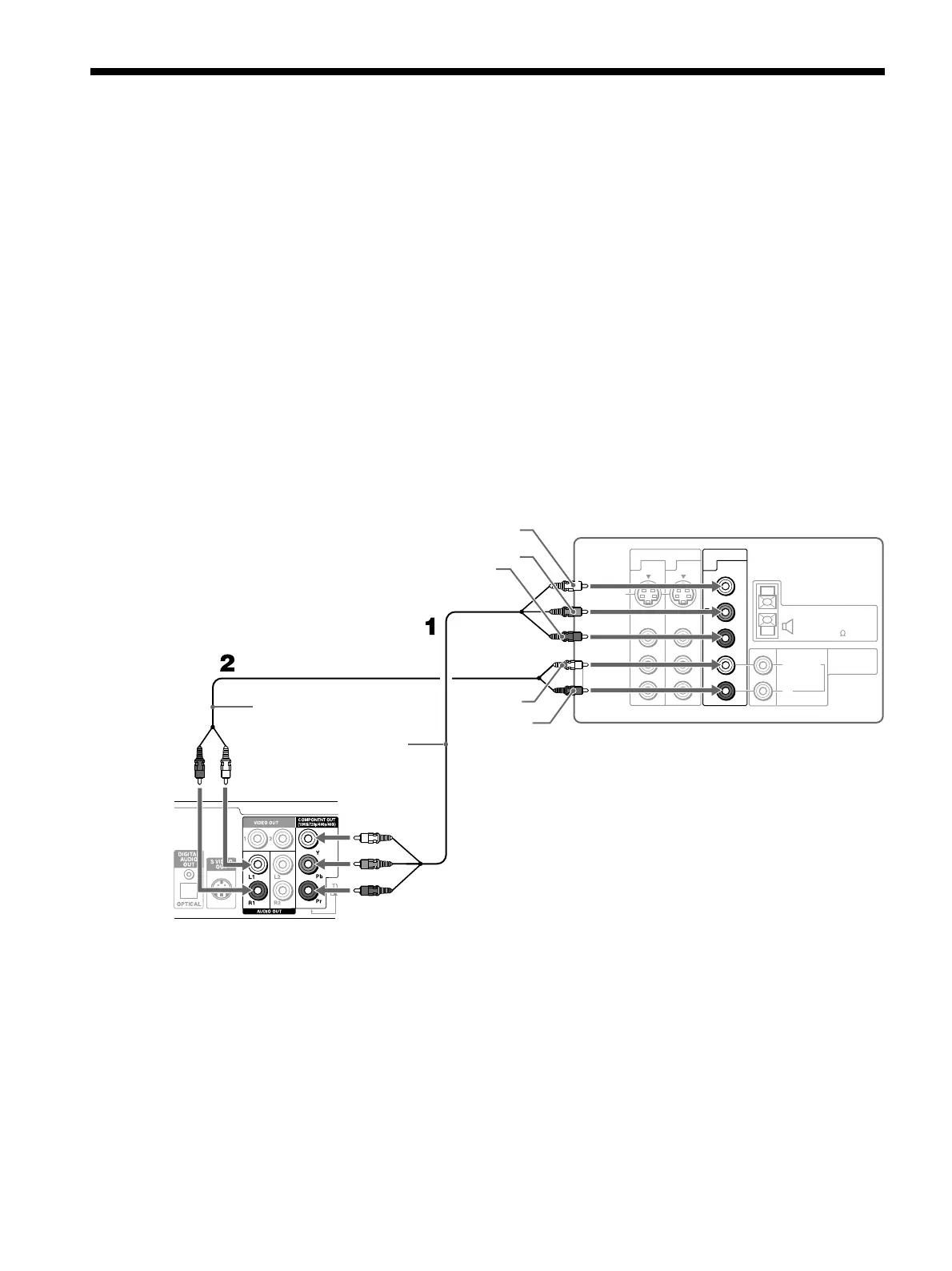

Connecting a Digital Satellite Receiver
Disconnect all power sources before making any connections.
1 Using a component video cable, connect the Digital Satellite Receiver’s
Y, P
B and PR jacks to the Y, PB and PR jacks on the TV. Use the HD/DVD
IN 4 connections.
Note
Component video (Y, PB, PR) connection is necessary to view 480p, 720p, and 1080i
formats. Note that this TV displays all format types of picture in a resolution of
852 dots × 480 lines.
2 Using an AUDIO cable, connect the Digital Satellite Receiver’s AUDIO
OUT jacks to the TV’s AUDIO IN jacks.
Note
The Y, PB and PR jacks do not provide audio, so audio cables must be connected to
provide sound.
HD/DVD IN
P
R
P
B
Y
4
VIDEO IN
1
S VIDEO
VIDEO
AUDIO
L(MONO)
R
3
AUDIO OUT
(VAR/FIX)
P
R
P
B
Y
CENTER SPEAKER
IN
180W (6 ) MAX
AUDIO
L
R
AUDIO
L(MONO)
R
Digital Satellite Receiver
AUDIO cable
(not supplied)
Rear of TV
Component
video cable
(not supplied)
P
R
PB
Y
AUDIO-R
(red)
AUDIO-L
(white)
To Next Page
