25
Connecting and Setting the TV
HD/DVD IN
AUDIO OUT
(VAR/FIX)
P
R
P
B
Y
CENTER SPEAKER
IN
180W (6 ) MAX
VIDEO IN
VHF/UHF
1
S VIDEO
VIDEO
AUDIO
L(MONO)
R
AUDIO
L
R
AUDIO
L(MONO)
R
3 4
VIDEO
(yellow)
AUDIO-R
(red)
VCR
S VIDEO
75-ohm coaxial
cable (supplied)

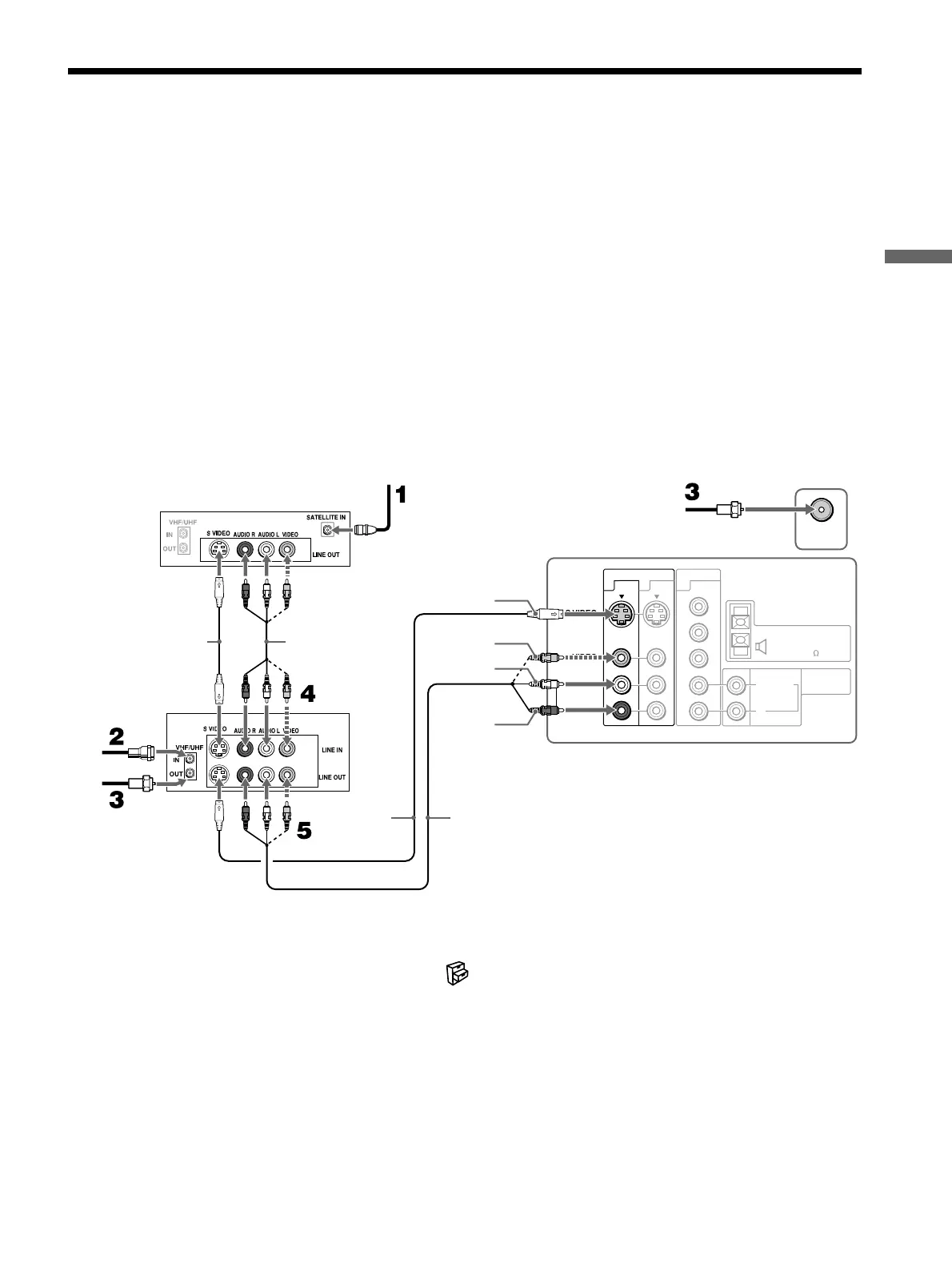

Connecting a Satellite Receiver and a VCR
Disconnect all power sources before making any connections.
1 Connect the satellite antenna cable to the satellite receiver’s SATELLITE
IN jack.
2 Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3 Using the supplied 75-ohm coaxial cable, connect the VCR’s OUT jack
to the TV’s VHF/UHF jack.
4 Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO
IN jacks.
5 Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and S
VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks (VIDEO
IN 1 or 3).
Note
When you connect video equipment to both the VIDEO and the S VIDEO input jacks, make
sure “Auto YC” in the (Setup) menu is set to “On” to view the S VIDEO input (see page
23).
Tips
• You can also use the VIDEO IN 2 jacks located on the front of the TV to connect your
VCR.
• Be sure your VCR’s video input is set correctly. Consult your VCR’s operating manual for
instructions.
• Use VIDEO 1/2/3 on the remote control to select VIDEO IN 1 (or VIDEO IN 3 if you use
the VIDEO IN 3 jacks for this hookup) to watch satellite TV or to watch a tape on the VCR
(your VCR must be turned on).
• If your VCR or satellite receiver is not equipped with S VIDEO, use a VIDEO cable
(yellow) instead of the S VIDEO cable.
AUDIO-L
(white)
AUDIO cable
(not supplied)
Satellite receiver
CATV cable
S VIDEO
cable
(not supplied)
AUDIO cable
(not supplied)
75-ohm coaxial
cable (supplied)
S VIDEO cable
(not supplied)
Satellite
antenna
cable
Rear of TV
