Connecting and Setting the TV
VIDEO IN
1
S VIDEO
VIDEO
AUDIO
L(MONO)
R
3
AUDIO IN
5
LR
IN
Connecting a Digital Satellite Receiver with HDMI
Connector
Use this hookup if:
•Your Digital Satellite Receiver has a High-Definition Multimedia
Interface (HDMI).
Disconnect all power sources before making any connections.
Using an HDMI cable (not supplied), connect the Digital Satellite
Receiver’s HDMI OUT connector to the TV’s HDMI IN connector.
Use the HDMI IN 5 connection.
Tip
The HDMI connector provides both video and audio signals, so it is not necessary to
connect the audio cable.

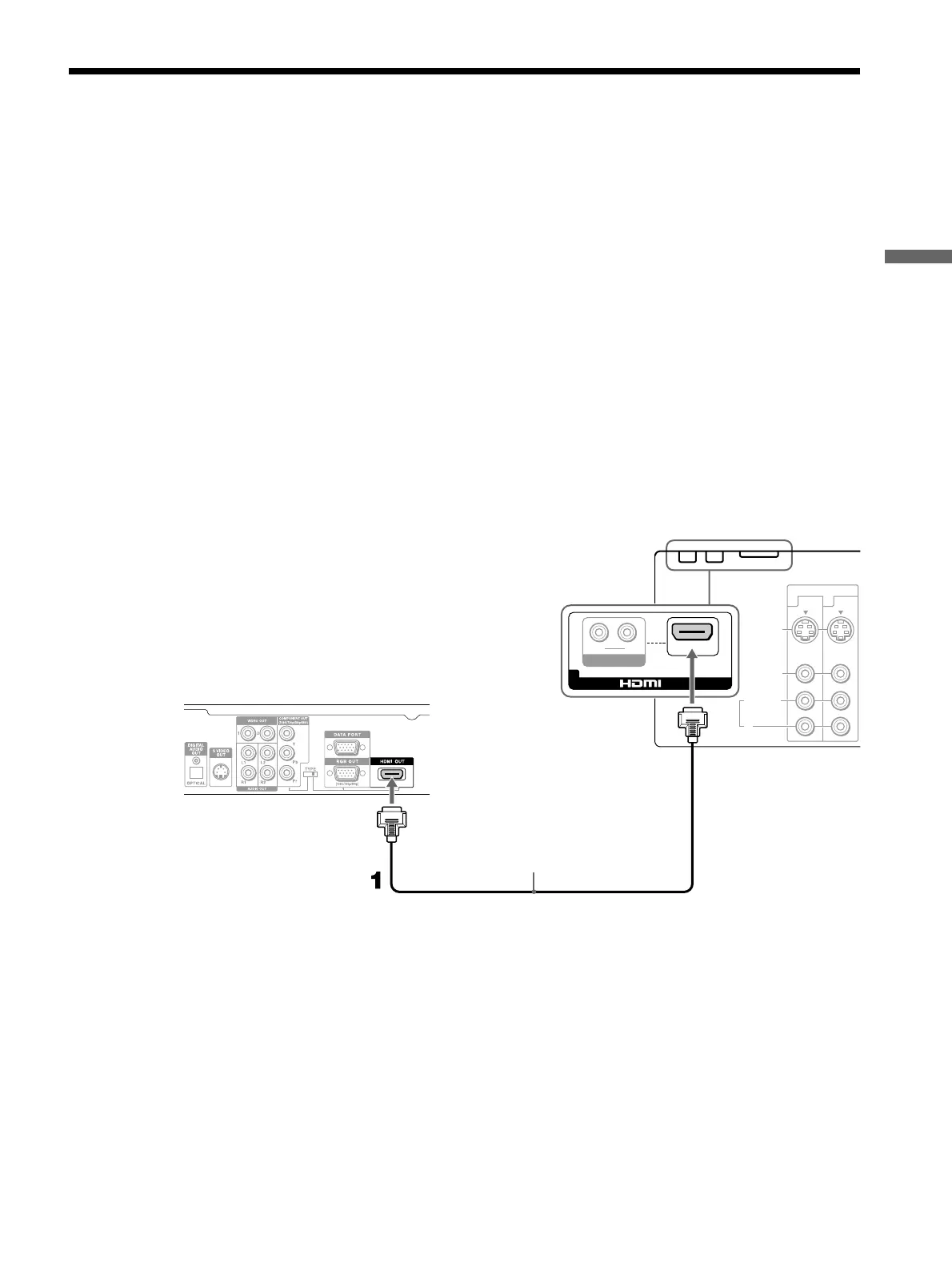

HDMI cable (not supplied)
Digital Satellite Receiver
Rear of TV
(Continued)
To Next Page
