Star Micronics TSP143IIU User Manual

– 21 –
6-3. Self-Printing

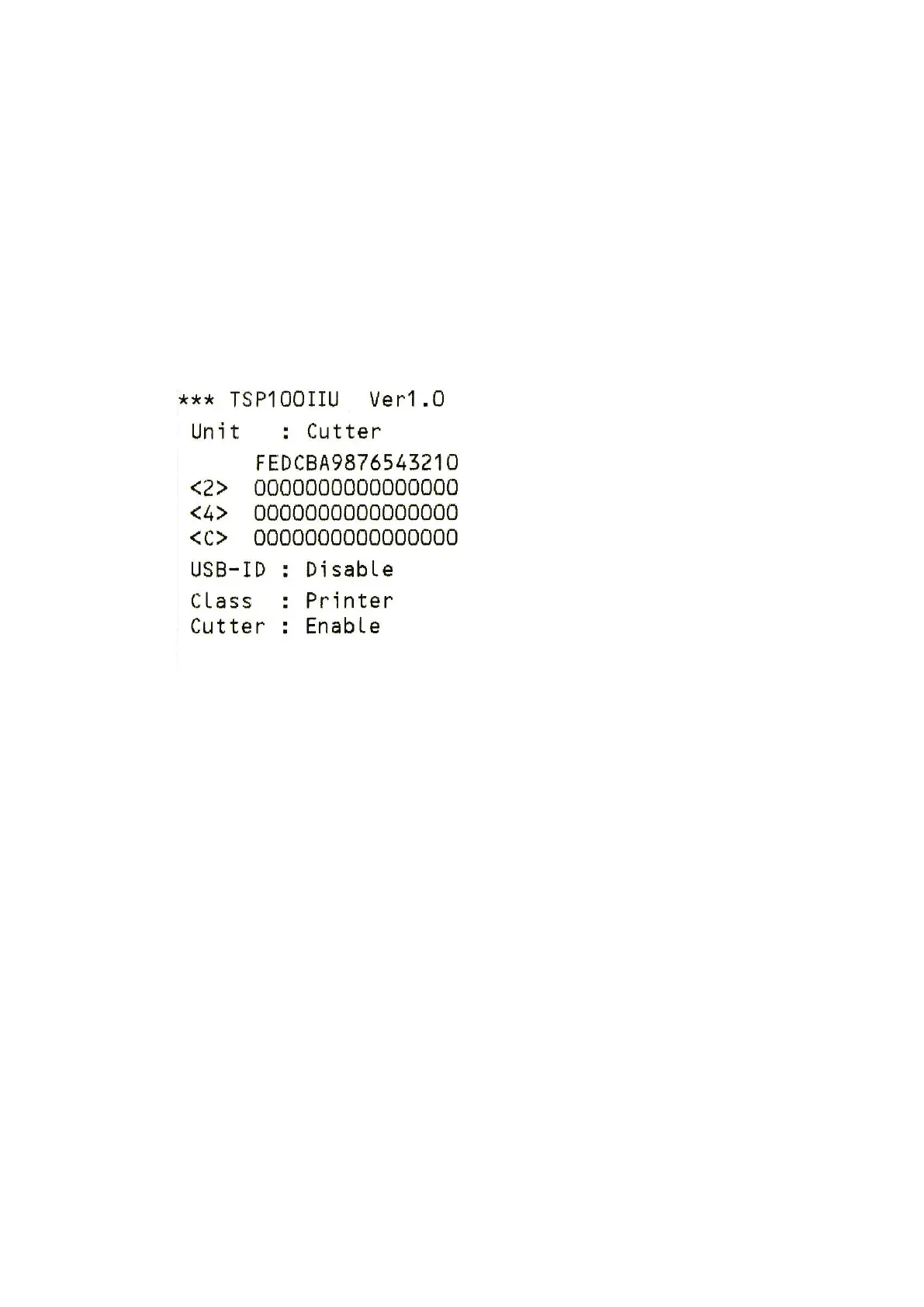

Test Printing
1) Make sure that the computer is turned on.
2) Make sure that the printer’s power cord is plugged into an AC outlet.
3) While holding the FEED button down, connect the USB cable to the computer.
Test printing starts. e version number and printer settings are printed.
Aer the printer starts printing, release your hand from the FEED button.
Aer self-printing is completed, the printer will start in the normal mode.

Star Micronics TSP143IIU Specifications

General

Color	Yes
Print technology	Direct thermal
Maximum print height	8 mm
Standard interfaces	USB
USB 2.0 ports quantity	1
Power consumption	1000 mA
Compatible operating systems	Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.065 - 0.085 mm
Autocutter durability	1 million cuts
Maximum roll diameter	83 mm
Supported paper width	80, 72, 58, 50.8 mm
Product color	White
Certification	UL, C-UL, TüV, FCC, VCCI, EN55022, CE

Weight and Dimensions

Depth	204 mm
Width	142 mm
Height	132 mm
