Star Micronics TSP143IIU User Manual

– 5 –
3. Setup

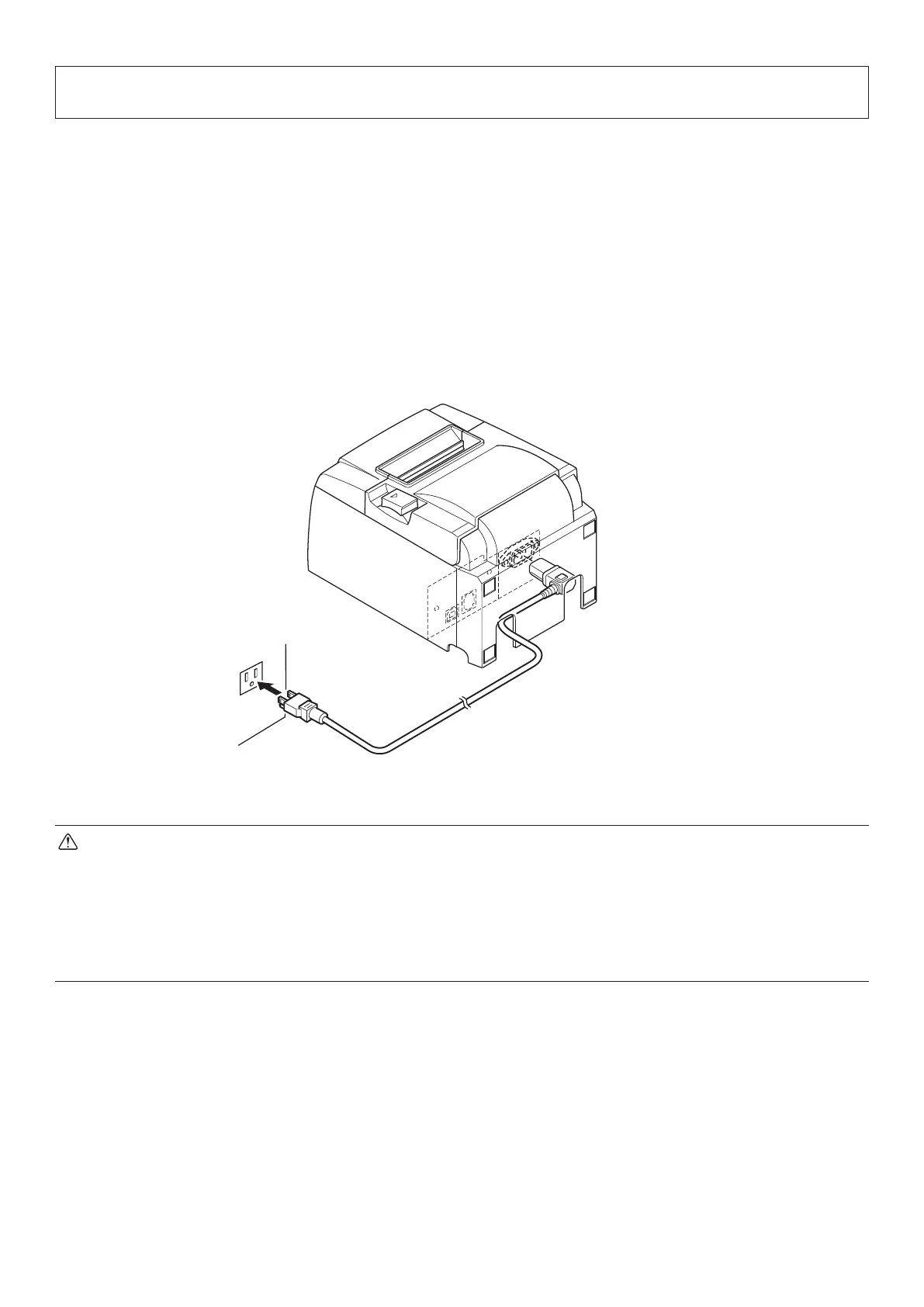

3-1. Connecting the Power Cord
(1) Check the label on the back or bottom of the printer to make sure its voltage matches that
of the AC outlet. Also make sure the plug on the power cord matches the AC outlet.
(2) If the power cord is not attached to the printer, plug the appropriate end into the AC inlet
on the back of the printer.
(3) Plug the power cord into a properly grounded AC outlet.
CAUTION
If the voltage shown on the label on the bottom of your printer does not match the voltage for
your area, contact your dealer immediately.
We recommend that you unplug the printer from the power outlet whenever you do not plan to
use it for long periods. Because of this, you should locate the printer so that the power outlet it is
plugged into is nearby and easy to access.

Star Micronics TSP143IIU Specifications

General

Color	Yes
Print technology	Direct thermal
Maximum print height	8 mm
Standard interfaces	USB
USB 2.0 ports quantity	1
Power consumption	1000 mA
Compatible operating systems	Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.065 - 0.085 mm
Autocutter durability	1 million cuts
Maximum roll diameter	83 mm
Supported paper width	80, 72, 58, 50.8 mm
Product color	White
Certification	UL, C-UL, TüV, FCC, VCCI, EN55022, CE

Weight and Dimensions

Depth	204 mm
Width	142 mm
Height	132 mm
