WORKSHOP MANUAL
3 - ASSEMBLY AND REMOVAL
EDITION
PAGE
14 /37
The equipment is delivered with a belt al-
ready assembled and suitable for use on the Park
4WD machine.
For use on Park 2WD machines, the belt must be
replaced with the one supplied, following the pro-
cedure below.

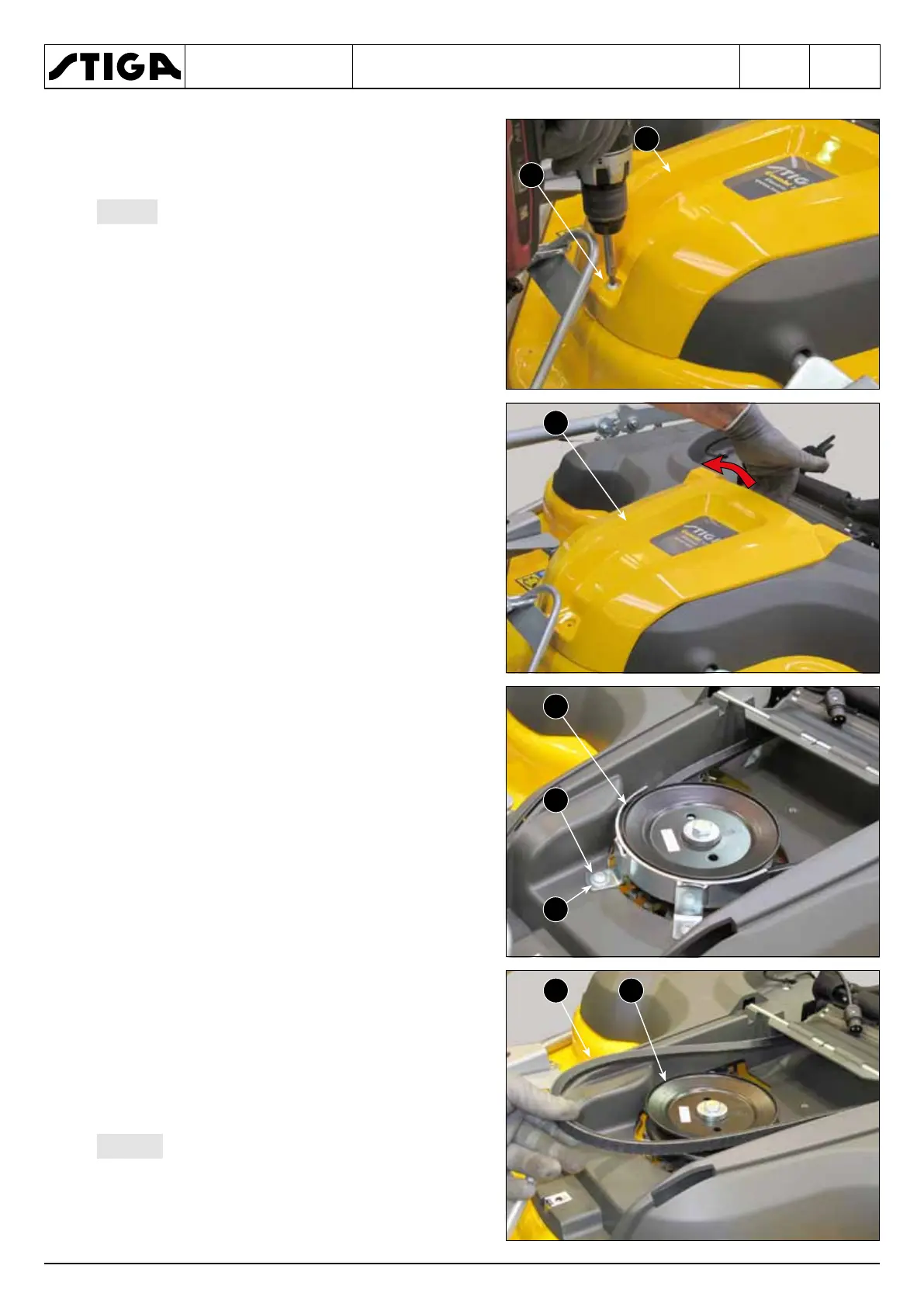

1. Undo the screw (1) and remove the protection
(2) by lifting it from the rear section.
2. Undo the two screws (3) and remove the belt
guide (4).
3. Remove the belt (5) from the pulley (6) and re-
place it with the longer belt supplied.
• 4WD = Short belt
• 2WD = Long belt
4. Reassemble the belt guide (4) and the guard
(2) following the previously described opera-
tions in reverse order.
When reassembling the belt guide (4),
take care to restore the washer (7) under the right
screw (3), to prevent the screw tip from interfering
with the underlying mechanisms.
