WORKSHOP MANUAL
3 - ASSEMBLY AND REMOVAL
EDITION
PAGE
16 /37

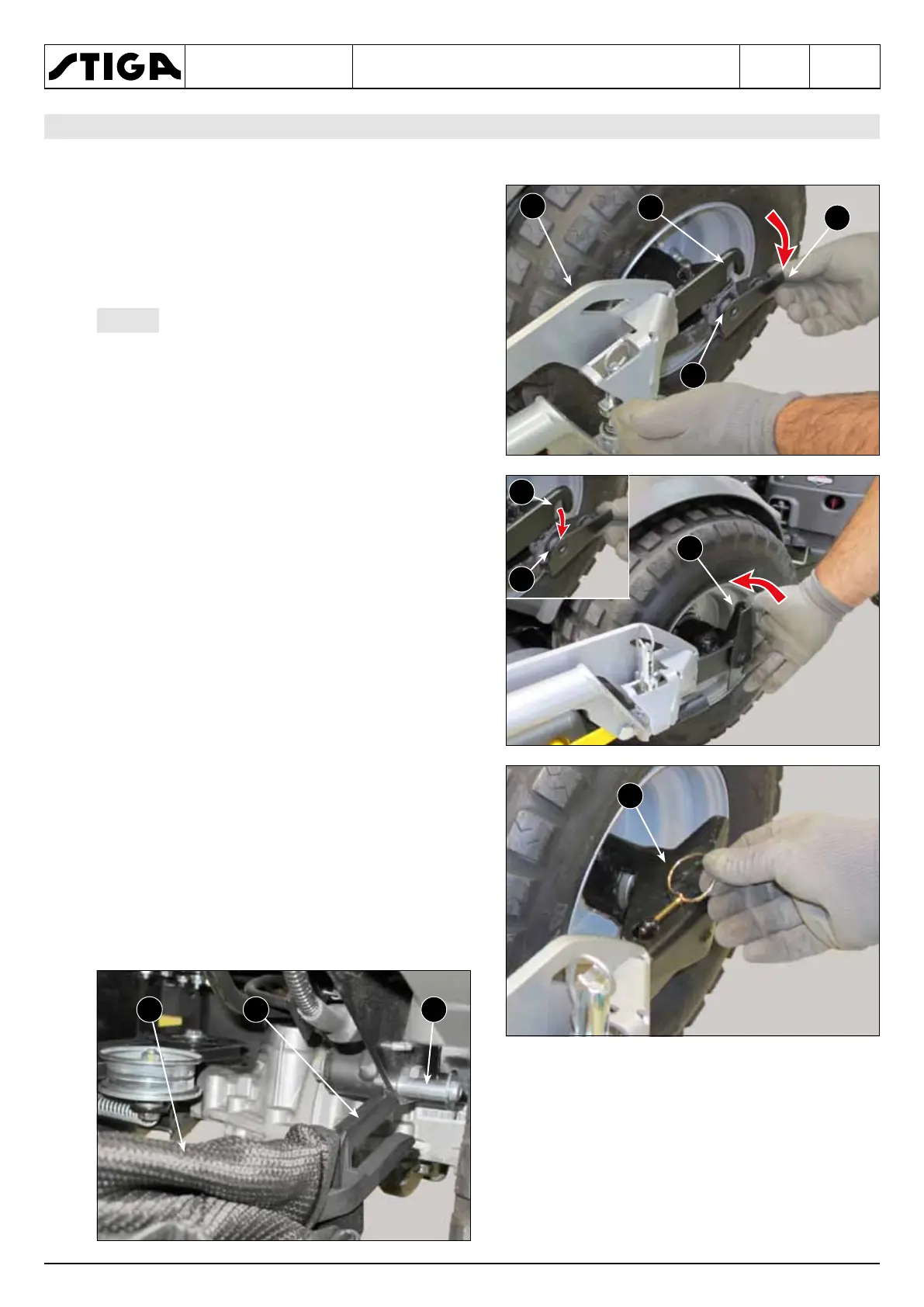

Approach and align the equipment in relation to
the front of the machine.
All the following operations must be per-
formed from both sides of the equipment.
1. Rotate the two quick release levers (1) back-
wards.
2. Keeping the arm (2) raised, approach the
equipment to the machine until the coupling
slot (3) is in line with the pin (4).
3. Lower the arm so that the slot (3) couples with
the pin (4), then bring the lever (1) as far for-
ward as possible.
4. Release the two quick release levers (1) using
the safety split pins (5).
5. Couple the two fork terminals (6) of the belt
guard (7) to the two pins (8) located inside
the front wheels of the machine.
