Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
2 Frame and Covers
Page
20

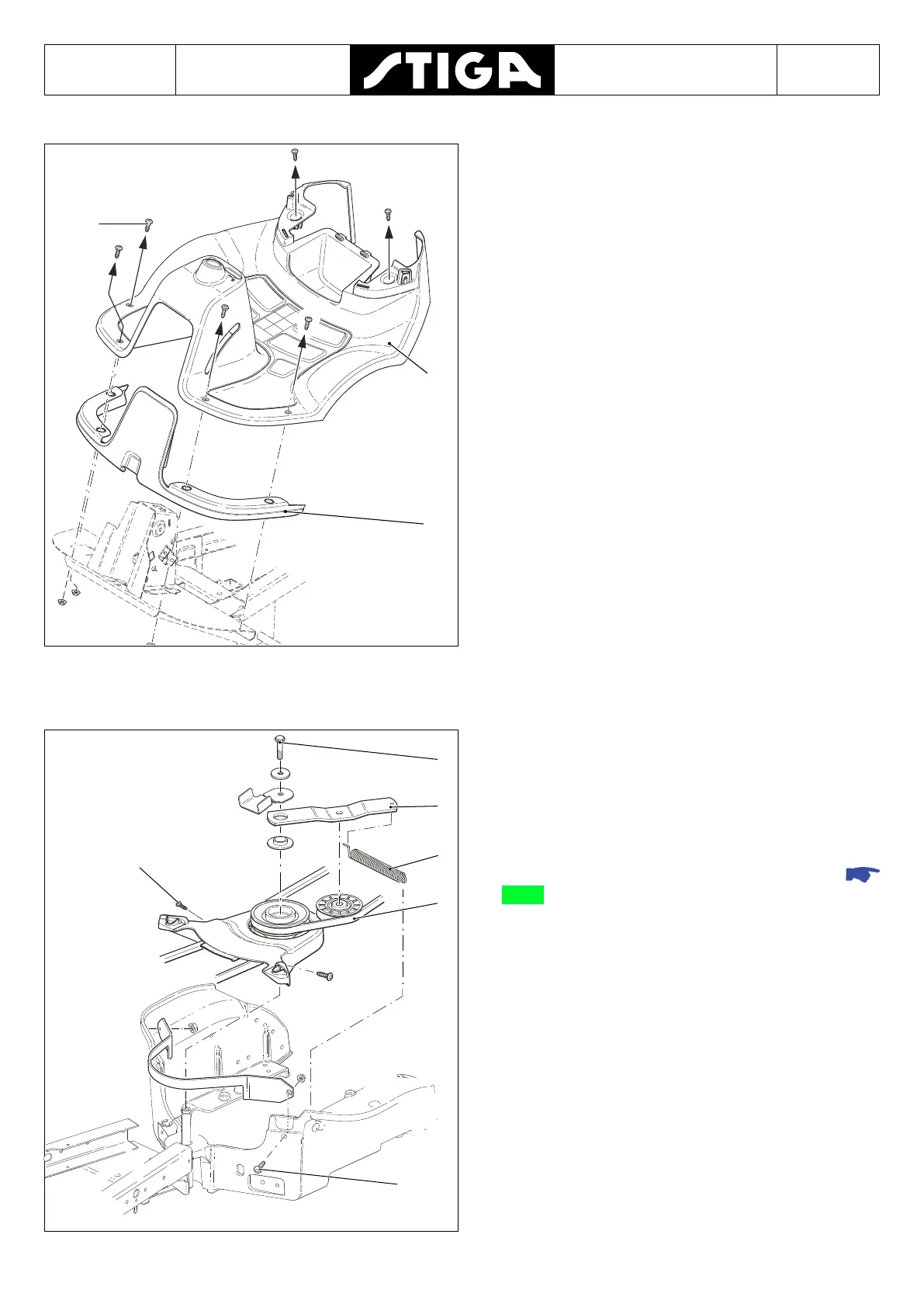

Removal of the front cover
A (6x)
C
B
1. Loosen the six screws (A-Torx T30) that hold
the covers (B-C) in place.
To reassemble the various parts, repeat the operations in reverse order.
2.1.4 Removing the belt cover at the centre of the machine
B
C
A
D
F (2x)
E (2x)
1. Remove the engine cover; for details
2.1.1
2. Remove the spring (A) to tension arm from the
frame.
3. Unscrew the bolt (B) (13 mm wrench).
4. Remove the tension arm (C).
5. Remove the belt (D) from the pulley.
6. Disassemble the lower belt cover, two screws
(E-Torx wrench T30 + 10mm wrench).
7. Disassemble the upper belt cover, two screwsi
(F).
To reassemble the various parts, repeat the operations in reverse order.
