Workshop Manual
PARK 120 - PARK 220
Chapter
6 Control cables
Page
49
6.5 Accelerator cable
6.5.1 Disassembly

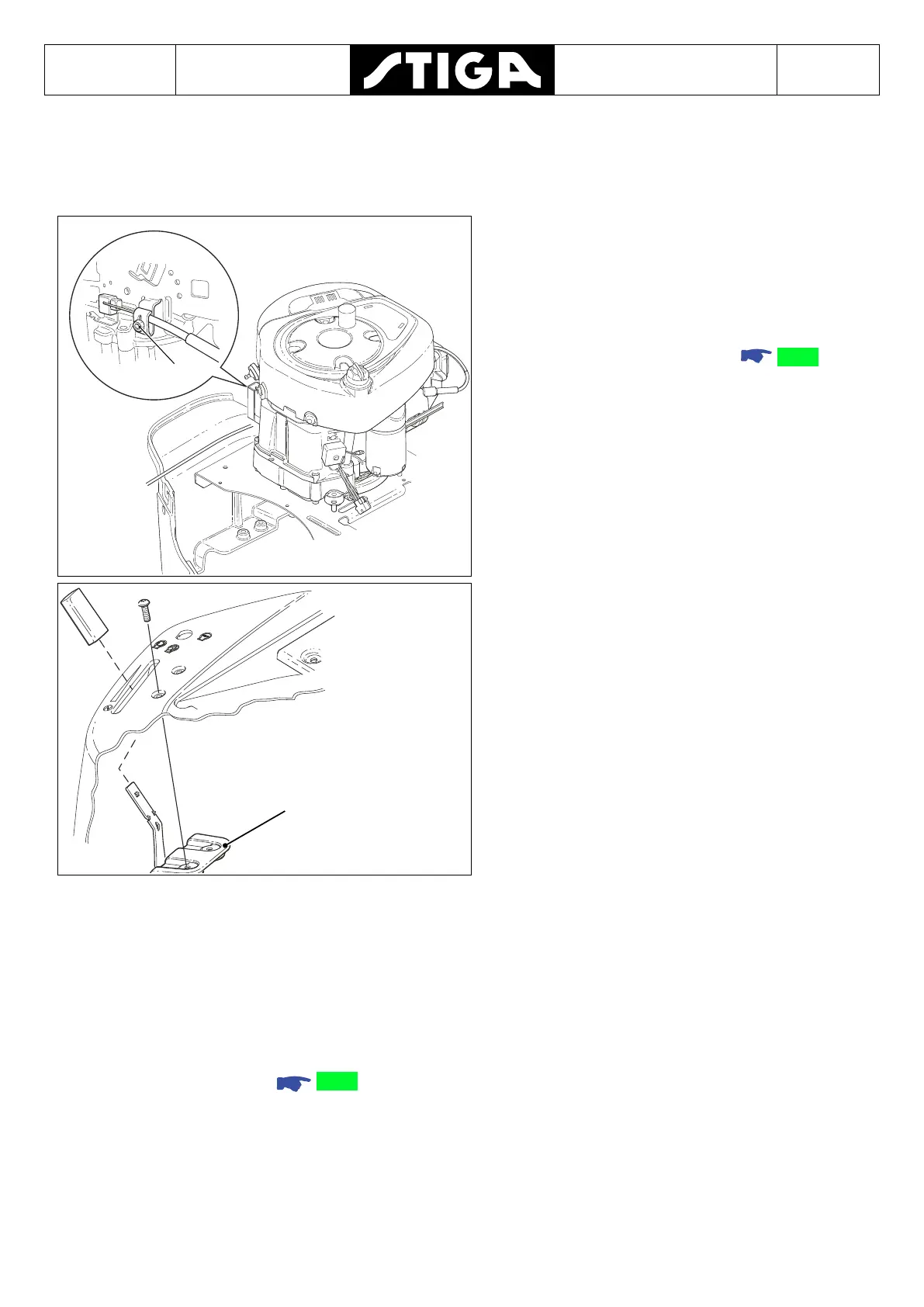

A
1. Remove the engine casing 2.1.1
2. Release the cable (A) from the engine.
3. Pull the cable unit through the centre of the
machine, passing it under the seat.
B
4. Disassemble the accelerator control (B).
5. Pull the accelerator control back and the cable
until it comes out from under the plastic cover.
6. Detach the cable unit from the accelerator
control.
6.5.2 Assembly
1. Pour some oil drops on the two cable terminals and move the wire a few times inside its
sheath.
2. Route the cable through the same previous cable path.
3. Mount the new xing clamps in the exact point of the previous ones.
4. Adjusting the cable
