Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
6 Control cables
Page
46

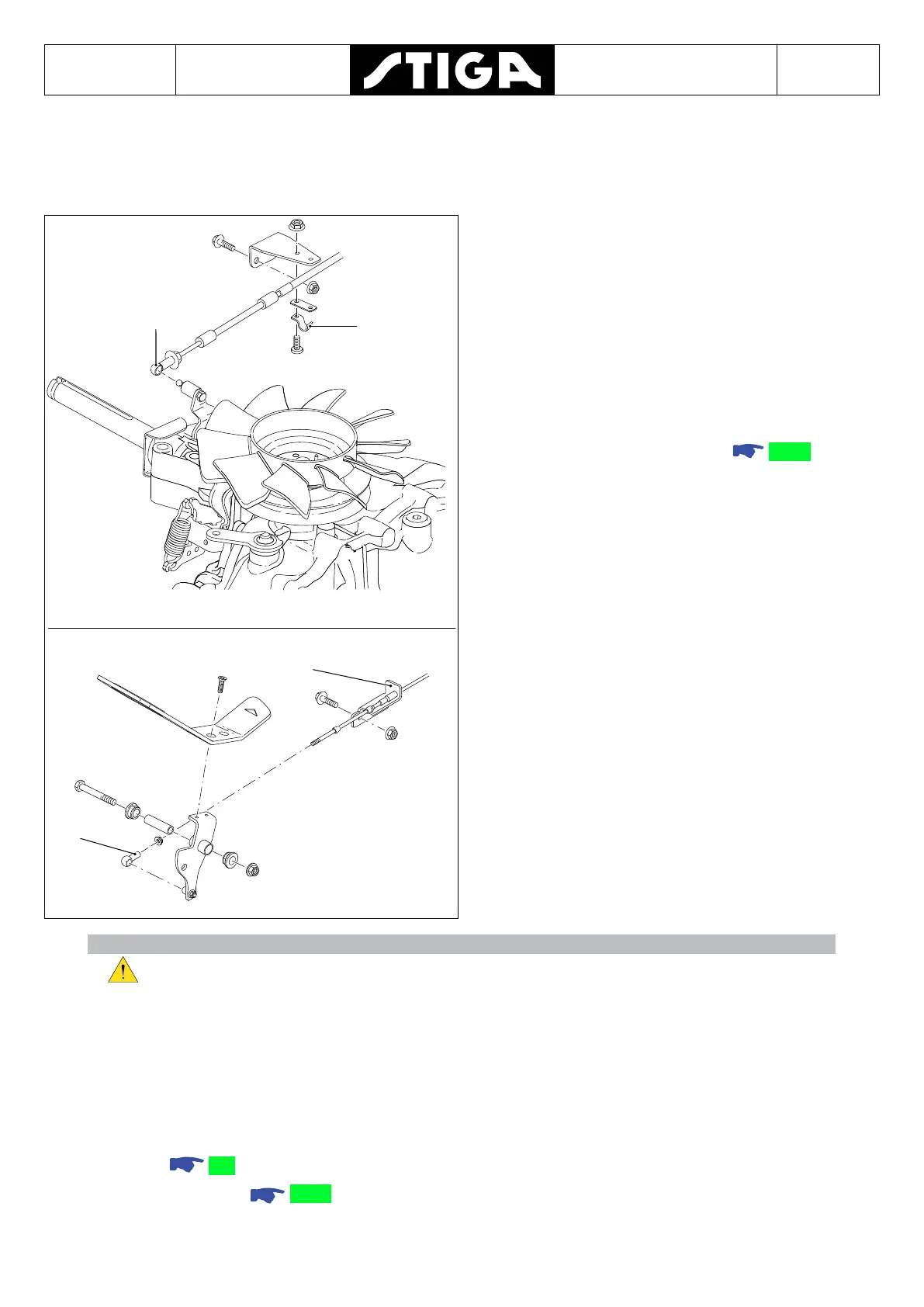

6.3 HST control cable
6.3.1 Disassembly
C
D
A
B
1. Remove the engine casing. 2.1.1
2. Detach the cable from the bracket (A) and the
body of the elbow connector (B) from the ball
on the transmission.
3. Detach the cable from the bracket (C) and the
body of the elbow connector (D) from the ball
on the pedal bracket.
4. Remove all the cable ties. Make a note of how
the cables and cables ties are connected to
ensure that the new components are rein-
stalled in exactly the same way.
5. Remove the elbow connectors from the cable.
Caution!
The bodies of the elbow connectors need to be reused in the reassembly stage.
6.3.2 Assembly
1. Pour some oil drops on the two cable terminals and move the wire a few times inside its
sheath.
2. Feed the cable inside starting from the machine rear side.
(The arrow printed on the cable points to the front of the machine).
3. Check the angle ball joints, replace them if worn or damaged, special instructions shall be
observed
6.2.
4. Adjusting the cable 6.3.3.
