Edition
2016
Workshop Manual
PARK 120 - PARK 220
Chapter
5 Belts
Page
36

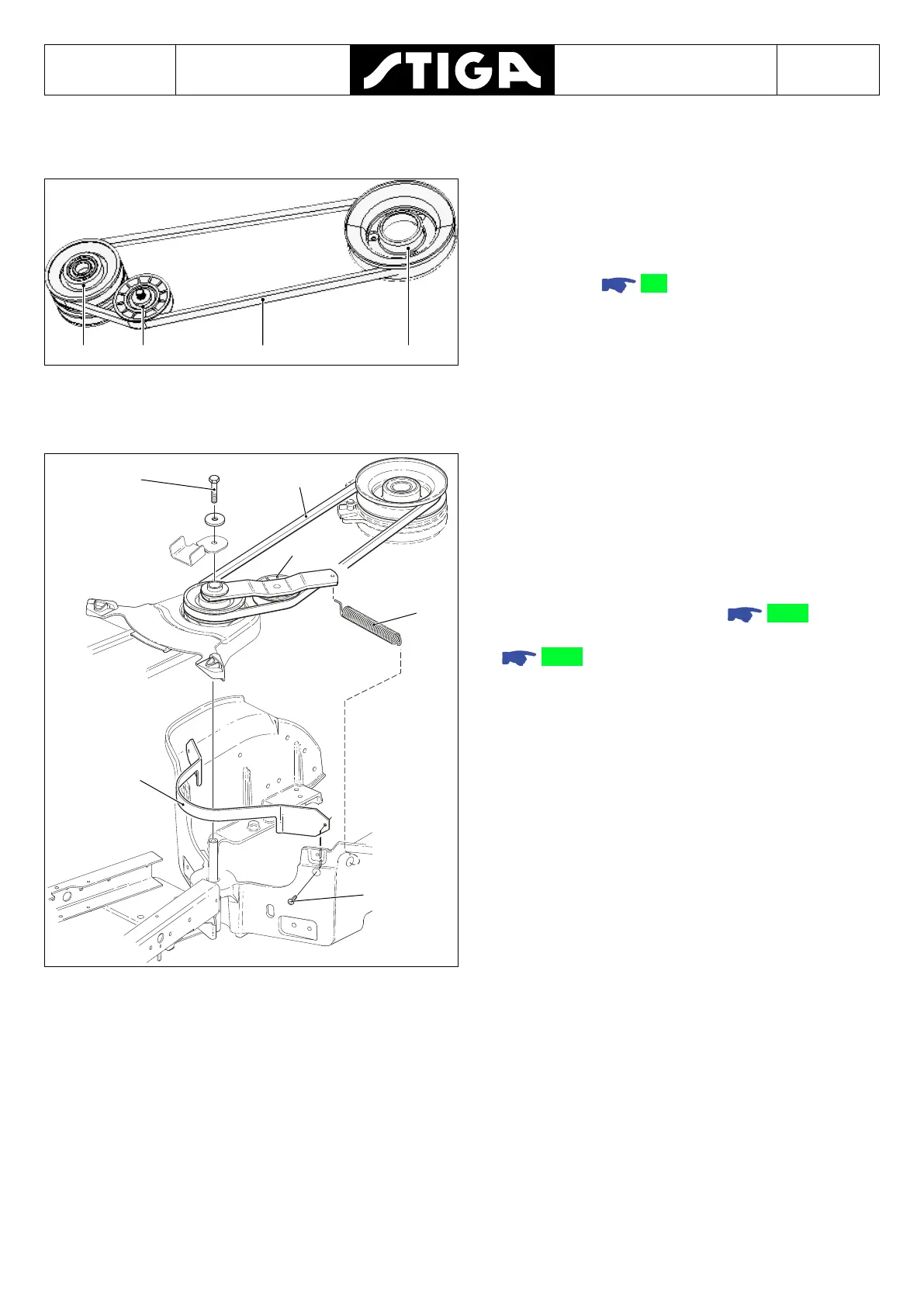

5.2.3 Operating equipment (C) clutch belt.
For greater understanding on how the belts are
positioned, see
5.2.
Disassembly
14
C
13
6
12
(2x)
1. Remove the engine casing 2.1.1
2. Remove the belt (D) from the transmission
5.2.2.
3. Remove the upper belt casing (12), two
screws.
4. Remove the spring (13) from the tensioning
arm on which the tensioning pulley (6) is
installed.
5. Unscrew the central top bolt (14) and move
the tensioning arm sideways.
