Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 2 Chassis and Body 8
2.2 Lubrication chassis
All moving parts shall be lubricated once per
season, although at least every 50 operating
hours.
Note!
Lubrication is equally important for a
machine that is only used for a few hours
per year.
Note!
The lubricant provides not only
protection from wear but also from rust.
Note!
The machine should always be
lubricated before prolonged storage.

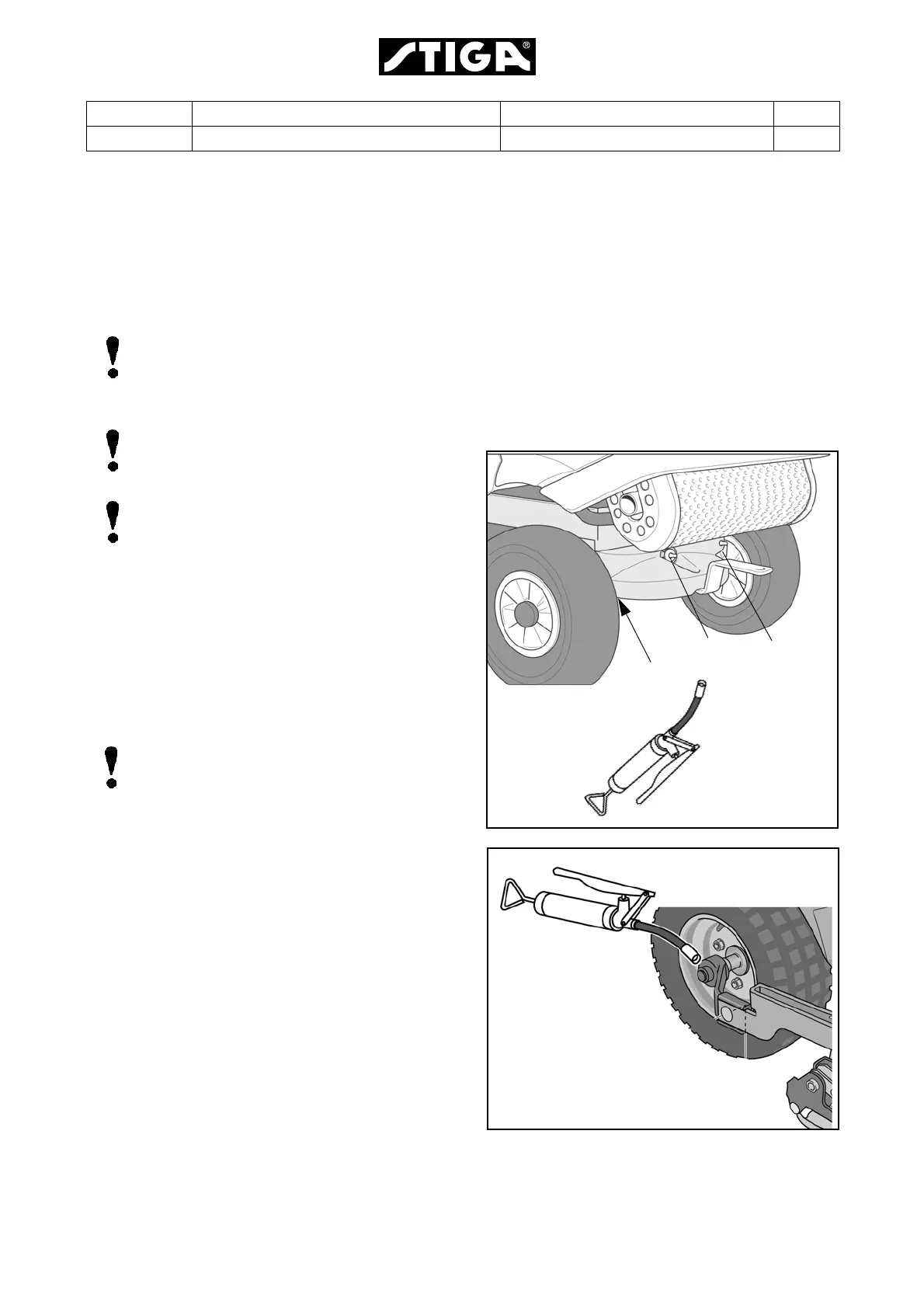

2.2.1 Steering pivot pins and beam
pivot
Use a grease gun, filled with universal grease
and lubricate the steering pivot pins (A) and the
beam pivot (B). Lubricate until grease
emerges.
Note!
To lubricate the beam pivot (B) it might
be nessecary to dismount the towing
hitch.
2.2.2 Implement mountings
Lubricate the lubricating cup for the mountings
using a grease gun until grease penetrates
along side the shaft.
A
B
A
