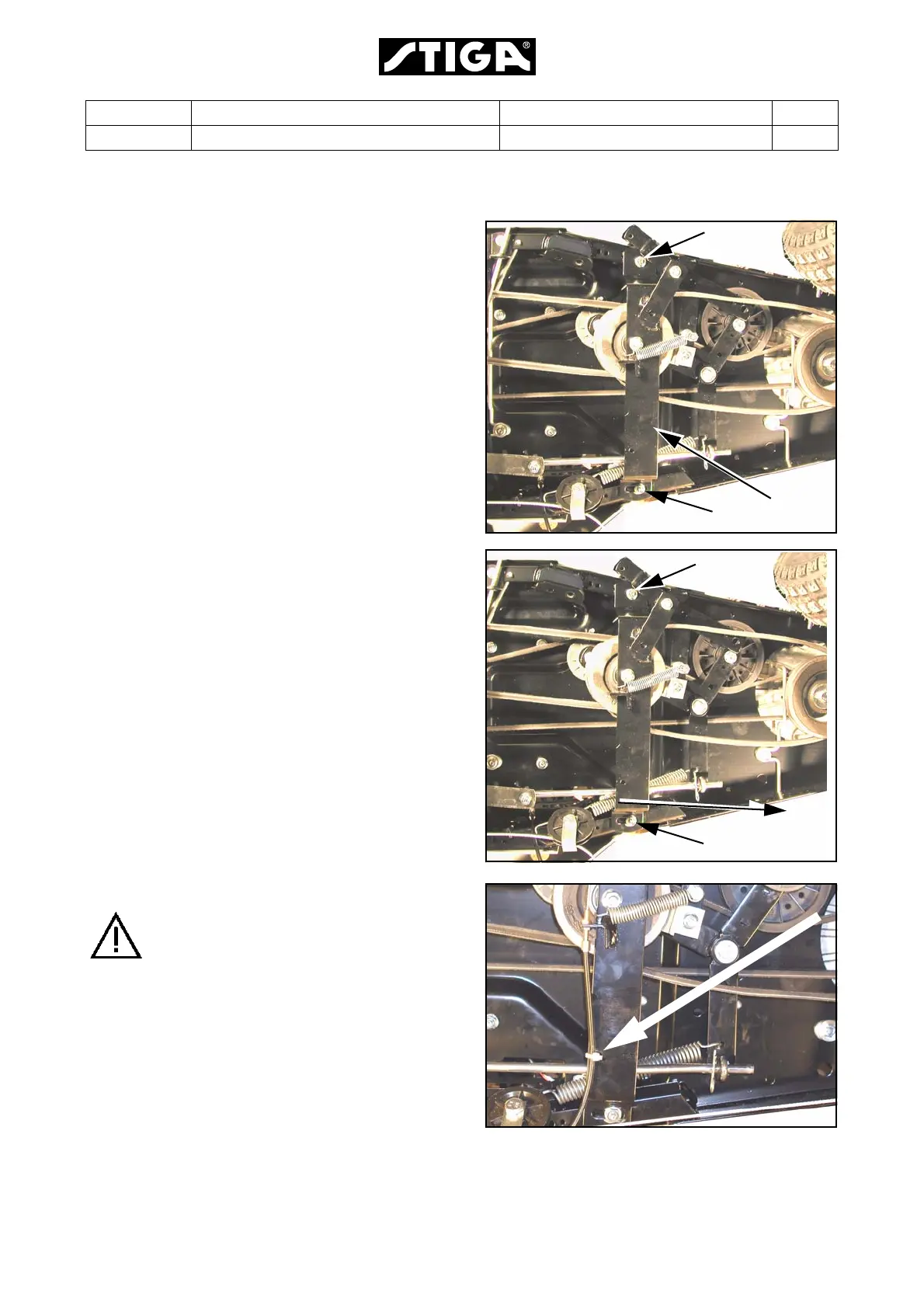

5.4 Adjustments
5.4.1 Adjustment of belt B
Adjust the tension of belt B as follows:
1. Loosen the two screws (L and M) a few
turns.
2. Tension the belt by pulling the right end of
the pulley bar (F) backwards by using a
spring scale. Pull with a force of 85 N.
3. Tighten, simultaneously as the force is
applied, the two screws (L and M).
4. Fit a new fixing strap to the PTO wire.
VARNING!
If the fixing strap is omitted, the wire
will interfere with the steering wire
and be destroyed.
F
M
L
M
L
85 N
