2008-05-19 Workshop Manual, Stiga Villa/Ready 5 Belts 5

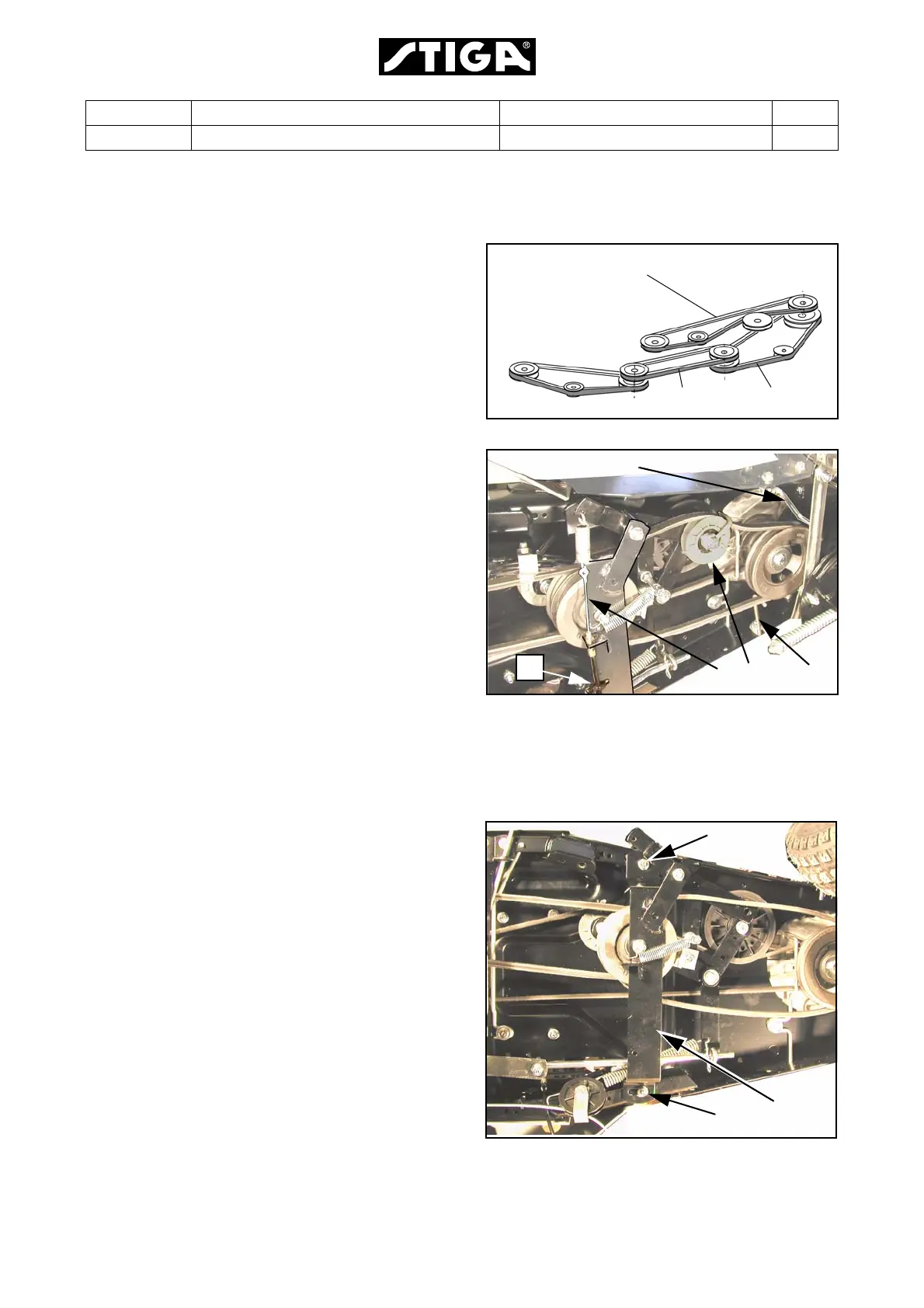

5.3 Replacement of belts
This section describes the belt changing of belt
D. For changing other belts, see actual parts of
the belt D description.
5.3.1 Disassembly of belt D
The belt D is intended to conduct the engine
power to the front driving (HST or manual
gearbox). The belt is controled by a 3-armed
lever for the clutch function.
Dismantle the belt as follows:
1. Raise the machine by one of the alternatives
below:
• With a highjack or similar and place 4
yokes under the shafts.
• With a lifting table.
2. Remove the following:
• Belt guides (X and Y)
• Pulley (8)
• Wire (Z) with its spring and adjuster.
3. Cut off the holding strap (E) for the wire.
4. Unscrew the two screws and nuts, holding
the adjustable pulley bar (F). Remove the
pulley bar with belt C.
5. Unhook and work off the belt C.
D
CB
X
Y8Z
E
F
