Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 5 Belts 2
5.1 Description
Belt A
Belt A belongs to the work equipment and is
connected to the machine at the front right
pulley. The belt is tensioned by the tension
pulley (2) which is mounted on a spring
loaded lever.
Belt B
Belt B is intended to deliver motor power to
the front right pulley, where it can be picked
up of the work equipment.
Belt C
Belt C transmitts the power to belt B and
performs the mechanic PTO clutch function
together with the pulley (8).
Engagement/disengagement of the
mechanic PTO is performed by moving the
pulley (8) to stretch/slacken the belt.
Belt D
Belt D is intended to transmitt the motor
power to the transmission, where it is geared
to a suitable ratio for the drive shaft. The belt
is tensioned by the tension pulley (7) which
together with the belt performs the clutch
function.
The tensioning force is disengaged from the
belt when the parking brake is activated.

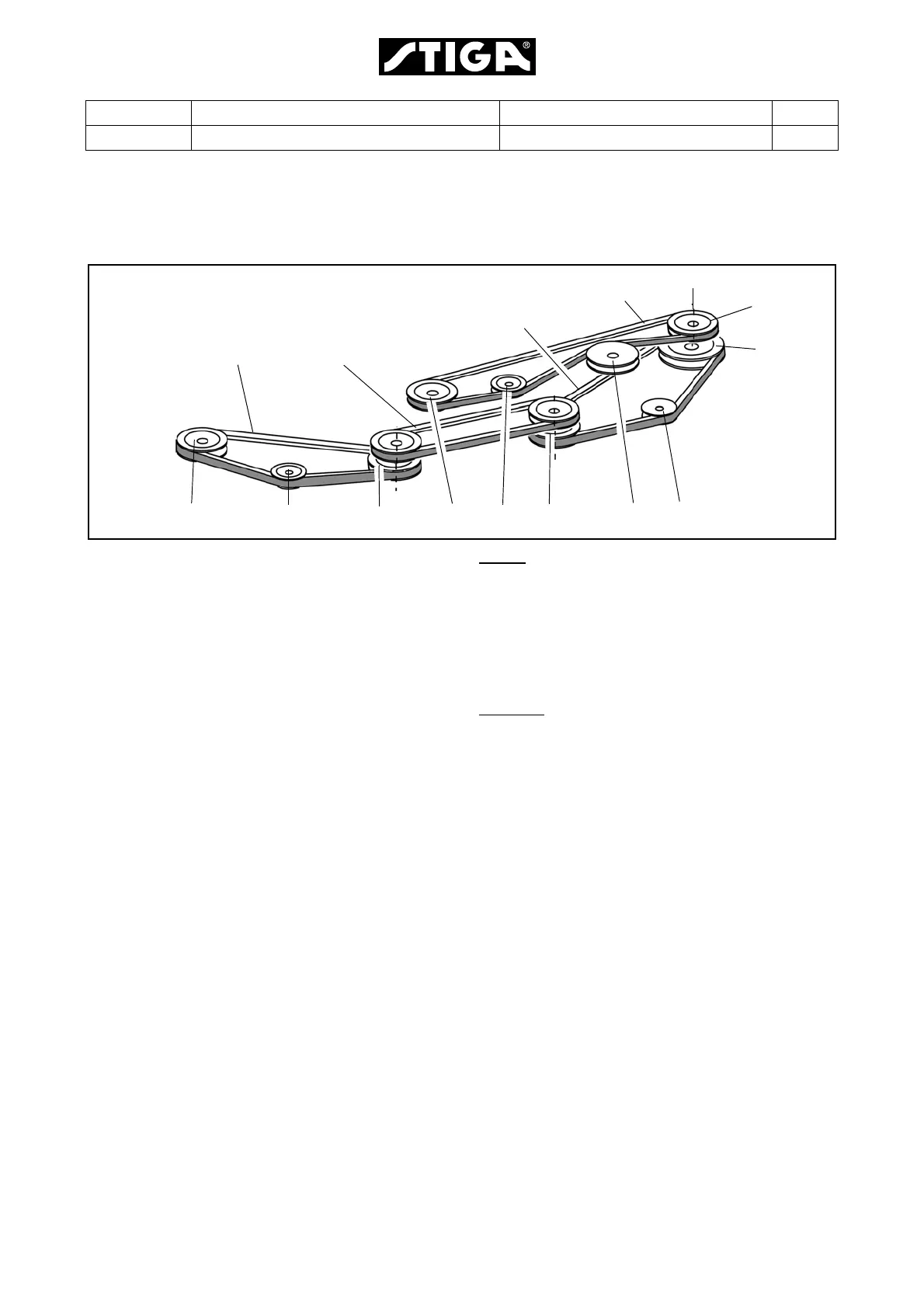

AB
C
D
123 45678
9
10
Motor
Belts:
A. Work equipment belt (belongs to the
work equipment).
B. Work equipment belt.
C. Work equipment clutch belt.
D. Transmission belt.
Pulleys:
1. Pulley at the work equipment.
2. Tension pulley.
3. Pulley (double).
4. Pulley at the transmission.
5. Tension pulley with the clutch function
(works on the same lever as pulley 7).
6. Transmission pulley (double).
7. Tension pulley with the clutch function
(works on the same lever as pulley 5).
8. Tension pulley (for mechanic PTO also
clutch pulley for the PTO)
9. Drive pulley at the motor shaft.
10.Drive pulley at the motor shaft.
