Stiga VILLA 2003 - Steering Wire;Chain; Description

Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 3 Steering 2
3.1 Steering wire/chain
3.1.1 Description
There are two configurations regarding to
transmit the steering power from the steering
wheel to the rear wheels:
• Wire; One single wire with a defined location
at the drive pulley.
• Chain/wire; Two wires, left and right, fitted to
a chain which is connected to the steering
pulley.

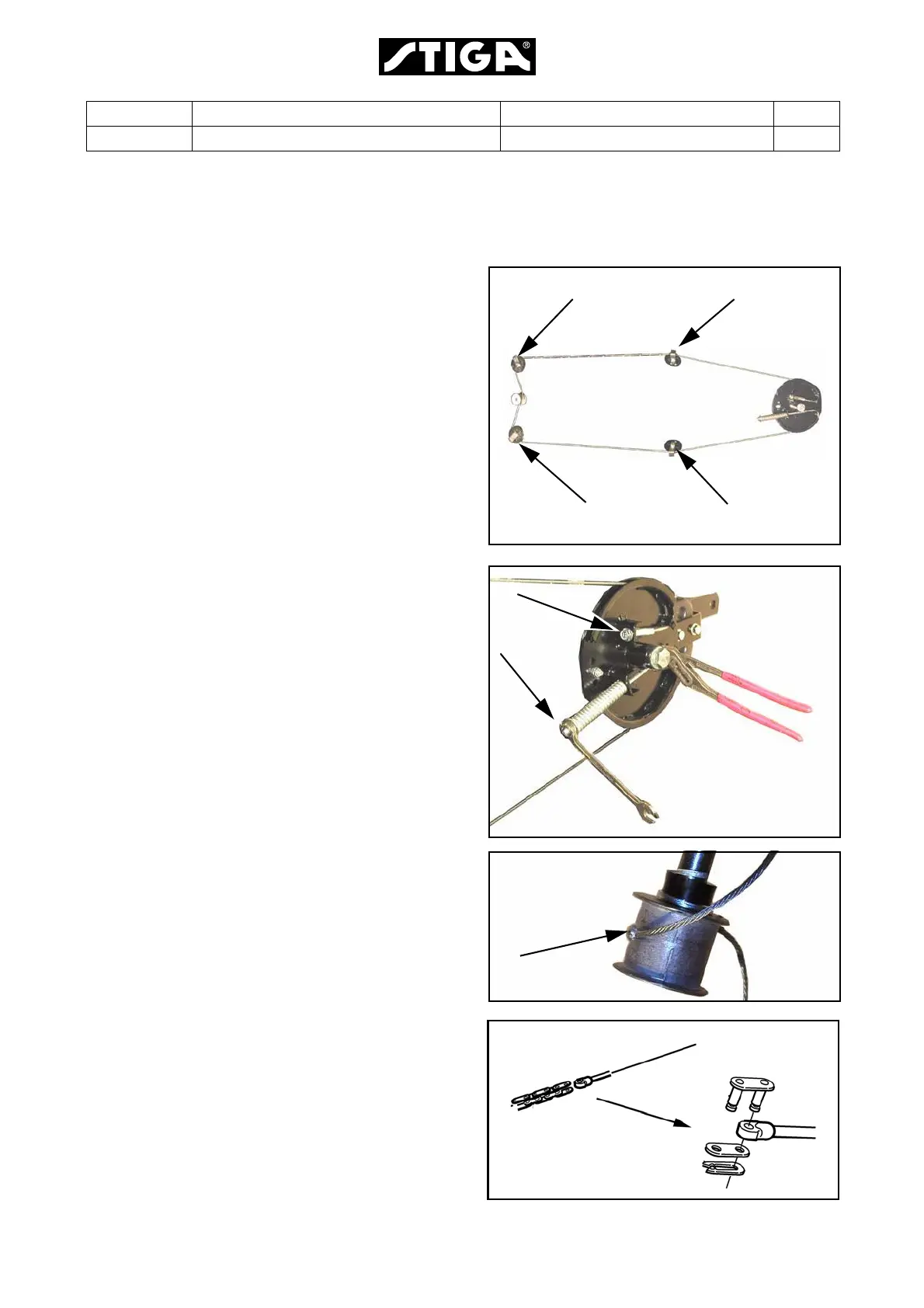

3.1.2 Dismantling
1. Wire:
Remove the four steering pulleys (A and B).
Use a 15 mm and a 17 mm wrench.
Chain/Wire:
Remove the two steering pulleys (A). Use a
15 mm and a 17 mm wrench.
2. Remove the nut and screw, holding the wire
ends (C). Use a 13 mm wrench and a pliers
to hold the wire ends.
3. Remove the wire from the machine.
Wire:
Pull out the wire rivet from the steering pulley
and release the wire.
Chain/Wire:
Open the chain locks and release the wires
from the chain.
AB
BA
Wire
Chain/Wire
