Stihl FS 380 User Manual

FS 300, FS 350, FS 380
English
60

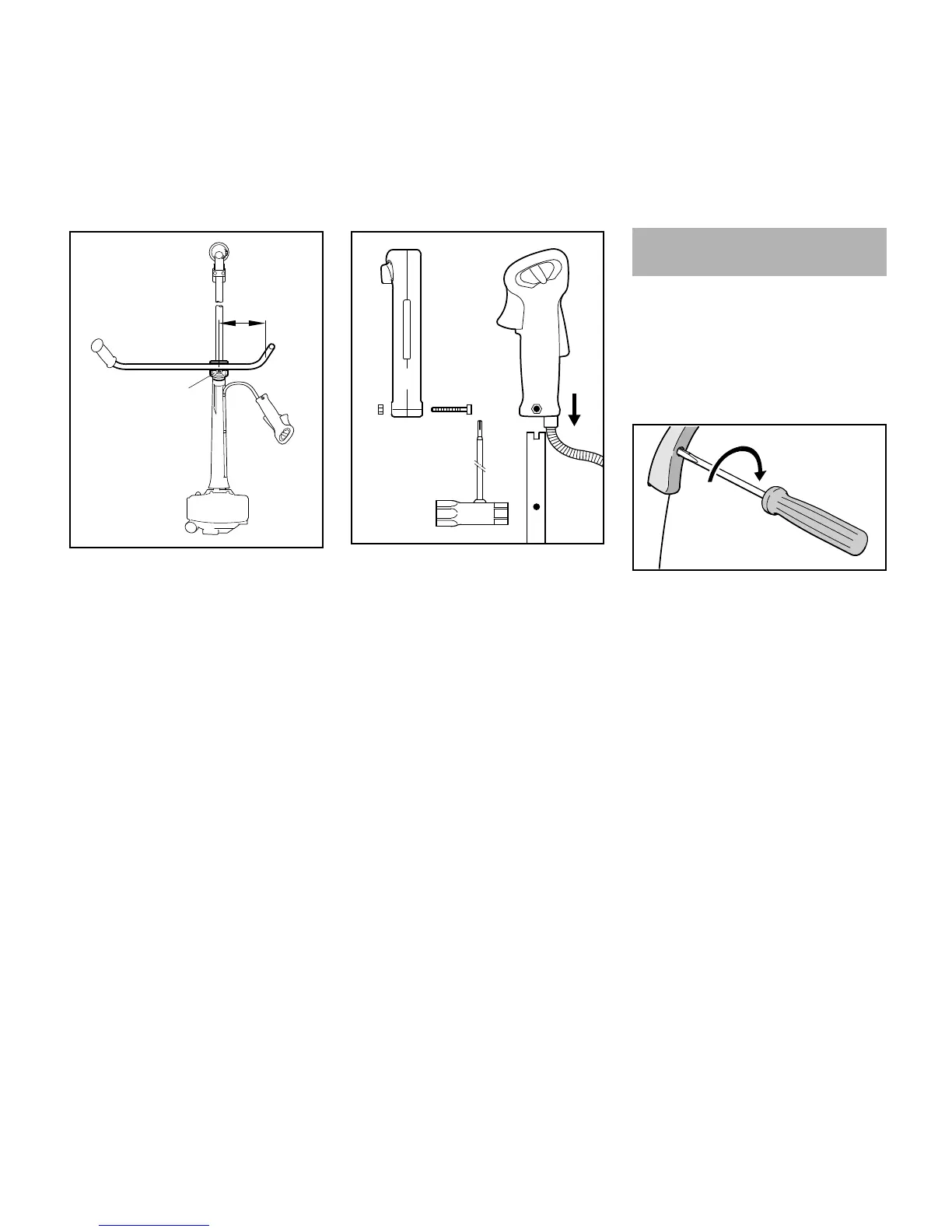

N Place the handlebar (4) in the lower
clamp (1) so that distance A is no
more than 15 cm.
N Place the upper clamp in position
and press it down.
N Insert the clamping screw.
N Line up the handlebar at a right
angle to the drive tube.
N Tighten down the clamping screw
firmly.
N Take out the screw (5), the nut (6)
remains in the control handle (7).
N Push the control handle onto the
end of the handlebar (4) until the
holes (9) line up – the throttle
trigger (8) must point towards the
gearbox.
N Insert the screw and tighten it down
firmly.
N Go to "Adjusting the Throttle Cable".
Transport and storage position: Loosen
the clamping screw, turn the handlebar
in line with the drive tube and fold the
handles down.
It may be necessary to correct the
adjustment of the throttle cable after
assembling the machine or after a
prolonged period of operation.
Adjust the throttle cable only when the
unit is completely and properly
assembled.
N Set the throttle trigger to the full
throttle position.
N Carefully rotate the screw in the
throttle trigger in the direction of the
arrow until you feel initial resistance.
Then rotate it another half turn in the
same direction.
A
4
1
256BA002 KN
9
5
7
8
4
9
002BA256 KN
6
7
Adjusting the Throttle Cable
002BA655 KN
