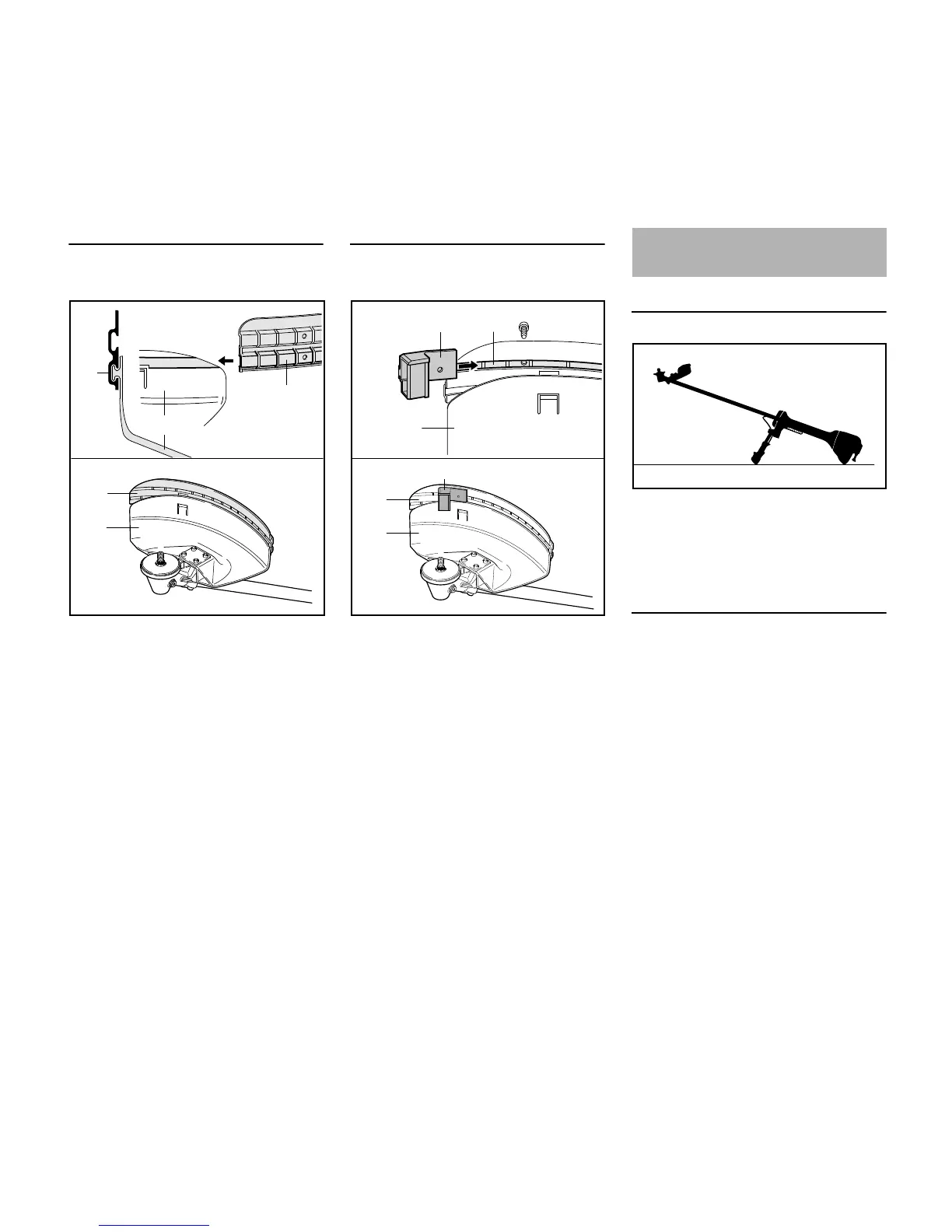

Fitting the Skirt
When using mowing heads
The deflector for metal mowing
attachments (1) must be equipped with
the skirt (2) when you use mowing
heads.
N Slide the lower guide slot (3) of the
skirt (2) onto the deflector (1) – it
must snap into position.
Mounting the Blade
When using nylon line mowing heads
The deflector for metal mowing
attachments (1) must be equipped with
the line limiter blade (4) when you use
nylon line mowing heads.
N Push the blade (4) into the upper
guide slot (5) on the skirt (2) and
line it up with the first hole.
N Insert the screw and tighten it down
firmly.
Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Mounting hardware
Dependent on the cutting attachment
supplied as original equipment with a
new machine, the mounting hardware
supplied can also vary.
The mounting hardware is attached to
the gearbox for transport and has to be
removed before fitting a cutting
attachment.
2
1
3
2
002BA526 KN
1
4
002BA527 KN
5
1
4
1
2
Mounting the Cutting
Attachment
002BA406 KN
