Stihl FS 380 User Manual

FS 300, FS 350, FS 380
English
61

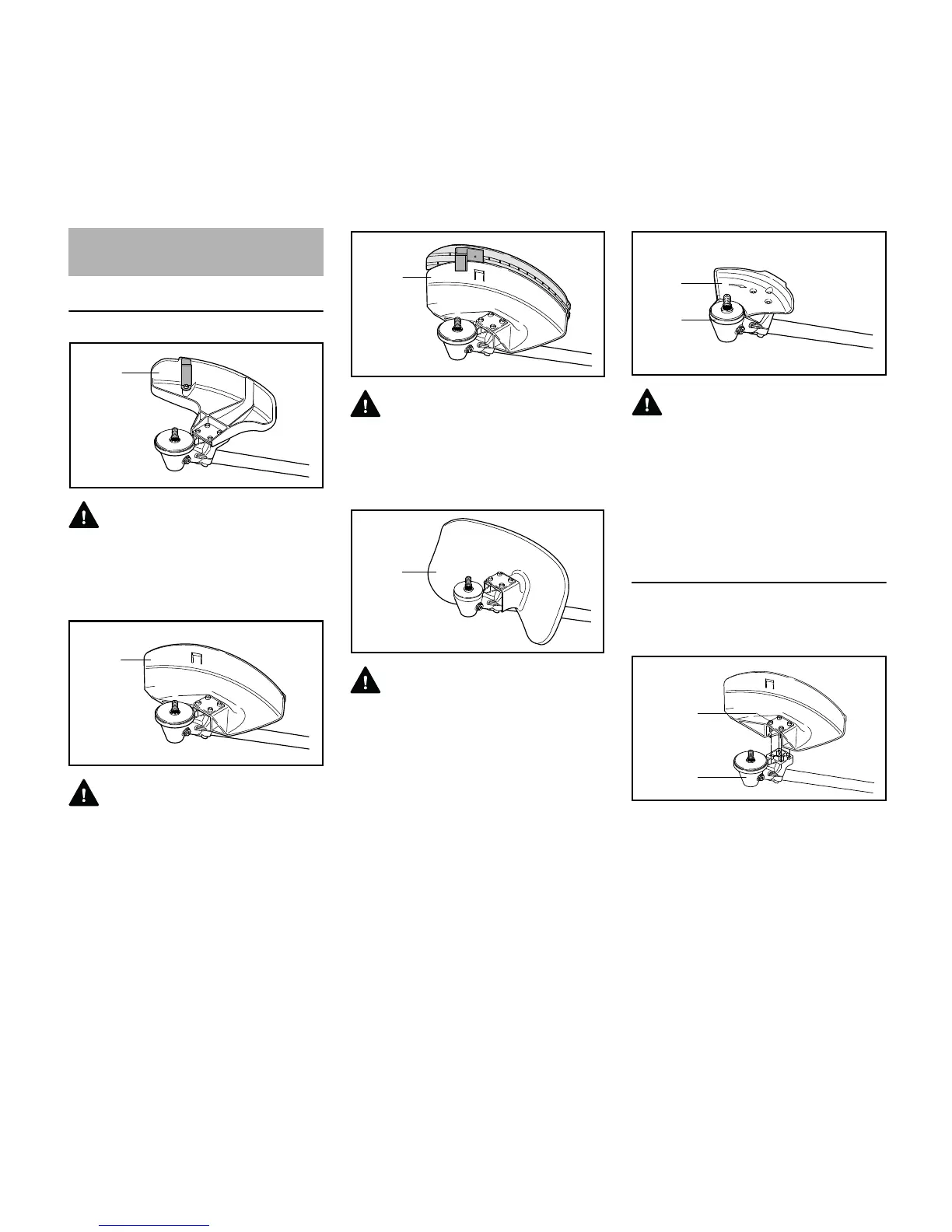

Using the proper deflector
WARNING
Deflector (1) is approved only for
mowing heads, thus deflector (1) must
be attached before attaching a mowing
head.
WARNING
Deflector (2) is approved only for brush
knives, thus deflector (2) must be
attached before attaching a brush knife.
WARNING
Deflector (2) is also approved for
mowing heads if a skirt and blade are
attached – see “Mounting the skirt and
blade”.
WARNING
Deflector (3) is approved only for
shredder blades, thus deflector (3) must
be attached before attaching a shredder
blade.
WARNING
Limit stop (4), which acts as a deflector,
is approved only for circular saw blades,
thus limit stop (4) must be attached and
guard ring (5) replaced before attaching
a circular saw blade, see "Mounting the
cutting attachment" / "Circular saw
blades".
Installing the deflector
The deflectors (1 to 4) are attached to
the gearbox in the same manner.
N Remove dirt from the joints on the
gearbox and deflector – do not allow
any dirt to enter the threaded holes
of the gearbox
N Set the deflector on the gearbox (6),
N Screw in and tighten the screws (7)
Mounting the Deflector
002BA513 KN
1
002BA514 KN
2
002BA515 KN
2
002BA516 KN
3
002BA517 KN
4
5
002BA520 KN
6
7
