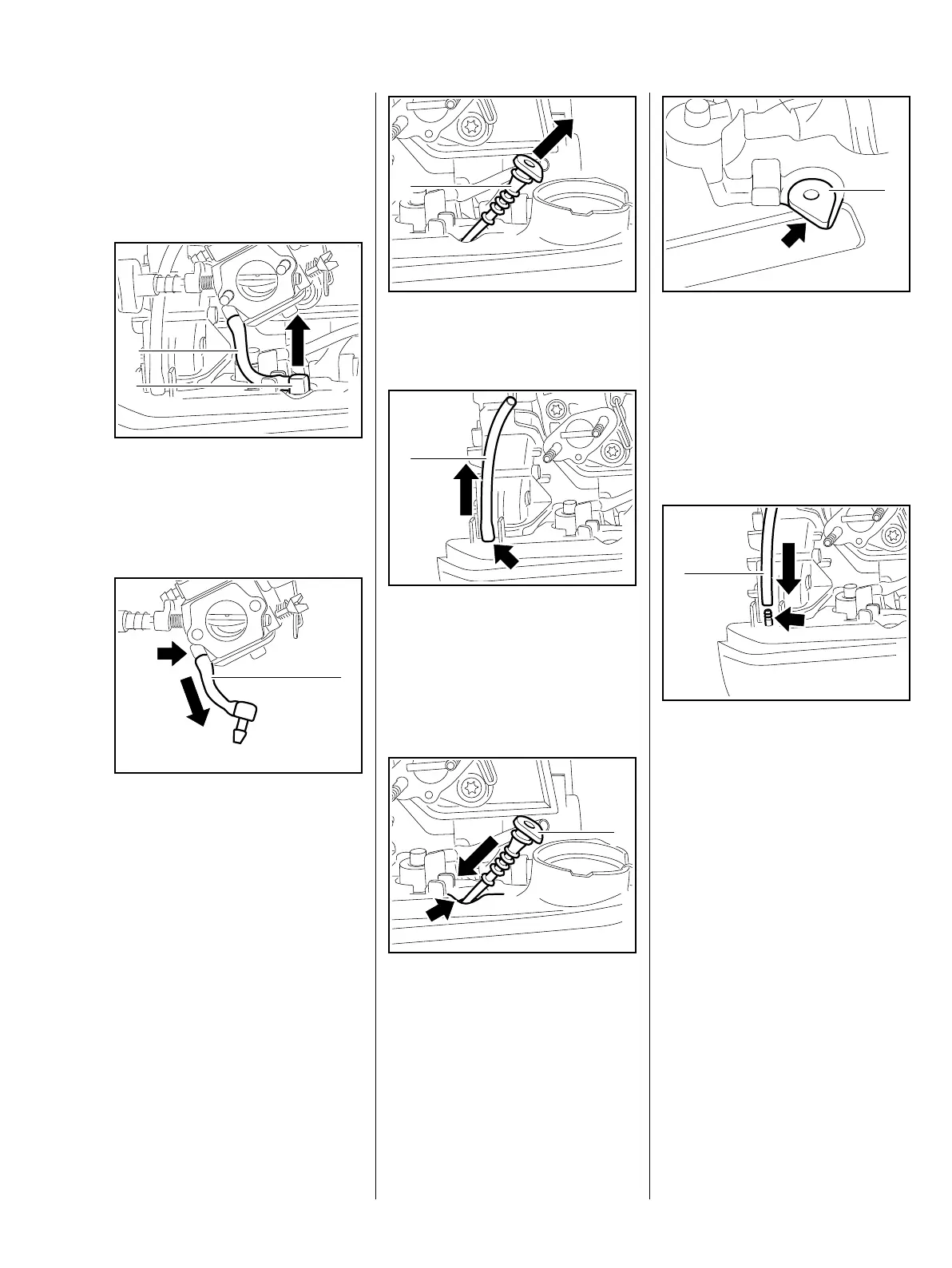

11.9.2 Fuel hose
– Open the filler cap
– Remove filter housing, b 11.2
: Pull out connector (1) with fuel
hose (2)
– Remove the carburetor, b 11.3
: Pull off fuel hose (1) with
connector at the
carburetor (arrow)
– Pull connector off of fuel hose
– Remove the pickup body,
b 11.9.1
5904RA409 TG
1
2
5904RA437 TG
1
: Pull the fuel suction hose (1) out
of the inside of the tank
: Pull off the fuel return line (1) at
the connector (arrow)
Always use new fuel hoses.
Installation
: Push fuel suction hose (1) into
hole (arrow) in fuel tank
1
5904RA439 TG
1
5904RA440 TG
1
5904RA449 TG
– Use STIHL press fluid to simplify
assembly, b 14
: Orient the fuel suction hose (1)
and press it into the hole in the
housing as far as it will go – the
flange must be flush with the
guide (arrow)
: Push the new fuel return line (1)
completely onto the
connector (arrow)
1
5904RA450 TG
1
5904RA451 TG
