119FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

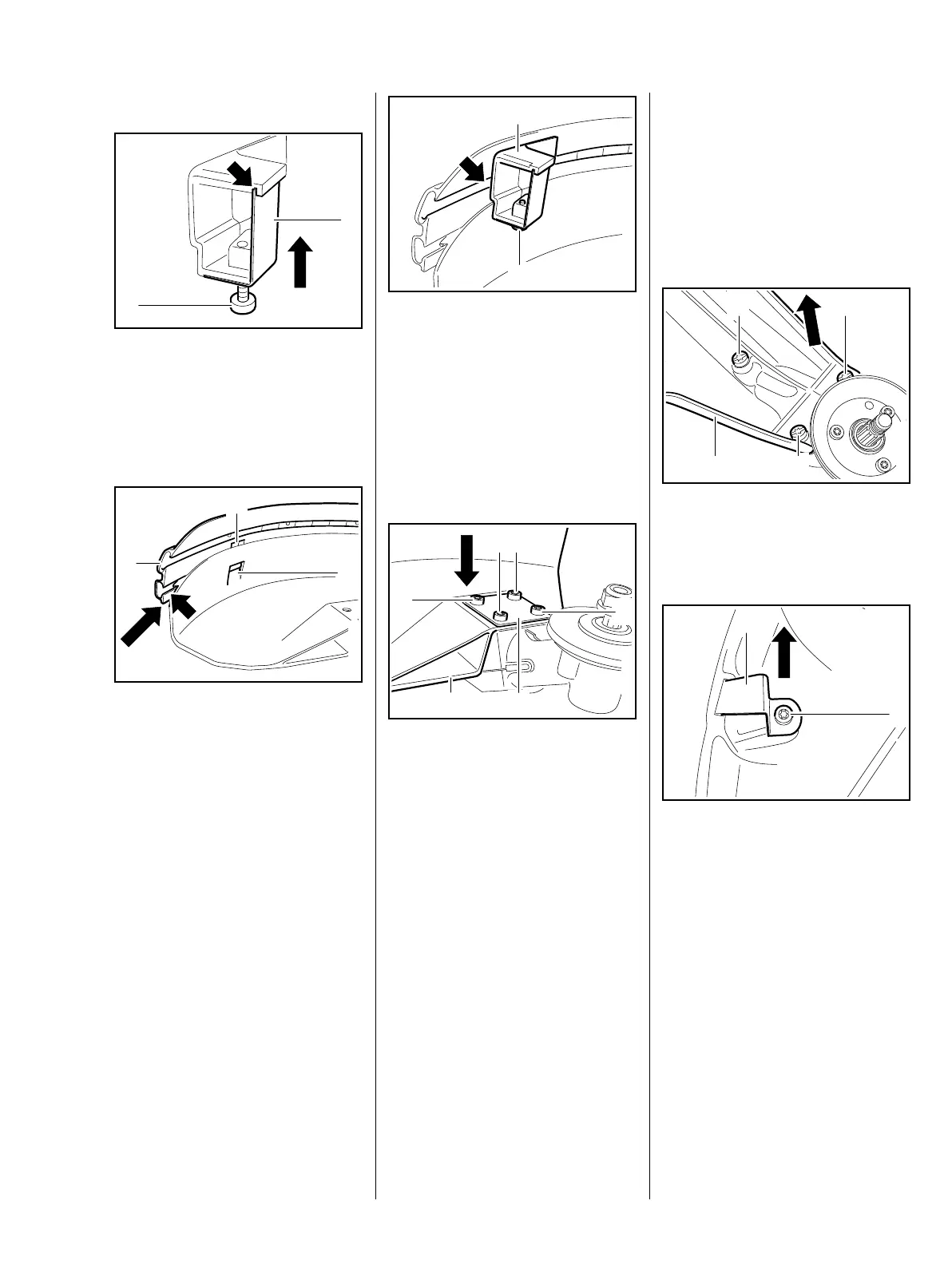

Installation
: Position line limiting blade (1) and
slide it into the mount (arrow)
: Carefully screw in the screw (2)
and tighten
: Orient the strip (1) so that the
recess (2) faces the tab (3) and
slide it onto the deflector with the
lower guide (arrow) until the
tab (3) snaps into place
5904RA491 TG
1
2
5904RA492 TG
1
2
3
: Orient the mount (1) with the line
limiting blade so that the head of
the bolt (2) faces the deflector
and slide it into upper
guide (arrow) as far as the tab
– Insert and carefully tighten down
the bolt
– Threads in plastic can strip
: Position deflector (1) and fit
plate (2)
: Insert and tighten down the
screws (3)
5904RA493 TG
1
2
5904RA494 TG
3
33
3
2
1
12.3.2 Deflector for gearbox
with 28 mm drive tube
assembly diameter
Installation and removal of the
deflector for metal tools and the
shredder deflector are the same as
described in this chapter.
: Remove screws (1)
: Remove deflector (2)
: Unscrew the screw (1)
– Slide out and examine line
limiting blade (2), resharpen or
replace if necessary
5904RA495 TG
11
12
5904RA497 TG
1
2
