Stihl FS 410 Service Manual

62 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

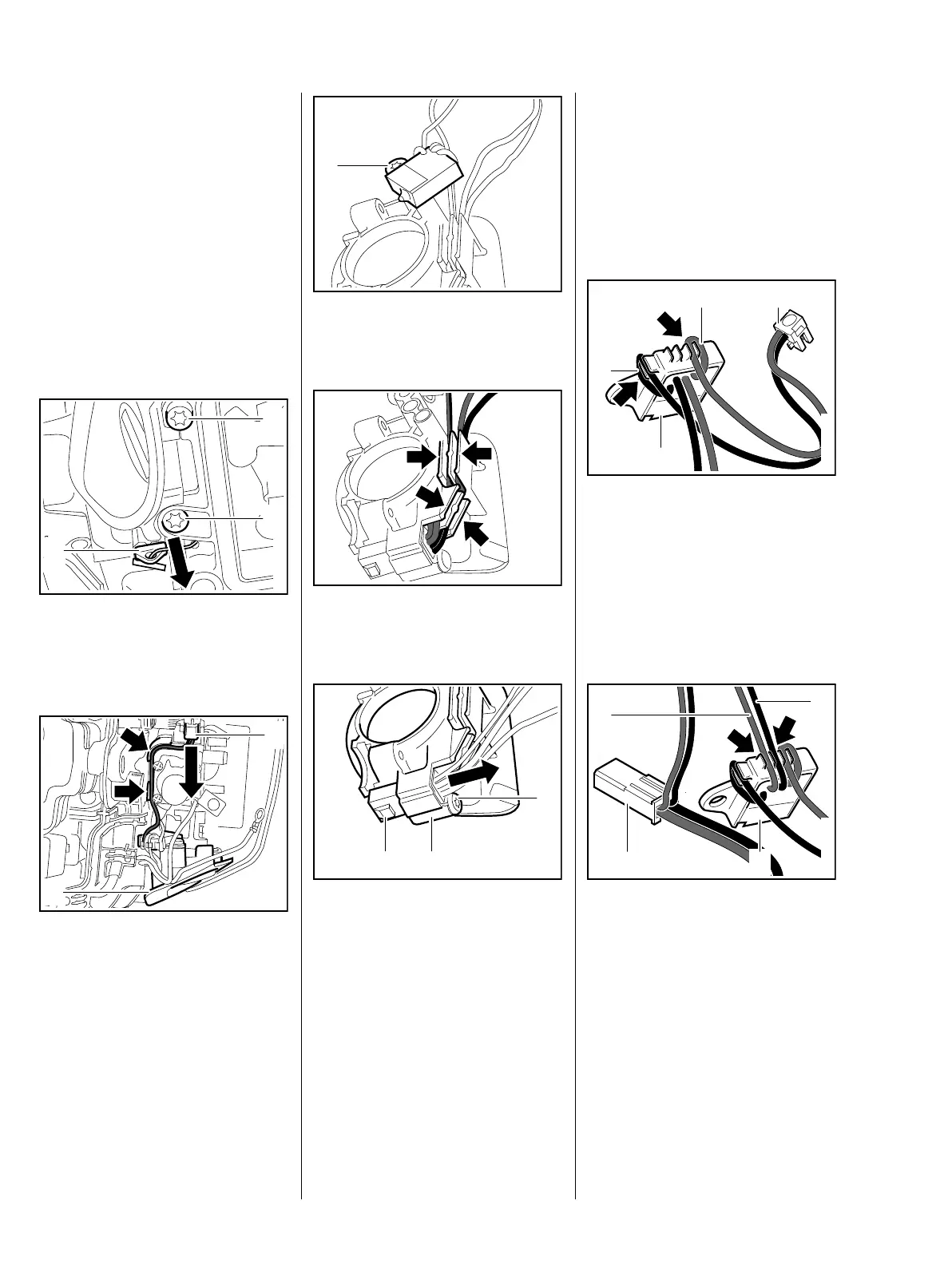

7.4 Removal and installation
– Remove shroud, b 5.4
– Remove the air filter cover,
b 11.1
– Check M-Tronic, b 7.3
– Detach M-Tronic leads from
cable holder and remove wiring
harness with throttle cable on
engine, b 6.6.3
: Remove the plug (1)
: Remove screws (2)
: Remove the plug (1)
: Pull leads out of the
guides (arrows)
: Remove bushing (2) with M-
Tronic
1
2
5904RA171 TG
2
2
1
5904RA172 TG
: Unscrew screw (1) and remove
switchgear
: Pull leads out of the
guides (arrows)
: Unscrew screw (1) and remove
diagnostic connector (2) from the
mount of the bushing (3)
5904RA173 TG
1
5904RA174 TG5904RA175 TG
2
1
3
Installation
With a new switchgear, first the thin
leads must be inserted in the guides
of the switchgear.
Leads and plug connections must
not be damaged.
Leads with plug (1) to solenoid
valve of the carburetor.
: Press red lead (2) and black
lead (3) into the guides (arrows)
of the switchgear (4) so that they
form a loop
– see illustration
Leads with diagnostic plug (1).
: Press red lead (2) and black
lead (3) completely into the
guides (arrows) of the
switchgear (4)
– see illustration
5904RA541 TG
2
3
4
1
5904RA542 TG
2
4
3
1
