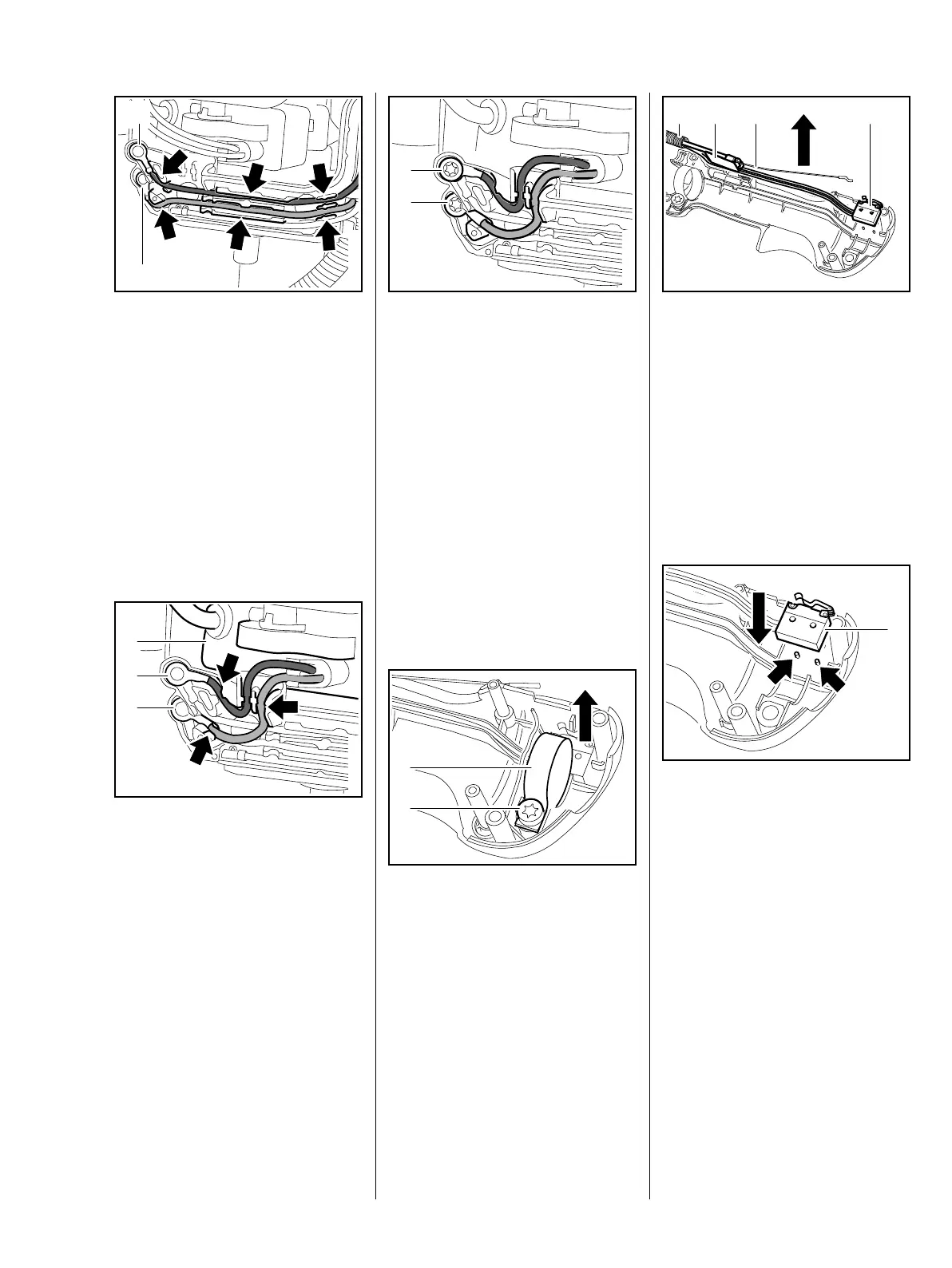

: Insert lead (red) of the M-Tronic
with the lug (1) in the mount –
crimped side must face cable
holder
: Insert lead (blue) of the short
circuit wire with the lug (2) in the
mount – crimped side must face
cable holder
: Starting at the lug, press both
leads into the guides (arrows) as
far as they will go
: Insert lead (red) of the control
unit (ignition module) (1) with the
lug (2) in the mount – crimped
side must face cable holder
: Insert lead (blue) of the control
unit (ignition module) (1) with the
lug (3) in the mount – crimped
side must face cable holder
: Starting at the lug, press both
leads into the guides (arrows) as
far as they will go
2
1
5904RA135 TG
2
5904RA136 TG
3
1
: Insert and tighten down the
screws (1)
– Reassemble remaining parts in
reverse order
6.6.4 Short circuit wire on
control handle for loop
handle,
removal and installation
– Remove throttle trigger and
trigger interlock, b 10.1.1
– Remove slide control, b 10.1.2
: Unscrew screw (1) and remove
clamp (2)
1
5904RA259 TG
1
5904RA149 TG
1
2
: Ease out microswitch (1)
: Pull out wiring harness (2) with
throttle cable (3) and slide (4)
– Remove throttle cable and short
circuit wire from engine,
without M-Tronic, b 6.6.2,
with M-Tronic, b 6.6.3
Installation
: Push the microswitch (1) onto the
pins (arrows) as far as possible
5904RA150 TG
12 4 3
4902RA216 TG
1
