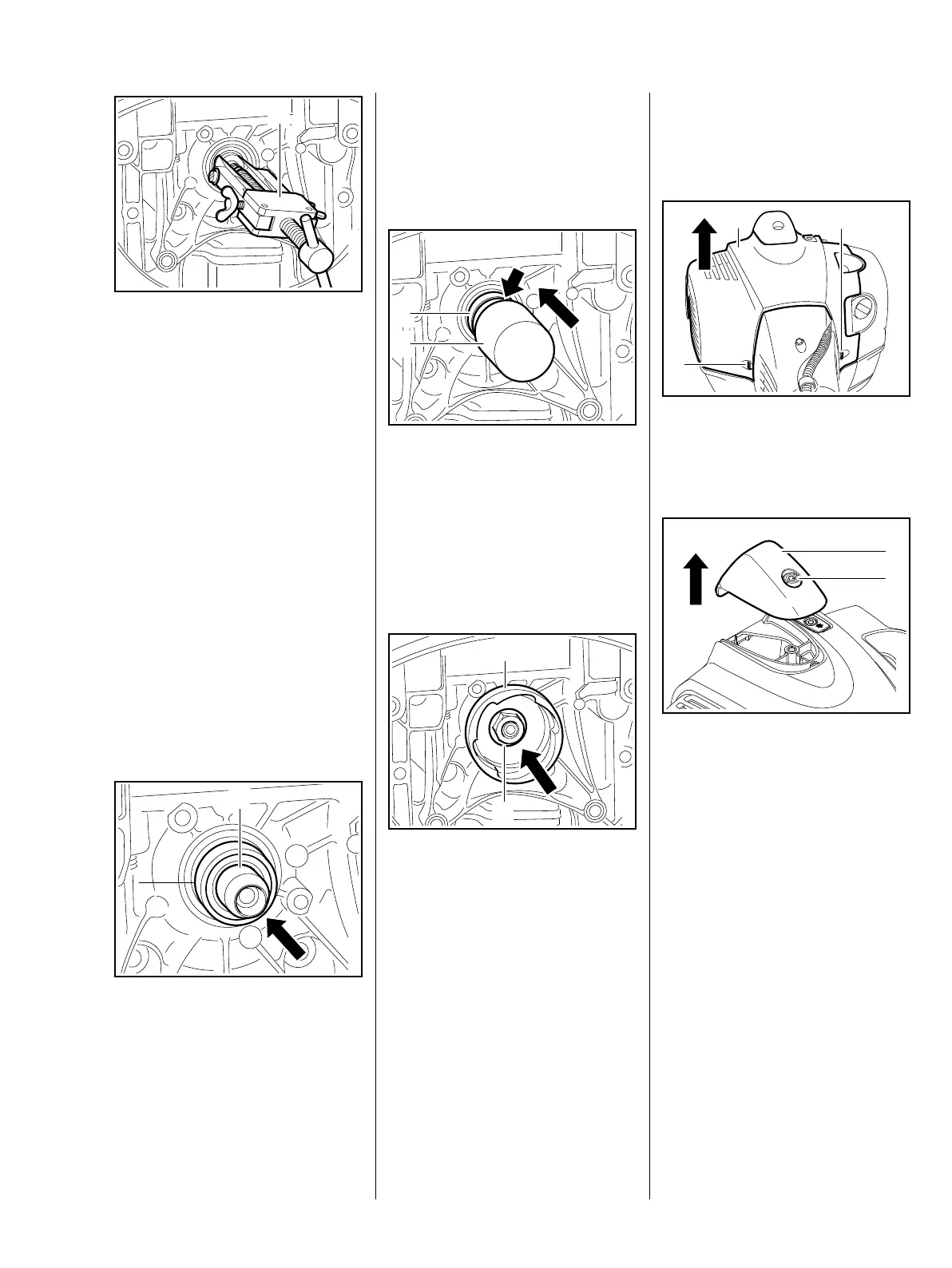

Avoid damage to the crankshaft
stub.
– Free the oil seal in its seat by
tapping it with a suitable tube or a
punch.
: Apply the puller (1)
5910 890 4400 with jaws (profile
no. 3.1) 0000 893 3706
– Clamp the puller arms
– Pull out the oil seal
Installation
– Clean the mating surface
– Grease the sealing lips of the
new oil seal, b 14
: Fit the installing sleeve (1)
4119 893 4600
5904RA049 TG
1
2
5904RA050 TG
1
: Slide the oil seal (2) over the
installing sleeve with the sealing
lip facing the crankcase
– Remove the assembly sleeve
: Orient press sleeve (1)
4147 893 2400 with the
base (arrow) facing the
crankcase and press in the oil
seal (2)
The seating face must be flat and
free from burrs.
: Slide on the starter cup (2)
: Tightly screw on nuts (1)
– Reassemble remaining parts in
reverse order
5904RA051 TG
2
1
5904RA052 TG
1
2
5.4 Shroud
– Remove starter, b 8.2
: Remove screws (1)
: Remove the shroud (2)
: Remove screw (1)
: Remove cover (2)
– Check spacer (if present) and
slide for summer/winter operation
and convert, if necessary, with a
new shroud
5904RA053 TG
1
1
2
5904RA054 TG
2
1
