Stihl RE 80 User Manual

0458-001-9621-A
42
English 3 Overview
3 Carrying handle
The carrying handle is used to carry the high-pressure
washer.
4 Locking lever
The locking lever holds the connector in the high-
pressure washer.
5 Rocker switch
The rocker switch is used to switch the high-pressure
washer on and off.
6 Holders
The holder is used for storing the spray attachment.
7 Holders
The holder is used to store the connecting cable and the
high-pressure hose.
8 Holders
The holder is used to store the spraying set.
9 Connecting cable
The connecting cable connects the high-pressure
washer to the mains plug.
10 Connector
The connector is used to connect the water hose.
11 Mains plug
The mains plug connects the connecting cable to a
socket.
12 Compartments
The compartments are used to store the supplied
nozzles.
# Rating plate with machine number

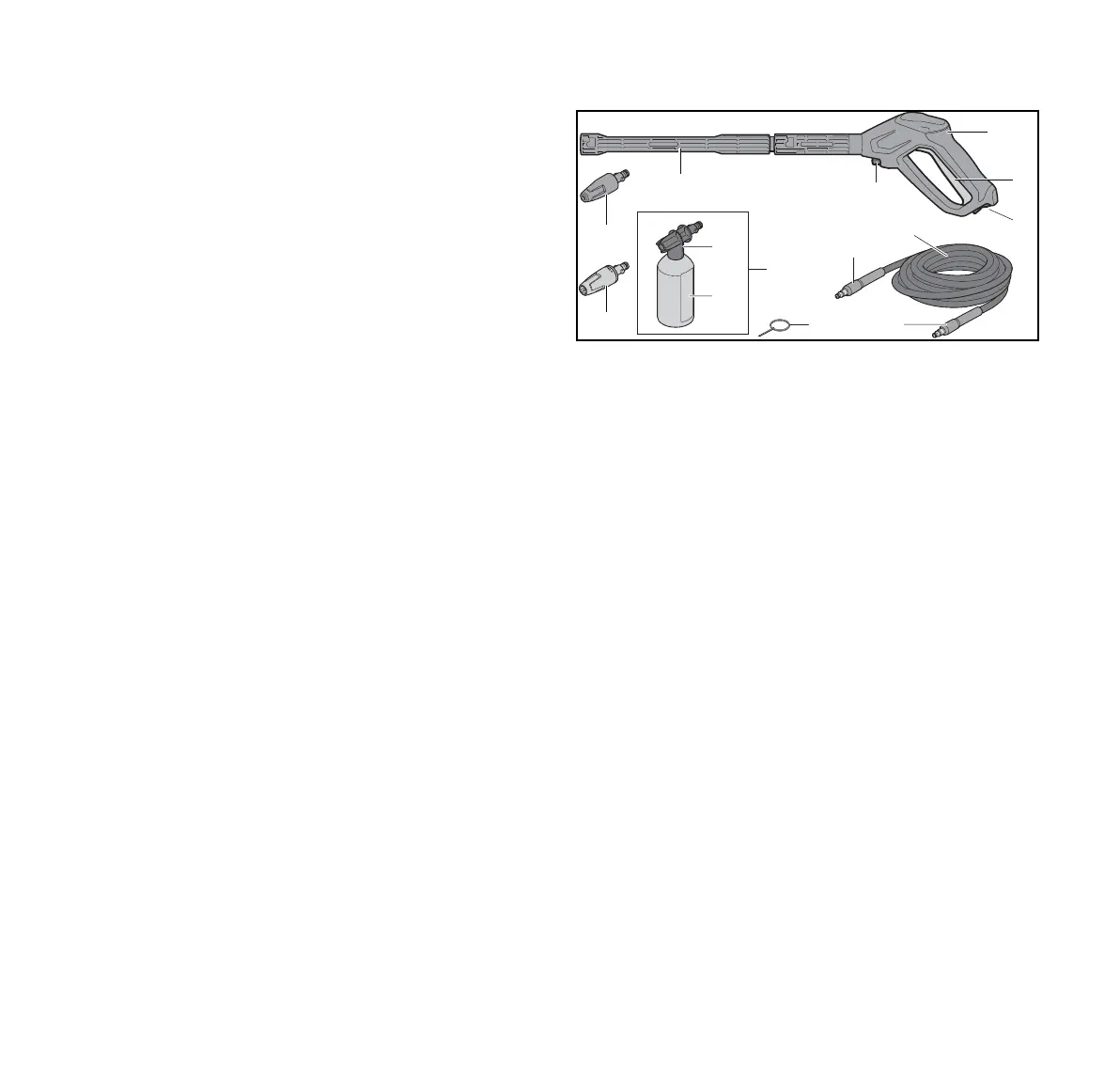

3.3 Spray attachment
1 Spray lance
The spray lance connects the spray gun to the nozzle.
2 Spray gun
The spray gun is used to hold and control the spray
attachment.
3 Trigger
The trigger opens and closes the valve in the spray gun.
The trigger starts and stops the water jet.
4 Retaining latch
The retaining latch releases the trigger.
5 Locking lever
The locking lever holds the connector in the spray gun.
6 High-pressure hose
The high-pressure hose transports the water from the
high-pressure pump to the spray gun.
7 Connector
The connector connects the high-pressure hose with the
high-pressure pump and the spray gun.
8 Cleaning pin
The cleaning pin is used to clean the nozzles.
9 Spraying set
The spraying set is used when cleaning with detergents.
10 Spray nozzle
The spray nozzle adds the detergent to the water.
8
5
7
7
4
6
3
2
1
9
12
10
11
13
0000097570_001

Stihl RE 80 Specifications

General

Brand	Stihl
Model	RE 80
Category	Floor Machine
Language	English
