English 7 Assembling the pressure washer
7.3 Attaching and removing the spray gun
7.3.1 Attaching the spray gun

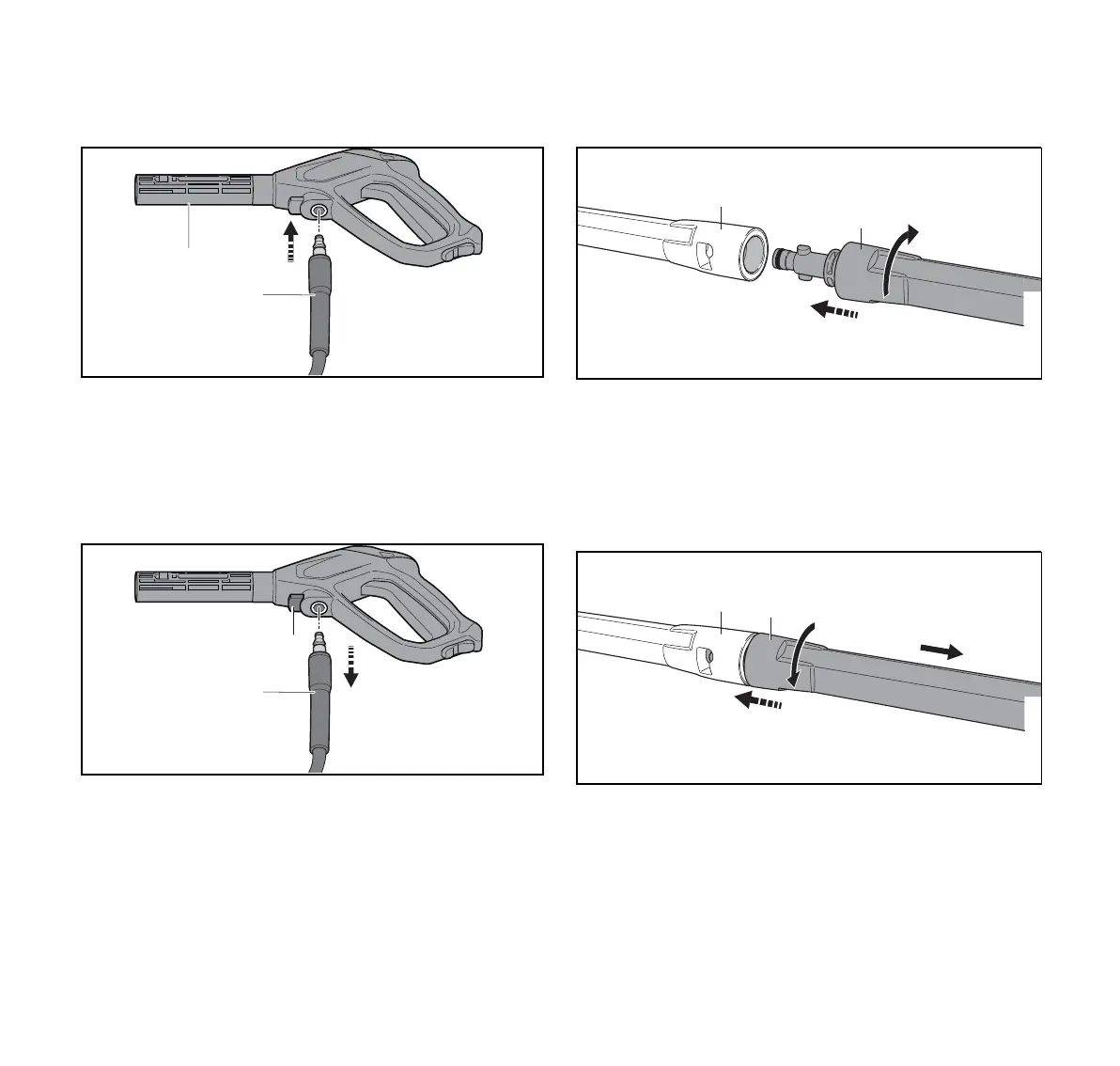

► Slide the connector (2) into the spray gun (1).
The connector (2) engages with an audible click.
► If the connector (2) cannot be easily pushed into the spray
gun (1): Grease the gasket on the connector (2) with
grease for fittings.
7.3.2 Removing the spray gun
► Press and hold the locking lever (1).
► Pull out the connector (2).
7.4 Attaching and removing the spray lance
7.4.1 Attaching the spray lance
► Push spray lance (1) into spray gun (2).
► Twist the spray lance (1) until it engages.
► If the spray lance (1) cannot be pushed easily into the
spray gun (2): Grease the gasket on the spray lance (1)
with grease for fittings.
7.4.2 Removing the spray lance
► Squeeze spray lance (1) and spray gun (2) together and
twist as far as they will go.
► Pull spray lance (1) and spray gun (2) apart.
2
1
0000097566_001
2
1
0000097567_002
0000-GXX-4350-A0
1
2
0000-GXX-4351-A0
2
1
