2 Safety Instructions
2.1 Intended Usage
The MV Station, R & D and manufactured by Sungrow, is mainly applied to
large-and-medium PV power station. The MV Station integrates the DC cabinet, module
cabinet, medium voltage transformer, monitoring & power distribution units, firefighting
system, lighting devices, and security & protection system to meet the modular design and
quick installation requirement of the large-and-medium PV power station as well as ensure
the long-time, reliable and safe grid-connected power generation.

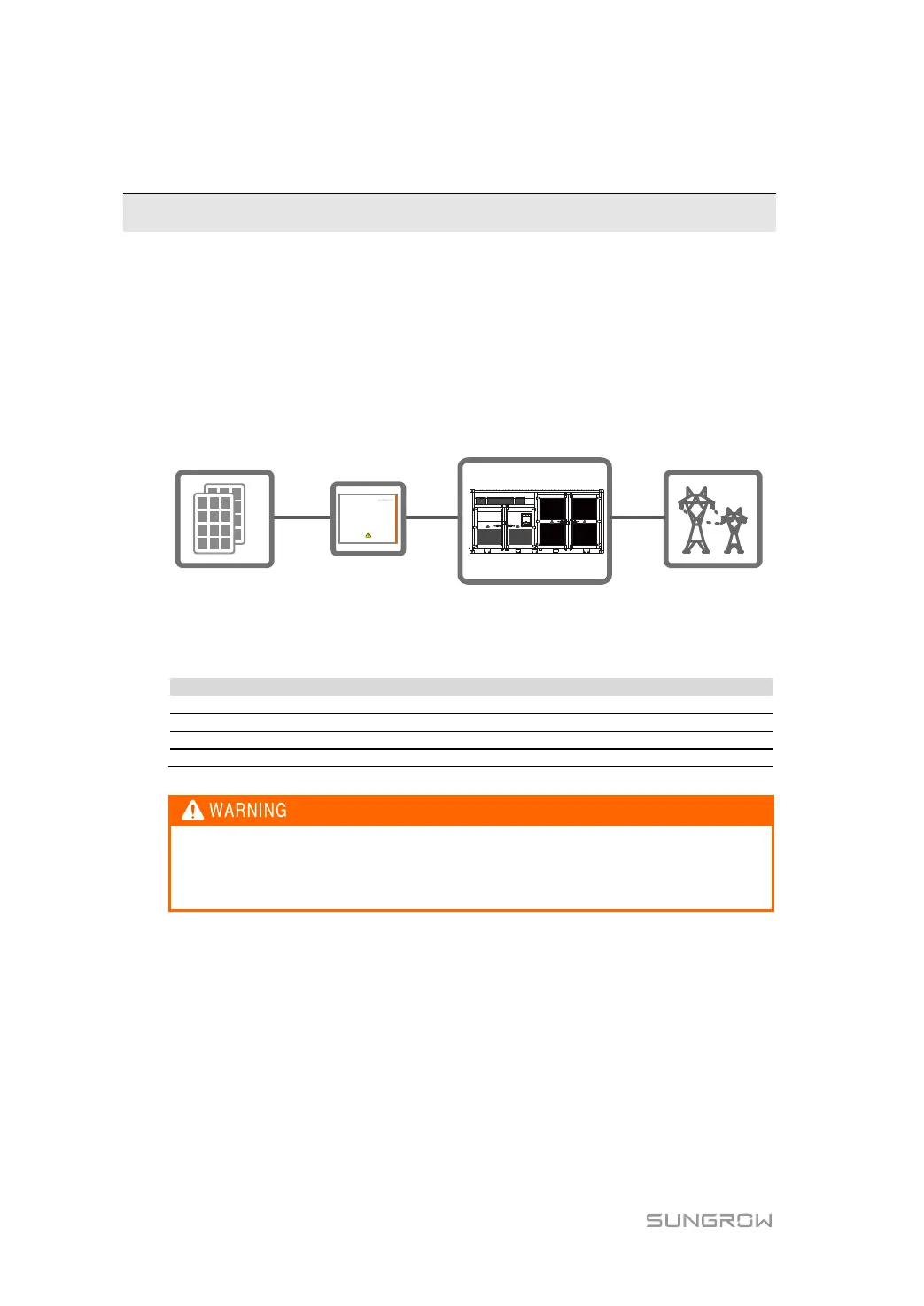

The PV power generation system with MV Station is shown in the following figure.
A B
C
D
Fig. 2-1 Application of MV Station to the PV Power System
No.
Name
A
PV Array
B
PV Array Combiner Box
C
MV Station
D
Utility Grid
Installation of the MV Station not in compliance with the description in this
manual or installation or modification of the device without authorization from
Sungrow may lead to personal injuries or device damages and may void pertinent
warranty claims from Sungrow.
2.2 Important Safety Instructions
Read the safety instructions carefully before installing the MV Station. Refer to
corresponding manuals for the safety instructions on the internal devices.
