34
M12SWA-TF User's Manual

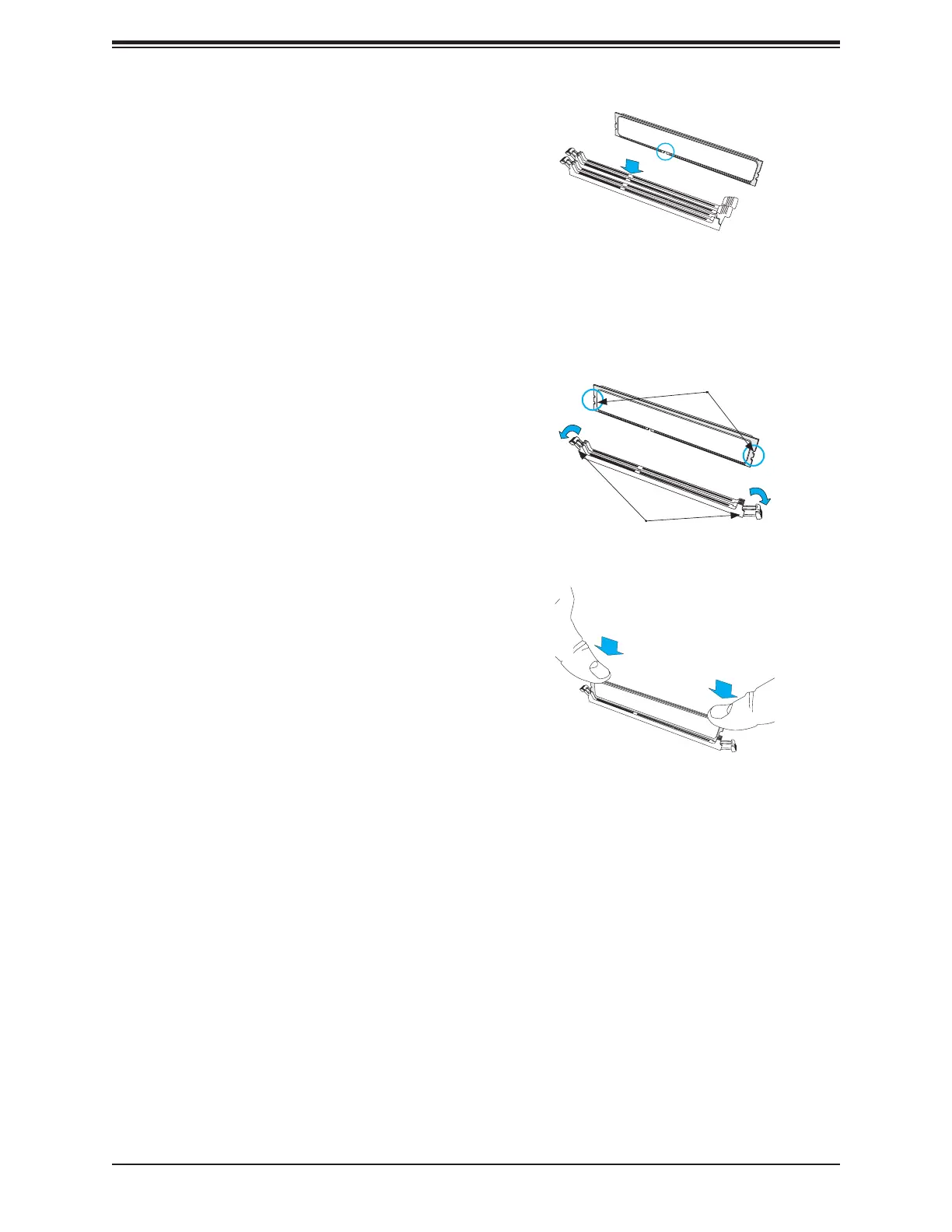

DIMM Installation
1. Insert the desired number of DIMMs into
the memory slots, starting with DIMMA2,
DIMMB2, DIMMC2, DIMMD2, DIMME2,
DIMMF2, DIMMG2, DIMMH2, then
DIMMA1, DIMMB1, DIMMC1, DIMMD1,
DIMME1, DIMMF1, DIMMG1, DIMMH1.
For best performance, please use the
memory modules of the same type and
speed.
2. Push the release tabs outwards on both
ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with
the receptive point on the memory slot.
4. Align the notches on both ends of the
module against the receptive points on
the ends of the slot.
5. Press both ends of the module straight
down into the slot until the module
snaps into place.
6. Press the release tabs to the lock
positions to secure the DIMM module
into the slot.
DIMM Removal
Press both release tabs on the ends of the
DIMM module to unlock it. Once the DIMM
module is loosened, remove it from the
memory slot.
Release Tabs
Notches
Press both ends
straight down into
the memory slot.
To Next Page
